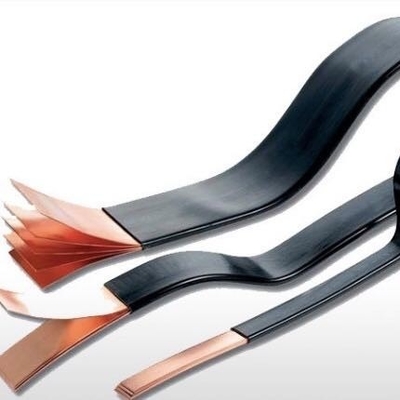

Black Busbar Heat Shrink Sleeve 70mm Ratio 2X PE , 10kv Insulated Heat Shrink Tubing
| Place of Origin | China |
|---|---|
| Brand Name | Long |
| Certification | ISO9001 |
| Model Number | 2X |
| Minimum Order Quantity | 1meter |
| Price | Negotiable |
| Packaging Details | Carton/pallet |
| Delivery Time | 1-10days |
| Payment Terms | T/T, Western Union, MoneyGram, D/P, D/A, L/C |
| Supply Ability | 400000 per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Busbar Tube | Material | PE |
|---|---|---|---|
| Colour | Black | Diameter | 70mm |
| Function | Protect | Shrink Ratio | 2:1 |
| Working Temperature | -55℃ | Complete Shrink Temperature | 120℃ |
| Highlight | Black Busbar Heat Shrink Sleeve,70mm Busbar Heat Shrink Sleeve,10kv Insulated Heat Shrink Tubing |
||
Product Description
Black Heat Shrink Busbar Tube Shirnk Ratio 2X PE Insulating Waterproof Protect
• Manufactured from cross linked polyolefin
• Used to offer insulation protection for busbar in switchgear and substation
• Protects against short circuit and electrical leakage cause by small animals
• Reduces busbar clearance requirements
• RoHS compliant
• Shrink temperature: start at 70°C, and fully recovered at 125°C
• Color: yellow, red, green, blue, black
Technical Data
| Property | Test Method | Standard Value |
| Tensile Strength | ASTM-D-638 | N8MPa |
| Elongation at Break | ASTM-D-638 | N300% |
| Tensile Strength after Aging | ASTM-D-638 | >6MPa(130r,168hrs) |
| Elongation at Break after Aging | ASTM-D-638 | "230% (130^,168 hrs) |
| Hardness (Shore A) | ISO 868 | W90 |
| Dielectric Strength | IEC 60243 | N25kV/mm |
| Volume Resistivity | IEC 60093 | ml x 1014Q • cm |
| Dielectric Constant | IEC 60250 | W3.0 |
| Longitudinal Shrinkage | ASTM-D-2671 | W10% |
| Eccentricity | ASTM-D-2671 | W30%(10kV); W50%(35kV) |
| WaterAbsorption | ISO 62 | W0.5% |
| Flammability (Oxygen Index) | ISO 4589 | N28 |
