1.5mm 45mm Insulation Resilient Heat Shrink Tube Waterproof Busbar Insulation Tubing
| Place of Origin | China |
|---|---|
| Brand Name | Long |
| Certification | ISO |
| Model Number | S-XL |
| Minimum Order Quantity | 100pieces |
| Packaging Details | Carton |
| Delivery Time | 1-9days |
| Payment Terms | T/T, Western Union, MoneyGram, D/P, D/A, L/C |
| Supply Ability | 100000pieces per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Tensile Strength | >12MPA | Color | Black,Red,Blue,White,Yellow |
|---|---|---|---|
| Product Name | Environment -Friendly Heat Shrinkable Tubing | Feature | High Temperature Resistance,waterproof,electric Conduction,Anti-slide |
| Usage | Sport Equipment Handle,fishing Gear,Wire And Cable Protection,etc. | Operating Temperature | -55℃~105℃ |
| Size | 3.2-130mm,ID15mm~50mm | Wall Thickness | 0.1mm (before Shrinkage) |
| Highlight | 1.5mm insulation resilient heat shrink tube,45mm insulation resilient heat shrink tube,waterproof busbar insulation tubing |
||
Product Description

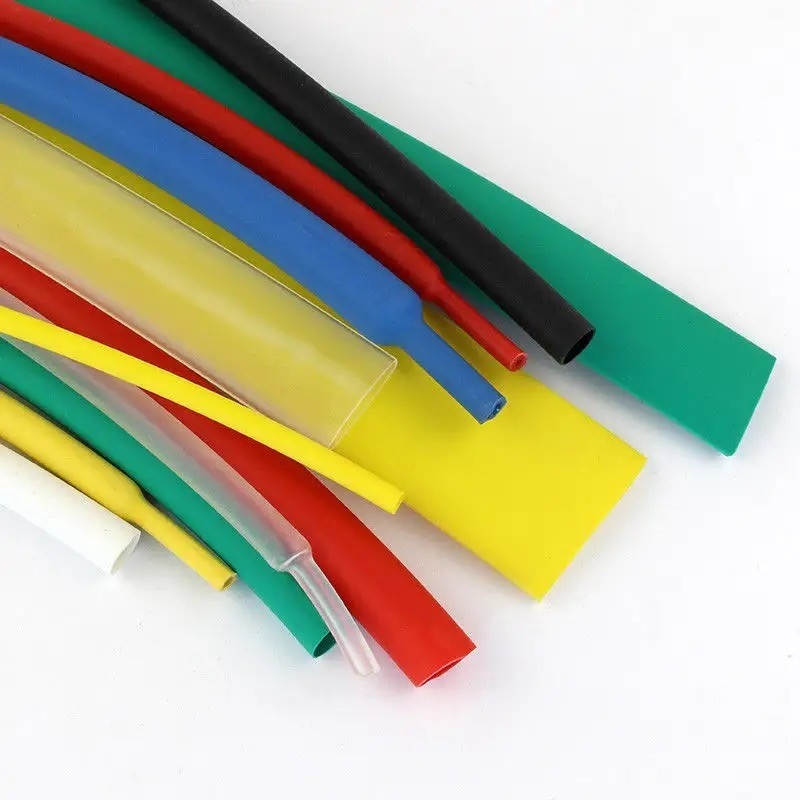

Polyolefin Shrink Tubing Thin Wall Without Glue Heat Shrink Insulation Tube
Product Features
Material:Made of Polyolefin, Shrinkage Ratio:2:1 (will shrink to 1/2 its supplied diameter)
Suitable for electrical insulation, wire bundling, colour coding, mechanical protection, wire/cable joints and daily repairs etc
Comes with 560pcs heat shrink tube assorted in plastic box, 5 colors( Yellow, Blue, Black, Green, Red), 12 Specifications ,
satisfied for your different need
Length: 45mm, Internal Diameter:1.5mm/2mm/3mm/4mm/5mm/6mm/8mm/10mm,Shrinking ratio: 2:1
Package Included: 1 x 560PCS(12 sizes) 2:1 Heat Shrink Tubing
Dimensions
| Size | Expanded | Recovered |
Standard Package M/Spool |
Round/Flat |
||
| Inch | mm | Internal Diameter (mm) | Internal Diameter (mm) | Wall Thickness (mm) | ||
| 1/8 | 3.2 | 3.2 | 1.6 | 0.75±0.20 | 200 | Round |
| 3/16 | 4.8 | 4.8 | 2.4 | 0.89±0.20 | 100 | Round |
| 1/4 | 6.4 | 6.4 | 3.2 | 0.89±0.20 | 100 | Round |
| 3/8 | 9.5 | 9.5 | 4.8 | 0.89±0.20 | 50 | Round |
| 1/ 2 | 12.7 | 12.7 | 6.4 | 0.89±0.20 | 25 | Round |
| 3/4 | 19.0 | 19.0 | 9.5 | 1.07±0.30 | 25 | Round |
| 1 | 25.4 | 25.4 | 12.7 | 1.25±0.30 | 25 | Round |
| 1-1/ 2 | 38.1 | 38.1 | 19.0 | 1.40±0.30 | 25 | Round |
| 2 | 50.8 | 51.0 | 25.4 | 1.65±0.30 | 25 | Round |
| Property | Test Method | Stantard | Typical Performance |
| Tensile Strengtn(MPa) | ASTM D2671 | ≥8.5 | 10.0 |
| Elongation(%) | ASTM D2671 | ≥250 | 300 |
| Tensile Strengtn after aging (MPa) | UL224 158℃X168hr | ≥7.3 | 8.5 |
| Elongation after aging(%) | UL224 158℃X168hr | ≥200 | 250 |
| Dieletric strength(kv/mm) | IEC243 | ≥15 | 17.5 |
| Volume resistivity(Ω.cm) | ASTM D876 | ≥1X109 | 2.5X109 |
| Flammability | VW-1 | Pass | Pass |
Changzhou Longchuang Insulating Material Co., Ltd is a high-tech enterprise with headquarter in Changzhou, China. Founded in 2010,The Long brand has always been a guarantee for the supply of heat shrink tubing products and services. From product design and raw materials purchasing to final inspection and testing, Longchuang has a perfect quality assurance program covering the entire production process. So far, we have been successfully certified by ISO 9001, ISO 14001, ISO/TS 16949, UL, CSA, 3C, etc.
At Longchuang, we know this can be done.
FAQ
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
