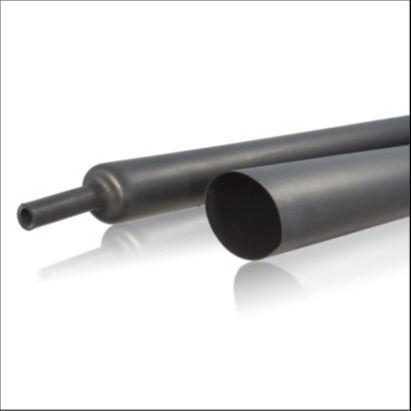

1.5 To 3.2mm Neoprene Heat Shrink Tubing Single Wall

1.5 To 3.2mm Neoprene Heat Shrink Tubing Single Wall

Brand Name: Long
Model Number: 3.2mm
MOQ: 1m
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 400000meters per day
Detail Information
Place of Origin:
China
Certification:
ISO
Made Of:
Cross Linked Chlorinated Polyolefin
Resistant To:
Abrasion And Physical Abuse While Providing Flexibility And Strain Relief
Good Flexibility:
At Low Temperature
Performance:
Meets Requirements Of SAE-AMS-DTL-23053/1.
Widely Used:
For Insulation, Strain Relief, And Abrasion Protection On Cable Harnesses And Wire Bundles In The Military And Aerospace Industries.Especially Suitable For Applications Requiring Exposure To Fluids And Solvents At Elevated Temperatures.
Certificate:
RoHS Compliant
Operation Temperature:
-45°C To 105°C
Packaging Details:
Roll/Carton
Supply Ability:
400000meters per day
Highlight:

3.2mm neoprene heat shrink tubing

,

1.5mm neoprene heat shrink tubing

,

Single Wall 3.2 mm heat shrink

Product Description

3.2mm Shrink To 1.5mm Black Heat Shrink Neoprene Tube Singel Wall



Heat Shrink Neoprene Tube





Dimensions





Product No. As Splied/mm After Recovered/mm
  Inner diamter Inner diamter Wall thickness **
WRSLD-3.2/1.5 N3.2 W1.5 0.7±0.2
WRSLD-4.8/2.5 N4.8 W2.5 0.8±0.2
WRSLD-6.4/3.4 N6.4 W3.5 0.9±0.2
WRSLD-9.5/5.4 N9.5 W5.4 1.0±0.2
WRSLD-12.7/7.1 312.7 <7.1 1.2±0.2
WRSLD-15.8/8.7 315.8 W8.7 1.3±0.3
WRSLD-19.1/10.5 >19.1 W10.5 1.4±0.3
WRSLD-22.2/12.5 &22.2 W12.5 1.7±0.3
WRSLD-25.4/14.5 >25.4 W14.5 1.8±0.3
WRSLD-31.8/18.0 M31.8 W18.Q 2.2±0.3
WRSLD-38.1/21.5 >38.1 W21.5 2.4±0.3



Features



•  Made of cross linked chlorinated polyolefin



•  Resistant to most fluids and solvents, including aviation and ground-vehicle fuels, lubricating oil, and hydraulicfluids



•  Good flexibility at low temperature



•  Resistant to abrasion and physical abuse while providing flexibility and strain relief



•  Performance meets requirements of SAE-AMS-DTL-23053/1.



•  Widely used for insulation, strain relief, and abrasion protection on cable harnesses and wire bundles in the military and aerospace industries.Especially suitable for applications requiring exposure to fluids and solvents at elevated temperatures.



•  RoHS compliant



•  Operation temperature: -45°C to 105°C



•  Shrink temperature: start at 90°C, and fully recovered at 130°C



•  Standard color: Black.

**Wall thickness will be less when shrinkage is restricted.



Technical Data





I Property Test Method Typical Performance I
Tensile strength(MPa) ASTM D412 ^10.3
Elongation at Break (%) ASTM D412 >225%
Tensile stress at 200% elongation (MPa) ASTM D412 <10.3
Tensile Strength After Aging
(120°C,168hrs)(%) SAE-AMS-DTL-23053 N8.3
Elongation at Break after Aging
(120°C,168hrs)(%) SAE-AMS-DTL-23053 >175%
Dielectric Strength (kV/mm) ASTM D 2671 >11.8
Volume resistivity (Q-cm) ASTM D 876 >1x1011
Flammability(Self extinguishing ASTM D2671,
15 seconds; 3 inches) Procedure A
Fungus resistance ASTMG21 No growth
Low temperature flexibility ・70°C,4 hrs No cracking
