10kv Heat Shrinkable Dry Type Cable Termination Insulated Polymeric 3 Core 6kM

Place of Origin	China
Brand Name	Long
Certification	ISO9001
Model Number	1 core, 2 core, 3 core
Minimum Order Quantity	10pieces
Packaging Details	Carton
Delivery Time	1-9days
Payment Terms	T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability	100000pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Material	PE	Colour	Red
KV	1KV,6kV, 10kV, 20kV, 30kV And 35kV	Feature	Low Longitudinal Shrinkage
Certificate	ROHS	Cross Section (mm2)	25-50
Nominal Voltage U0/u(um)	3.6/6(7.2)kV	Dimensions(mm)	105
Highlight	10kv heat shrinkable dry type cable termination , Insulated heat shrinkable dry type cable termination , Polymeric heat shrink cable termination

Leave a Message

Product Description

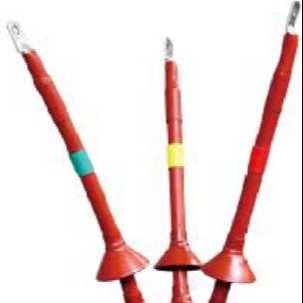

Indoor Termination For Screened 3-Core Polymeric Insulated Cables 6kM 10kV

The indoor termination is designed for screened three core polymeric insulated MV cables up to 35kV.

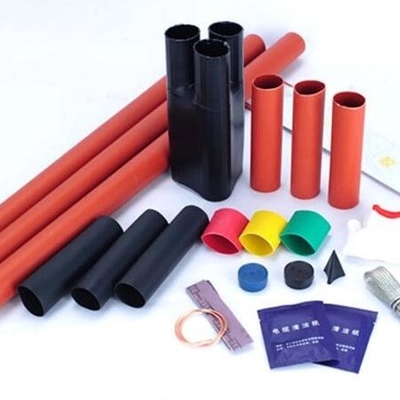

Yellow stress relief mastic is laid around the end of the screen cut. Stress control tube, together with stress relief mastic, is used to smooth out the electrical field at the cable screen end. All phase cores are covered with anti-tracking insulation tube and sealing tube. Antitracking rain sheds increase surface creepage distance to ensure safety. The crutch area is sealed and protected with an adhesive- coated breakout which is installed over the cores and the end of oversheath. In case of 6kV and 10kV cables, a 3-core rain shed is supplied in the kit.

Nominal voltage u₀/u(u_m)	Cross section (mm²)	Kit No.			No. of rain sheds
			Dimensions(mm)
			L I	D
	25-50	6kVRSNY-3/1		105
	70-120	6kVRSNY-3/2		105
3.6/6(7.2)kV	150-240	6kVRSNY-3/3	750	105	0
	300-400	6kVRSNY-3/4		105
	500-630	6kVRSNY-3/5		140
	25-50	10kVRSNY-3/1		105
6/10(12)kV	70-120	10kVRSNY-3/2		105
6.35/11(12)kV	150-240	10kVRSNY-3/3	750	105	0
8.7/15(17.5)kV	300-400	10kVRSNY-3/4		105
	500-630	10kVRSNY-3/5		140
	35-50	20kVRSNY-3/1		105
	70-120	20kVRSNY-3/2		105
12/20(24)kV	150-240	20kVRSNY-3/3	900	105	6
12.7/22(24)kV	300-400	20kVRSNY-3/4		140
	500-630	20kVRSNY-3/5		140

18/30(36)kV 19/33(36)kV	35-50 70-120 150-240 300-400 500-630	30kVRSNY 30kVRSNY 30kVRSNY 30kVRSNY 30kVRSNY	3/1 3/2 3/3 3/4 3/5	1100	105 105 140 140 140	12
	50	35kVRSNY	3/1		140
20.8/36(42)kV 26/35(42)kV	70-120	35kVRSNY	3/2		140
	150-240	35kVRSNY	3/3	1100	140	12
	300-400	35kVRSNY	3/4		140
	500-630	35kVRSNY	3/5		140
