PVDF Teflon Heat Shrink Tubing Thin Wall PTFE Products Transparent

PVDF Teflon Heat Shrink Tubing Thin Wall PTFE Products Transparent

Brand Name: Long
Model Number: 3/16mm
MOQ: 1m
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 400000meters per day
Detail Information
Place of Origin:
China
Certification:
ISO
Material:
PVDF
Colour:
Clear
Shrink Ratio:
2:1
Featire:
Long Term Resistance To Diesel, Hydraulic Fluids And Chemicals
Long Term Resistance To:
Hydraulic Fluids And Chemicals
Flame Or Not:
Flame Ratardant
High Abrasion:
And Cut Resistance
Shrink Temperature:
175℃
Packaging Details:
Roll/Carton
Supply Ability:
400000meters per day
Highlight:

Thin Wall PTFE Products

,

Transparent PTFE Products

,

PVDF Teflon Heat Shrink Tubing

Product Description

Thin Wall PVDF Heat Shrink Tubing Transparent Thin Wall PVDF Heat Shrink Tubing



THIN WALL PVDF Heat Shrink Tubing

Transparent, thin wall PVDF (polyvinylidene fluoride) heat shrink tubing ideal for electronic, automotive and military applications requiring protection and see-through inspection in aggressive environments



Features



●  2:1 shrink ratio

●  Long term resistance to diesel, hydraulic fluids and chemicals

●  Semi-rigid

●  Flame ratardant

●  High abrasion and cut resistance

●  Continuous operating temperature:-55℃- 175℃

●  Shrink temperature:175℃

●  Meets 23053/ 18



Dimensions





Size Expanded Recovered

Standard Package

M/Spool



Round/Flat

Inch mm Internal Diameter (mm) Internal Diameter (mm) Wall Thickness (mm)
3/64 1.2 1.2 0.6 0.25±0.05 200 Round
1/16 1.6 1.6 0.8 0.25±0.05 200 Round
3/32 2.4 2.4 1.2 0.25±0.05 200 Round
1/8 3.2 3.2 1.6 0.25±0.05 200 Round
3/16 4.8 4.8 2.4 0.25±0.05 100 Round
1/4 6.4 6.4 3.2 0.30±0.05 100 Round
3/8 9.5 9.5 4.8 0.30±0.05 50 Round
1/ 2 12.7 12.7 6.4 0.30±0.05 50 Round
3/4 19.1 19.1 9.5 0.42±0.05 50 Round
1 25.4 25.4 12.7 0.50±0.05 50 Round
1-1/ 2 38.1 38.1 19.1 0.50±0.05 50 Round



Property Test Method Typical Performance
Tensile Strengtn(MPa) ASTM D 2671 ≥30
Elongation(%) ASTM D 2671 ≥150
Tensile 250℃X168hr ≥100
Elongation No cracking -55℃X 4h
Flammability ASTM D 2671 VW-1
Volume resistivity(Ω.cm) IEC 60093 ≥1013

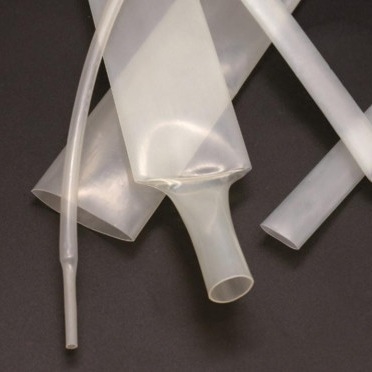

PVDF Teflon Heat Shrink Tubing Thin Wall PTFE Products Transparent 0







FAQ

Professional Production Quality is Reliable

Q1 . Which certifications or test reports do you have?

A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?

A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.

For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?

A : We have a lot of products in stock. We can send the stock products in 3 work days.

If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?

A : Yes. We can provide samples.

Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?

A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
