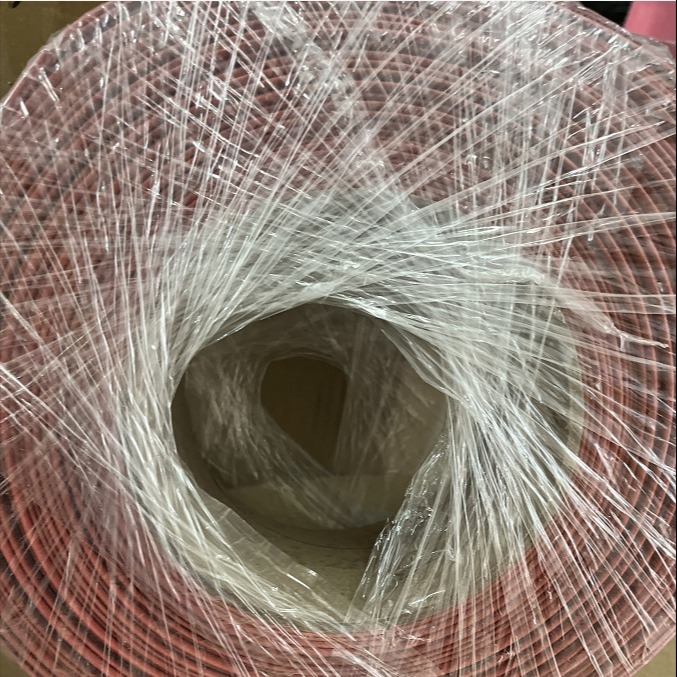

1KV 60mm Busbar Tube ROHS 2X Ratio Red Heat Shrink Tubing

  • 1KV 60mm Busbar Tube ROHS 2X Ratio Red Heat Shrink Tubing
  • 1KV 60mm Busbar Tube ROHS 2X Ratio Red Heat Shrink Tubing
Place of Origin China
Brand Name Long
Certification ISO
Model Number 60mm-Red
Minimum Order Quantity 1m
Packaging Details Roll/Carton
Delivery Time 1-9days
Payment Terms T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability 400000meters per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 1KV Color Red
Material Manufactured From Cross-linked Polyolefin Used To Offer Insulation Protection For Busbar In Switchgear And Substation
Protects Against Short Circuit And Electrical Leakage Cause By Small Animals Reduces Busbar Clearance Requirements
Shrink Temperature Start At 70X5 Fully Recovered At 125X5
Highlight

60mm Busbar Tube

,

1kv Busbar Tube

,

2x ratio Red Heat Shrink Tubing
Leave a Message
Product Description

1KV 60mm Red Heat Shrink Busbar Tube ROHS Certificate Shrink Ratio 2X





Heat Shrink Busbar Tube





Features





• Manufactured from cross-linked polyolefin





•  Used to offer insulation protection for busbar in switchgear and substation



•  Protects against short circuit and electrical leakage cause by small animals



•  Reduces busbar clearance requirements



•  RoHS compliant

•  Shrink temperature: start at 70X5. and fully recovered at 125X5



•  Color: yellow, red, green, blue, black





Dimensions



IkVWMPG Series



  Busbar Width As Supplied/mm After Recovered/mm Standard Package
1 1 UU U 11 Vi (square)/mm ID (Min) Wall Thickness ID (Max) Wall Thickness (m/roll)
IkVWMPG 30 30 31.5±1.0 0.50±0.15 ♦ 15 0.95±0.15 50
IkVWMPG 35 35 36.5±1.5 0.50±0.15 <18 1.00±0.15 50
IkVWMPG 40 40 41.511.5 0.55±0.15 W20 1.00±0.15 25
IkVWMPG 45 45 41.5±1.5 0.55±0.15 W23 1.00±0.15 25
IkVWMPG 50 50 51.0±2.0 0.55±0.15 ♦ 25 1.00±0.15 25
IkVWMPG 60 60 60.0±3.0 0.60±0.20 <30 1.30±0.20 25
IkVWMPG 65* 65 65.0±3.0 0.60+0.20 W33 1.30±0.20 25
IkVWMPG 70 70 70.0±3.0 0.65±0.20 W35 1.30±0.20 25
IkVWMPG 75* 75 75.0±3.0 0.65±0.20 W38 1.30±0.20 25
IkVWMPG 80 80/100 80.013.0 0.65±0.20 W40 1.46±0.20 25
IkVWMPG 85* 80/100 85.0±3.0 0.65±0.20 W43 1.46±0.20 25
IkVWMPG 90 100 90.0±4.0 0.65±0.20 <45 1.46±0.20 25
IkVWMPG 100 100/120 100.0±4.0 0.65±0.20 <50 1.46±0.20 25
IkVWMPG 120 150 120.0±4.0 0.65±0.20 W60 1.46±0.20 25
IkVWMPG 150 180 150.0+4.0 0.65+0.20 W75 1.46±0.20 25
IkVWMPG 180 MAX 180.0±4.0 0.65±0.20 <90 1.46±0.20 25
1kVWMPG210* MAX 210.0±4.0 0.65±0.20 W105 1.46±0.20 25
IkVWMPG 230* MAX 230.0±4.0 0.65±0.20 W115 1.46±0.20 25
IkVWMPG 250* MAX 250.0±5.0 0.65±0.20 W125 1.46±0.20 25
IkVWMPG 300* MAX 300.0±5.0 0.65±0.20 W150 1.46±0.20 25

1KV 60mm Busbar Tube ROHS 2X Ratio Red Heat Shrink Tubing 0



FAQ

Professional Production Quality is Reliable

Q1 . Which certifications or test reports do you have?

A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?

A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.

For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?

A : We have a lot of products in stock. We can send the stock products in 3 work days.

If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?

A : Yes. We can provide samples.

Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?

A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
