Clear 0.8mm Thermal Shrink Tube , AWG 30 Teflon PTFE Heat Shrink Tubing

Clear 0.8mm Thermal Shrink Tube , AWG 30 Teflon PTFE Heat Shrink Tubing

Brand Name:	Long
Model Number:	AWG30-0.8mm
MOQ:	1m
Payment Terms:	T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability:	400000meters per day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Chemical:

Chemical Insert

Feature:

High Temperature Resistance

Continuous Operating:

Continuous Operating

Temperature:

-65°C-200°C

Corrosion Resistance:

(acid/alkali Resistance, Chemical Reagents Oil-proof)

High Pressure:

High Pressure Resistance

Standard:

UL224 VW-1 C-UL CSA22.20FT

ULfile Number:

E203950

Packaging Details:

Roll/Carton

Supply Ability:

400000meters per day

Highlight:

clear thermal shrink tube

0.8mm thermal shrink tube

AWG 30 Teflon PTFE Heat Shrink Tubing

Product Description

AWG 30 Clear PTFE High Temperature Resistance PTFE Teflon Tubing

Specially designed for protecting applications in extreme electrical

Chemical and thermal environment.

Features

• Chemical insert

• High temperature resistance

• Continuous operating

• Temperature:-65°C-200°C

• Corrosion resistance(acid/alkali resistance, chemical reagents oil-proof)

• High pressure resistance

• Standard: UL224 VW-1 C-UL CSA22.20FT

• ULfile number: E203950

Dimensions

Size AWG	Expanded	External Diameter			Standard Package M/Spool
	Internal Diameter mm	(S)	(T)	(L)
30	0.30±0.10	0.80±0.10	0.70±0.10	0.60±0.10	305
28	0.38±0.10	0.88±0.10	0.78±0.10	0.68±0.10	305
26	0.46±0.10	0.96±0.10	0.86±0.10	0.76±0.10	305
24	0.56±0.10	1.16±0.10	1.06±0.10	0.86±0.10	305
23	0.66±0.10	1.26±0.10	1.16±0.10	0.96±0.10	305
22	0.71±0.10	1.31±0.10	1.21±0.10	1.01±0.10	305
21	0.81±0.10	1.41±0.10	1.31±0.10	1.11±0.10	305
20	0.86±0.10	1.66±0.10	1.46±0.10	1.16±0.10	305
19	0.96±0.20	1.76±0.20	1.56±0.20	1.26±0.20	200
18	1.07±0.20	1.87±0.20	1.67±0.20	1.37±0.20	200
17	1.19±0.20	1.99±0.20	1.79±0.20	1.49±0.20	200
16	1.34±0.20	2.14±0.20	1.94±0.20	1.64±0.20	153
15	1.50±0.20	2.30±0.20	2.10±0.20	1.80±0.20	153
14	1.68±0.20	2.48±0.20	2.28±0.20	2.08±0.20	100
13	1.93±0.20	2.7310.20	2.5310.20	2.3310.20	100
12	2.16±0.25	2.96±0.25	2.76±0.25	2.56±0.25	100
11	2.41±0.25	3.21±0.25	3.01±0.25	2.81±0.25	150
10	2.86±0.25	3.49±0.25	3.29±0.25	3.09±0.25	150
9	3.00±0.25	4.00±0.25	3.80±0.25	3.40±0.25	150
8	3.38±0.25	4.38±0.25	4.18±0.25	3.78±0.25	100
7	3.76±0.25	4.76±0.25	4.56±0.25	4.16±0.25	100
6	4.22±0.25	5.22±0.25	5.02±0.25	4.80±0.25	100
5	4.72±0.25	5.72±0.25	5.52±0.25	5.32±0.25	50
4	5.28±0.30	6.28±0.30	6.08±0.30	5.88±0.25	50
3	5.94±0.30	6.94±0.30	6.74±0.30	6.54±0.25	1.00
2	6.68±0.30	7.68±0.30	7.48±0.30	7.28±0.25	1.00
1	7.46±0.30	8.46±0.30	8.26±0.30	8.06±0.25	1.00
0	8.38±0.30	9.38±0.30	9.18±0.30	8.98±0.25	1.00

Technical Data

I Property	Method Test	Standard I
Tensile Strength(MPa)	ASTMD2671	m25
Elongation(%)	ASTMD2671	M300
Flammablity	VW-1	Pass
Dieletric strength(kV/mm)	IEC 60243	N26
Volume resistivity(Q.cm)	IEC 60093	>1X10¹⁴

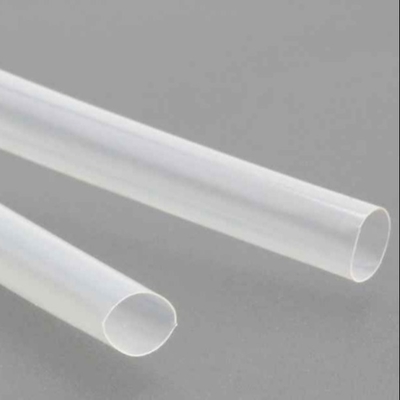

Clear 0.8mm Thermal Shrink Tube , AWG 30 Teflon PTFE Heat Shrink Tubing 0

FAQ

Professional Production Quality is Reliable

Q1 . Which certifications or test reports do you have?

A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?

A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.

For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?

A : We have a lot of products in stock. We can send the stock products in 3 work days.

If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?

A : Yes. We can provide samples.

Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?

A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
