Heat Shrink Breakout 1 2 3 Core Heat Shrink Cable Accessories Watertight

Heat Shrink Breakout 1 2 3 Core Heat Shrink Cable Accessories Watertight

Brand Name: Long
Model Number: 1-2-3 core
MOQ: 1piece
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 400000meters per day
Detail Information
Place of Origin:
China
Certification:
ISO
Size:
1 Coe 2 Core 3core
Material:
Manufactured From Cross-linked Polyolefin
Provide Sealing Protection And Strain Relief Over Multi-core Cable Crutch:
Including 2-, 3-, 4—, And 5-core Breakout
Coated With Adhesive On The Body And The Fingers:
To Form A Watertight Seal
Flame-retardant Breakouts:
Are Available Upon Customer Request
Meeting With Varieties:
Flame-retardant Breakouts Are Available Upon Customer Request
Requirements:
Meeting With Varieties Of Configuration Requirements
MOQ:
1piece
Packaging Details:
bag/Carton
Supply Ability:
400000meters per day
Highlight:

watertight Heat Shrink Cable Accessories

,

1 core Heat Shrink Cable Accessories

,

2 core heat shrink cable caps

Product Description

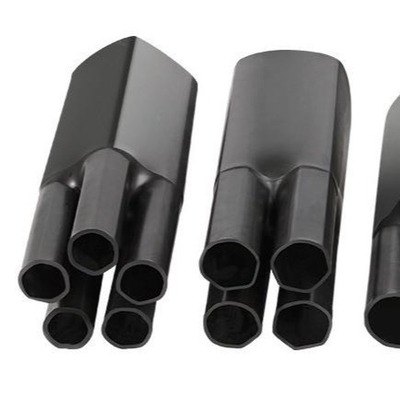

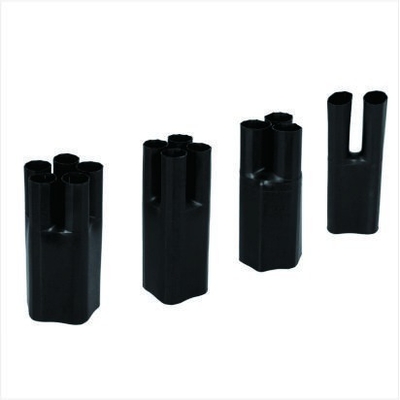

Black 1 Core 2 Core 3 Core Heat Shrink Breakout Waterproof Insulating Breakouts





•  Manufactured from cross-linked polyolefin



•  Provide sealing protection and strain relief over multi-core cable crutch, including 2-, 3-, 4—, and 5-core breakout



•  Coated with adhesive on the body and the fingers to form a watertight seal



•  Flame-retardant breakouts are available upon customer request



•  Meeting with varieties of configuration requirements



•  Shrink temperature: start at 90°C, and fully recovered at 130°C.





Technical Data





Property Test Method Standard Value
    Insulated Breakout Oil Resistant Breakout Semi-conductive Breakout
Tensile Strength ASTM-D-638 Ml2MPa ml2MPa X2MPa
Elongation at Break (1200 ,168 hrs) ASTM-D-638 3=300% 3300% ^300%
Tensile Strength after Aging (120口 ,168 hrs) ASTM-D-638 ^10MPa NlOMPa AOMPa
Elongation at Break after Aging ASTM-D-638 "230% "230% "230%
Tensile Strength after Dipping ASTM-D-638 ROMPa
Elongation at Break after Dipping ASTM-D-638 3230%
Dielectric Strength IEC 60243 5kV/mm ml 5kV/mm
WaterAbsorption ISO 62 <0.5% W0.5% <0.5%
Volume Resistivity IEC 60093 R x 1013Q • cm ml x 1013Q • cm 102 -104 Q - cm
