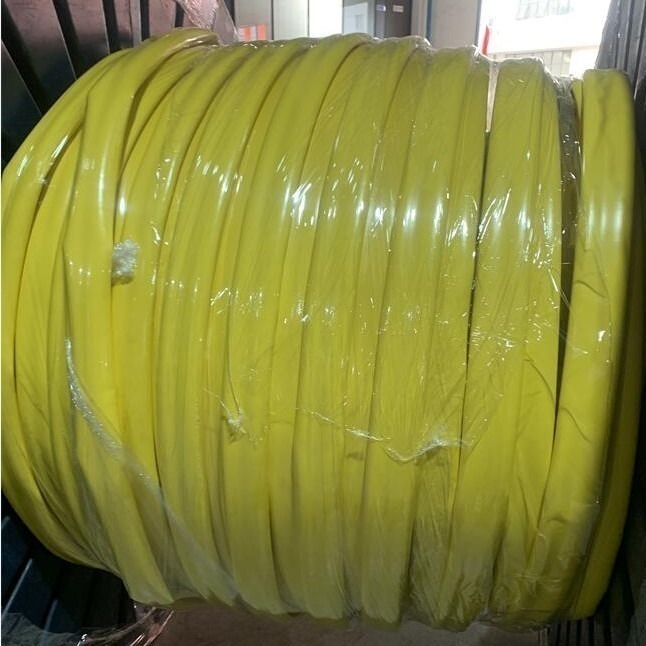

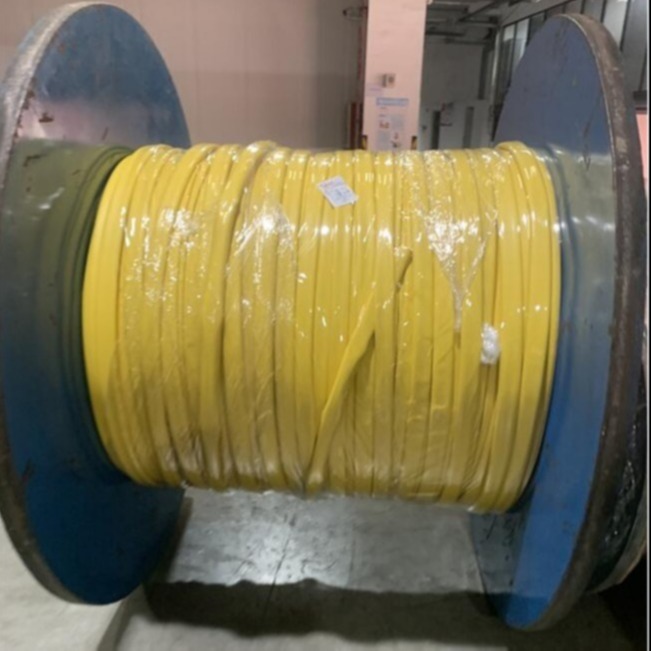

30mm Waterproof Yellow Heat Shrink Tubing , 1kv Insulation Sleeving Electrical Heat Shrinkable

  • 30mm Waterproof Yellow Heat Shrink Tubing , 1kv Insulation Sleeving Electrical Heat Shrinkable
  • 30mm Waterproof Yellow Heat Shrink Tubing , 1kv Insulation Sleeving Electrical Heat Shrinkable
Place of Origin China
Brand Name Long
Certification ISO
Model Number 30mm
Minimum Order Quantity 1m
Price 0.05
Packaging Details Roll/Carton
Delivery Time 1-9days
Payment Terms T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability 400000meters per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Yellow Voltage 1KV
Manufactured From Cross-linked Polyolefin Used To Offer Insulation Protection For Busbar In Switchgear And Substation
Protects Against Short Circuit And Electrical Leakage Cause By Small Animals Reduces Busbar Clearance Requirements
Shrink Temperature Start At 70X5. And Fully Recovered At 125X5
Highlight

waterproof Yellow Heat Shrink Tubing

,

30mm Yellow Heat Shrink Tubing

,

1kv Insulation Sleeving Electrical Heat Shrinkable
Leave a Message
Product Description

1KV 30mm Yellow Heat Shrink Busbar Tube Waterproof Insulating Tube





Heat Shrink Busbar Tube







Features





•  Manufactured from cross-linked polyolefin



•  Used to offer insulation protection for busbar in switchgear and substation



•  Protects against short circuit and electrical leakage cause by small animals



•  Reduces busbar clearance requirements



•  RoHS compliant

•  Shrink temperature: start at 70X5. and fully recovered at 125X5



•  Color: yellow, red, green, blue, black



Dimensions





  Busbar Width As Supplied/mm After Recovered/mm Standard Package
1 1 UU U 11 Vi (square)/mm ID (Min) Wall Thickness ID (Max) Wall Thickness (m/roll)
IkVWMPG 30 30 31.5±1.0 0.50±0.15 ♦ 15 0.95±0.15 50
IkVWMPG 35 35 36.5±1.5 0.50±0.15 <18 1.00±0.15 50
IkVWMPG 40 40 41.511.5 0.55±0.15 W20 1.00±0.15 25
IkVWMPG 45 45 41.5±1.5 0.55±0.15 W23 1.00±0.15 25
IkVWMPG 50 50 51.0±2.0 0.55±0.15 ♦ 25 1.00±0.15 25
IkVWMPG 60 60 60.0±3.0 0.60±0.20 <30 1.30±0.20 25
IkVWMPG 65* 65 65.0±3.0 0.60+0.20 W33 1.30±0.20 25
IkVWMPG 70 70 70.0±3.0 0.65±0.20 W35 1.30±0.20 25
IkVWMPG 75* 75 75.0±3.0 0.65±0.20 W38 1.30±0.20 25
IkVWMPG 80 80/100 80.013.0 0.65±0.20 W40 1.46±0.20 25
IkVWMPG 85* 80/100 85.0±3.0 0.65±0.20 W43 1.46±0.20 25
IkVWMPG 90 100 90.0±4.0 0.65±0.20 <45 1.46±0.20 25
IkVWMPG 100 100/120 100.0±4.0 0.65±0.20 <50 1.46±0.20 25
IkVWMPG 120 150 120.0±4.0 0.65±0.20 W60 1.46±0.20 25
IkVWMPG 150 180 150.0+4.0 0.65+0.20 W75 1.46±0.20 25
IkVWMPG 180 MAX 180.0±4.0 0.65±0.20 <90 1.46±0.20 25
1kVWMPG210* MAX 210.0±4.0 0.65±0.20 W105 1.46±0.20 25
IkVWMPG 230* MAX 230.0±4.0 0.65±0.20 W115 1.46±0.20 25
IkVWMPG 250* MAX 250.0±5.0 0.65±0.20 W125 1.46±0.20 25
IkVWMPG 300* MAX 300.0±5.0 0.65±0.20 W150 1.46±0.20 25





Technical Data





Property Test Method Standard Value
Tensile Strength GB/T1040 N8MPa
Elongation at Break GB/T1040 2300%
Tensile Strength after Aging GB/T 1040, GB/T 7141 N6.4MPa(130°C,168hrs)
Elongation at Break after Aging GB/T 1040, GB/T 7141 5=100% (130°C,168 hrs)
Hardness (Shore A) ISO 868 W90
Dielectric Strength IEC 60243 N25kV/mm
Volume Resistivity IEC 60093 slxio14Qcm
Dielectric Constant IEC 60250 W3.0
Longitudinal Shrinkage ASTM-D-2671 W10%
Eccentricity ASTM-D-2671 W30%(10kV)； W50%(35kV)
WaterAbsorption ISO 62 W0.5%
Flammability (Oxygen Index) ISO 4589 "28
