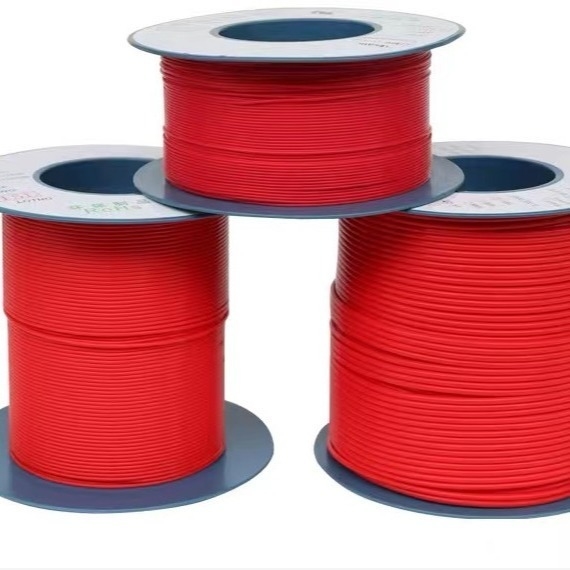

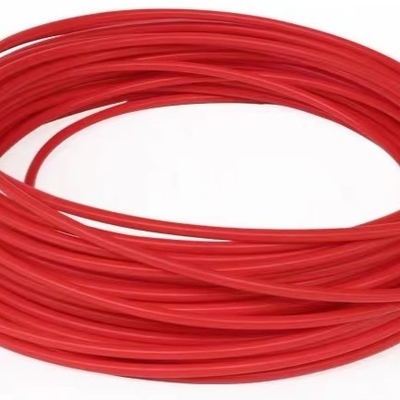

0.38mm Red Flexible Teflon Tubing , AWG 28 Thin Wall PTFE Tubing
| Place of Origin | China |
|---|---|
| Brand Name | Long |
| Certification | ISO |
| Model Number | AWG28-0.38mm |
| Minimum Order Quantity | 1m |
| Packaging Details | Roll/Carton |
| Delivery Time | 1-9days |
| Payment Terms | T/T, D/P, D/A, L/C, Western Union, MoneyGram |
| Supply Ability | 400000meters per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PTFE | Color | Red |
|---|---|---|---|
| Resistance | High Temperature Resistance | Feature | Chemical Insert |
| Operating | Continuous Operating | Temperature | -80℃- 200℃ |
| Corrosion Resistance | (acid/alkali Resistance, Chemical Reagents Oil-proof) | High Pressure | High Pressure Resistance |
| Highlight | Red Flexible Teflon Tubing,0.38mm Flexible Teflon Tubing,AWG 28 thin wall PTFE tubing |
||
Product Description
AWG28 0.38mm Red PTFE Teflon Tubing For Electrical Chemical And Thermal Environment
Specially designed for protecting applications in extreme electrical Chemical and thermal environment.
Features
● Chemical insert
● High temperature resistance
● Continuous operating
● Temperature:-80℃- 200℃
● Corrosion resistance(acid/alkali resistance, chemical reagents oil-proof)
● High pressure resistance
● Standard: UL224 VW-1 C-UL CSA22.20FT
● UL file number: E203950
Dimensions
Size AWG | Expanded | External Diameter |
Standard Package M/Spool | ||
| Internal Diameter mm | (S) | (T) | (L) | ||
| 30 | 0.30±0.10 | 0.80±0.10 | 0.70±0.10 | 0.60±0.10 | 305 |
| 28 | 0.38±0.10 | 0.88±0.10 | 0.78±0.10 | 0.68±0.10 | 305 |
| 26 | 0.46±0.10 | 0.96±0.10 | 0.86±0.10 | 0.76±0.10 | 305 |
| 24 | 0.56±0.10 | 1.16±0.10 | 1.06±0.10 | 0.86±0.10 | 305 |
| 23 | 0.66±0.10 | 1.26±0.10 | 1.16±0.10 | 0.96±0.10 | 305 |
| 22 | 0.71±0.10 | 1.31±0.10 | 1.21±0.10 | 1.01±0.10 | 305 |
| 21 | 0.81±0.10 | 1.41±0.10 | 1.31±0.10 | 1.11±0.10 | 305 |
| 20 | 0.86±0.10 | 1.66±0.10 | 1.46±0.10 | 1.16±0.10 | 305 |
| 19 | 0.96±0.20 | 1.76±0.20 | 1.56±0.20 | 1.26±0.20 | 200 |
| 18 | 1.07±0.20 | 1.87±0.20 | 1.67±0.20 | 1.37±0.20 | 200 |
| 17 | 1.19±0.20 | 1.99±0.20 | 1.79±0.20 | 1.49±0.20 | 200 |
| 16 | 1.34±0.20 | 2.14±0.20 | 1.94±0.20 | 1.64±0.20 | 153 |
| 15 | 1.50±0.20 | 2.30±0.20 | 2.10±0.20 | 1.80±0.20 | 153 |
| 14 | 1.68±0.20 | 2.48±0.20 | 2.28±0.20 | 2.08±0.20 | 100 |
| 13 | 1.93±0.20 | 2.73±0.20 | 2.53±0.20 | 2.33±0.20 | 100 |
| 12 | 2.16±0.25 | 2.96±0.25 | 2.76±0.25 | 2.56±0.25 | 100 |
| 11 | 2.41±0.25 | 3.21±0.25 | 3.01±0.25 | 2.81±0.25 | 150 |
| 10 | 2.86±0.25 | 3.49±0.25 | 3.29±0.25 | 3.09±0.25 | 150 |
| 9 | 3.00±0.25 | 4.00±0.25 | 3.80±0.25 | 3.40±0.25 | 150 |
| 8 | 3.38±0.25 | 4.38±0.25 | 4.18±0.25 | 3.78±0.25 | 100 |
| 7 | 3.76±0.25 | 4.76±0.25 | 4.56±0.25 | 4.16±0.25 | 100 |
| 6 | 4.22±0.25 | 5.22±0.25 | 5.02±0.25 | 4.80±0.25 | 100 |
| 5 | 4.72±0.25 | 5.72±0.25 | 5.52±0.25 | 5.32±0.25 | 50 |
| 4 | 5.28±0.30 | 6.28±0.30 | 6.08±0.30 | 5.88±0.25 | 50 |
| 3 | 5.94±0.30 | 6.94±0.30 | 6.74±0.30 | 6.54±0.25 | 1.00 |
| 2 | 6.68±0.30 | 7.68±0.30 | 7.48±0.30 | 7.28±0.25 | 1.00 |
| 1 | 7.46±0.30 | 8.46±0.30 | 8.26±0.30 | 8.06±0.25 | 1.00 |
| 0 | 8.38±0.30 | 9.38±0.30 | 9.18±0.30 | 8.98±0.25 | 1.00 |
Technical Data
| Property | Method Test | Stantard |
| Tensile Strengtn(MPa) | ASTMD 2671 | ≥25 |
| Elongation(%) | ASTMD 2671 | ≥300 |
| Flammablity | VW-1 | Pass |
| Dieletric strength(kv/mm) | IEC 60243 | ≥26 |
| Volume resistivity(Ω.cm) | ASTM D876 | ≥1X1014 |
