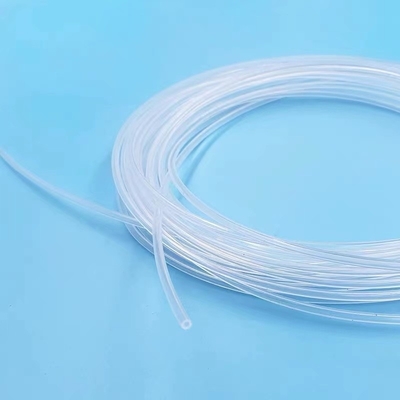

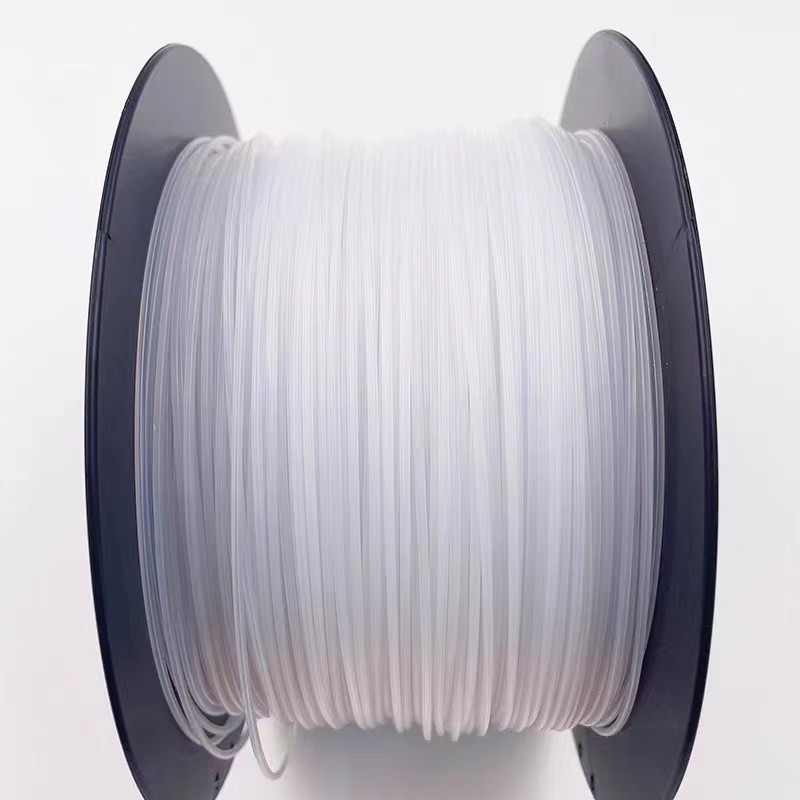

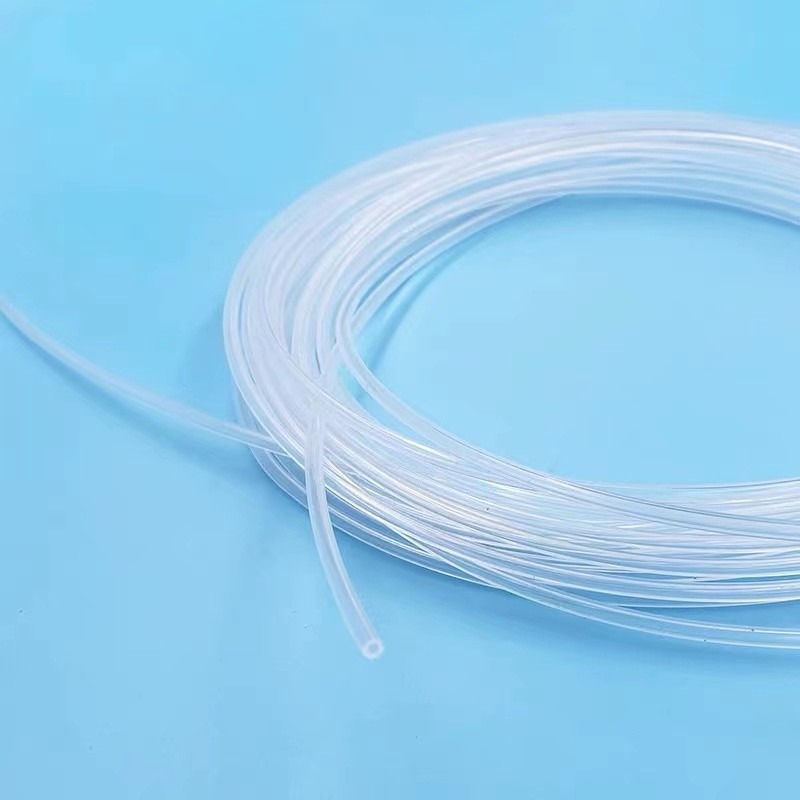

High Temperature Corrosion Resistant PTFE Tubing

  • High Temperature Corrosion Resistant PTFE Tubing
  • High Temperature Corrosion Resistant PTFE Tubing
  • High Temperature Corrosion Resistant PTFE Tubing
  • High Temperature Corrosion Resistant PTFE Tubing
Place of Origin China
Brand Name Long
Certification ISO
Model Number 0.8mm-30mm
Minimum Order Quantity 1m
Packaging Details Roll/Carton
Delivery Time 1-9days
Payment Terms T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability 400000meters per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material PTFE Feature High Temperature Resistance
Continuous Operating Continuous Operating Temperature -64°C-201°C
Corrosion Resistance Chemical Reagents Oil-proof High Pressure High Pressure Resistance
Standard UL224 VW-1 C-UL CSA22.20FT ULfile Number E203950
Highlight

Corrosion Resistant PTFE Tubing

,

High Temperature PTFE Tubing

,

pressure resistance ptfe heat shrink tubing
Leave a Message
Product Description

Ptfe Tubing High Temperature And Corrosion Resistant ​





Specially designed for protecting applications in extreme electrical

Chemical and thermal environment.







Features



• Chemical insert



• High temperature resistance



• Continuous operating



• Temperature:-65°C-200°C



•  Corrosion resistance(acid/alkali resistance, chemical reagents oil-proof)



• High pressure resistance



• Standard: UL224 VW-1 C-UL CSA22.20FT



• ULfile number: E203950





Dimensions





Size

AWG

 Expanded External Diameter Standard Package M/Spool
  Internal Diameter mm (S) (T) (L)
30 0.30±0.10 0.80±0.10 0.70±0.10 0.60±0.10 305
28 0.38±0.10 0.88±0.10 0.78±0.10 0.68±0.10 305
26 0.46±0.10 0.96±0.10 0.86±0.10 0.76±0.10 305
24 0.56±0.10 1.16±0.10 1.06±0.10 0.86±0.10 305
23 0.66±0.10 1.26±0.10 1.16±0.10 0.96±0.10 305
22 0.71±0.10 1.31±0.10 1.21±0.10 1.01±0.10 305
21 0.81±0.10 1.41±0.10 1.31±0.10 1.11±0.10 305
20 0.86±0.10 1.66±0.10 1.46±0.10 1.16±0.10 305
19 0.96±0.20 1.76±0.20 1.56±0.20 1.26±0.20 200
18 1.07±0.20 1.87±0.20 1.67±0.20 1.37±0.20 200
17 1.19±0.20 1.99±0.20 1.79±0.20 1.49±0.20 200
16 1.34±0.20 2.14±0.20 1.94±0.20 1.64±0.20 153
15 1.50±0.20 2.30±0.20 2.10±0.20 1.80±0.20 153
14 1.68±0.20 2.48±0.20 2.28±0.20 2.08±0.20 100
13 1.93±0.20 2.7310.20 2.5310.20 2.3310.20 100
12 2.16±0.25 2.96±0.25 2.76±0.25 2.56±0.25 100
11 2.41±0.25 3.21±0.25 3.01±0.25 2.81±0.25 150
10 2.86±0.25 3.49±0.25 3.29±0.25 3.09±0.25 150
9 3.00±0.25 4.00±0.25 3.80±0.25 3.40±0.25 150
8 3.38±0.25 4.38±0.25 4.18±0.25 3.78±0.25 100
7 3.76±0.25 4.76±0.25 4.56±0.25 4.16±0.25 100
6 4.22±0.25 5.22±0.25 5.02±0.25 4.80±0.25 100
5 4.72±0.25 5.72±0.25 5.52±0.25 5.32±0.25 50
4 5.28±0.30 6.28±0.30 6.08±0.30 5.88±0.25 50
3 5.94±0.30 6.94±0.30 6.74±0.30 6.54±0.25 1.00
2 6.68±0.30 7.68±0.30 7.48±0.30 7.28±0.25 1.00
1 7.46±0.30 8.46±0.30 8.26±0.30 8.06±0.25 1.00
0 8.38±0.30 9.38±0.30 9.18±0.30 8.98±0.25 1.00



Technical Data





I Property Method Test Standard I
Tensile Strength(MPa) ASTMD2671 m25
Elongation(%) ASTMD2671 M300
Flammablity VW-1 Pass
Dieletric strength(kV/mm) IEC 60243 N26
Volume resistivity(Q.cm) IEC 60093 >1X1014





High Temperature Corrosion Resistant PTFE Tubing 0

  Changzhou Longchuang Insulating Material Co., Ltd is a high-tech enterprise with headquarter in Changzhou, China. Founded in 2010,The Long brand has always been a guarantee for the supply of products and services. From product design and raw materials purchasing to final inspection and testing, Longchuang has a perfect quality assurance program covering the entire production process. So far, we have been successfully certified by ISO 9001, ISO 14001, ISO/TS 16949, UL, CSA, 3C, etc.
