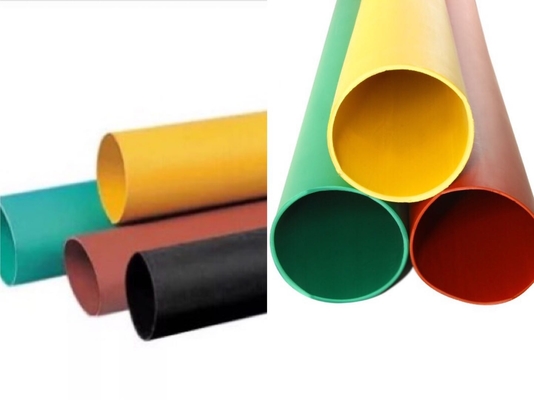

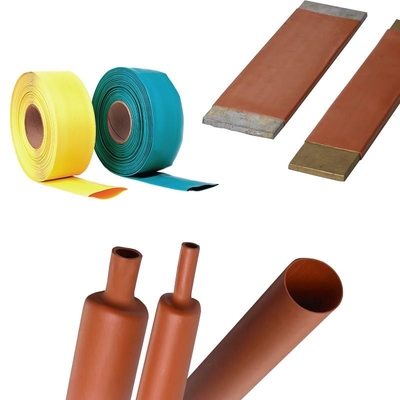

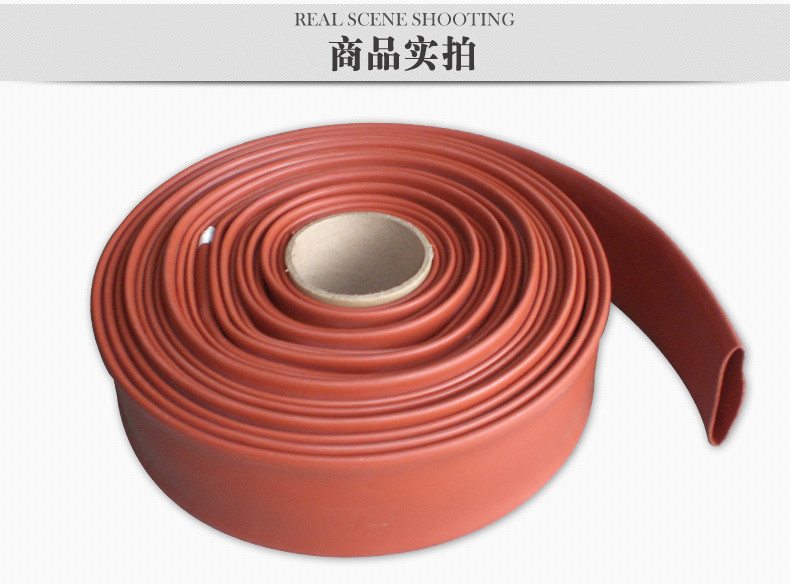

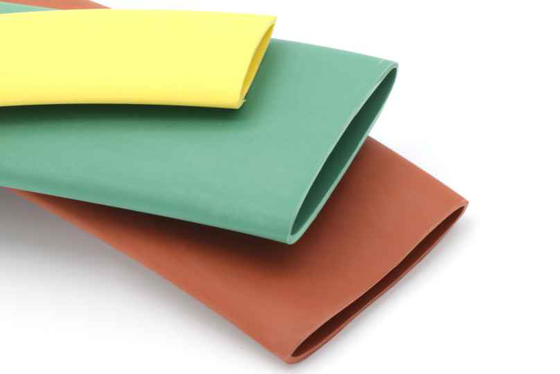

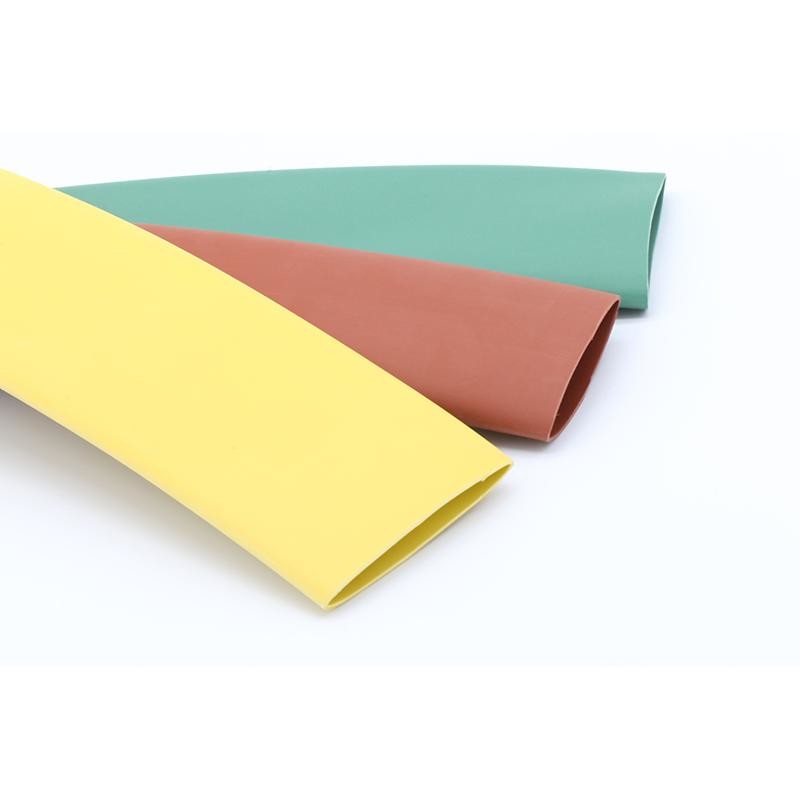

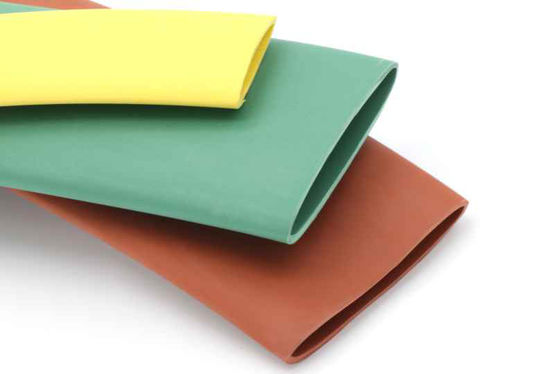

PE Heat Shrink Wrap Tubing Buabar Heat Shrink Tubing Wrap Tubing

Name: PE Heat Shrink Wrap Tubing Buabar Heat Shrink Tubing Wrap Tubing
Brand: Long
SKU: MPG
Rating: 4.8 (153 reviews)

Place of Origin	China
Brand Name	Long
Certification	ISO9001
Model Number	MPG
Minimum Order Quantity	1m
Price	Can discussible
Packaging Details	Roll/Carton
Delivery Time	1-8days
Payment Terms	T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability	300000meters per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Color	Green And Yellow	KV	10KV
Material	PE	1kv Wall Thickness	0.4mm-0.6mm
10KV Wall Thickness	1.2mm	Shrink Temperature	Start At 70X5. And Fully Recovered At 125X5
Feature	Reduces Busbar Clearance Requirements	Fuction	Used To Offer Insulation Protection For Busbar
Highlight	10KV Heat shrink wrap , PE Heat shrink wrap , 10KV buabar wrap

Leave a Message

Product Description

Yellow And Green PE Heat Shrink Busbar Tube 1KV 10kv 25kv 35kv

Heat Shrink Busbar Tube

Dimensions

	Busbar Width	As Supplied/mm		After Recovered/mm		Standard Package
1 1 UU U 11 Vi	(square)/mm	ID (Min)	Wall Thickness	ID (Max)	Wall Thickness	(m/roll)
IkVWMPG 30	30	31.5±1.0	0.50±0.15	♦ 15	0.95±0.15	50
IkVWMPG 35	35	36.5±1.5	0.50±0.15	<18	1.00±0.15	50
IkVWMPG 40	40	41.511.5	0.55±0.15	W20	1.00±0.15	25
IkVWMPG 45	45	41.5±1.5	0.55±0.15	W23	1.00±0.15	25
IkVWMPG 50	50	51.0±2.0	0.55±0.15	♦ 25	1.00±0.15	25
IkVWMPG 60	60	60.0±3.0	0.60±0.20	<30	1.30±0.20	25
IkVWMPG 65*	65	65.0±3.0	0.60+0.20	W33	1.30±0.20	25
IkVWMPG 70	70	70.0±3.0	0.65±0.20	W35	1.30±0.20	25
IkVWMPG 75*	75	75.0±3.0	0.65±0.20	W38	1.30±0.20	25
IkVWMPG 80	80/100	80.013.0	0.65±0.20	W40	1.46±0.20	25
IkVWMPG 85*	80/100	85.0±3.0	0.65±0.20	W43	1.46±0.20	25
IkVWMPG 90	100	90.0±4.0	0.65±0.20	<45	1.46±0.20	25
IkVWMPG 100	100/120	100.0±4.0	0.65±0.20	<50	1.46±0.20	25
IkVWMPG 120	150	120.0±4.0	0.65±0.20	W60	1.46±0.20	25
IkVWMPG 150	180	150.0+4.0	0.65+0.20	W75	1.46±0.20	25
IkVWMPG 180	MAX	180.0±4.0	0.65±0.20	<90	1.46±0.20	25
1kVWMPG210*	MAX	210.0±4.0	0.65±0.20	W105	1.46±0.20	25
IkVWMPG 230*	MAX	230.0±4.0	0.65±0.20	W115	1.46±0.20	25
IkVWMPG 250*	MAX	250.0±5.0	0.65±0.20	W125	1.46±0.20	25
IkVWMPG 300*	MAX	300.0±5.0	0.65±0.20	W150	1.46±0.20	25

10kV WMPG Series

Features

• Manufactured from cross-linked polyolefin

• Used to offer insulation protection for busbar in switchgear and substation

• Protects against short circuit and electrical leakage cause by small animals

• Reduces busbar clearance requirements

• RoHS compliant

• Shrink temperature: start at 70X5. and fully recovered at 125X5

• Color: yellow, red, green, blue, black

Dimensions

Product No.	Busbar Width (square/circular) /mm	As Supplied/mm		After Recovered/mm		Standard Package (m/roll)
Product No.	Busbar Width (square/circular) /mm	ID (Min)	Wall Thickness	ID (Max)	Wall Thickness	Standard Package (m/roll)
10kVWMPG 15/8	15/12	15.0±0.8	1.20±0.30	<8	2.10±0.30	25
10kV WMPG 20/10	20/15	20.0±0.8	1.20±0.30	W10	2.10±0.30	25
10kV WMPG 25/12	25/18	25.0±0.8	1.20±0.30	W12.5	2.10±0.30	25
10kV WMPG 30/15	32/20	30.0±0.8	1.20±0.30	W15	2.10±0.30	25
10kV WMPG 40/20	40/30	40.0±1.0	1.20±0.30	W20	2.30±0.30	25
10kV WMPG 50/25	50/35	50.0±3.0	1.20±0.30	W25	2.30±0.30	25
10kV WMPG 60/30	60/45	60.0±3.0	1.20±0.30	W30	2.30±0.30	25
10kV WMPG 65/33*	65/45	65.0±3.0	1.20±0.30	W33	2.30±0.30	25
10kV WMPG 70/35	70/50	70.0±3.0	1.20±0.30	W35	2.30±0.30	25
10kV WMPG 75/38*	75/50	75.0±3.0	1.20±0.30	<38	2.30±0.30	25
10kVWMPG 80/40	80/55	80.0±3.0	1.20±0.30	W40	2.30±0.30	25
10kV WMPG 85/43*	80/65	85.0±3.0	1.20±0.30	W43	2.40±0.30	25
10kVWMPG 100/50	100/75	100.0±4.0	1.20±0.30	W50	2.40±0.30	25
10kVWMPG 120/60	120/85	120.0±4.0	1.20±0.30	W60	2.40±0.30	25
10kVWMPG 150/75	150/105	150.0±4.0	1.20±0.30	W75	2.40±0.30	25
WkVWMPG 180/90	180/120	180.0±5.0	1.20±0.30	<90	2.40 ±0.30	25
10kV WMPG 210/105*	210/140	210.0±5.0	1.20±0.40	W105	2.40±0.30	20
10kV WMPG 230/115*	230/150	230.0±5.0	1.20±0.40	W115	2.40 ±0.30	20
10kV WMPG 250/125*	250/180	250.0±5.0	1.20±0.40	W125	2.40±0.30	20
10kV WMPG 300/150*	300/210	300.0±5.0	1.20±0.40	W150	2.40±0.30	15

PE Heat Shrink Wrap Tubing Buabar Heat Shrink Tubing Wrap Tubing 0
