Busbar Tube
Created with Pixso.

Custom 1KV Waterproof Insulating Busbar Insulation Sleeving

Custom 1KV Waterproof Insulating Busbar Insulation Sleeving

Custom 1KV Waterproof Insulating Busbar Insulation Sleeving

Brand Name: LC
Model Number: Long-busbar-1KV
Price: $0.01/meters >=1 meters
Supply Ability: 500000 Meter/Meters per Day
Detail Information
Product Description
Detail Information
Place of Origin:
Jiangsu, China
Type:
Insulation Sleeving
Material:
PE
Application:
High Voltage
Rated Voltage:
1kV
Tensile Strength:
≥8.0MPa
Voltage:
1KV/10KV/20KV/35KV
Color:
Red Yellow Black Green
Reduces:
Busbar Clearance Requirements
Shrink Temperature:
Start At 70X5
Fully Recovered:
At 125X5
MOQ:
1m
Size:
30mm-300mm
Port:
Any Ports Of China
Packaging Details:
According to the tubing's size
Supply Ability:
500000 Meter/Meters per Day
Highlight:

1KV busbar Insulation Sleeving

,

waterproof busbar Insulation Sleeving

,

Custom busbar Insulation tubing

Product Description
Product Description

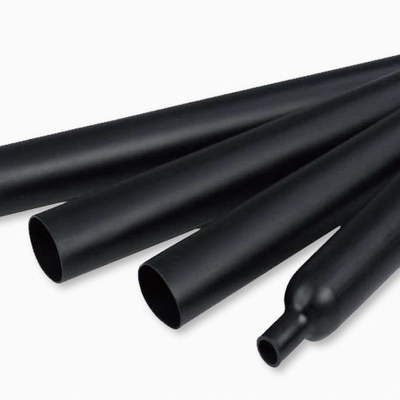

 Custom 1KV Waterproof Insulating Busbar Insulation Sleeving 0

Executive standard DL/T 1059-2007
Heat shrinkage ratio 2:1 (1KV, 3KV busbar)
2.5:1 (10KV busbar)
Features Electricity resistance, low smoke, high strength, softness, flame retardant
Tightening temperature ≥84℃
Final shrinkage temperature ≥120°C
Use temperature -55℃~125℃
Environmental protection characteristics Compliant with EU RoHs directive
Breakdown Strength ≥20KV/MM
ensile strength ≥8.0 MPa
Elongation at break ≥300%
Flame retardant test (O.1.> 30%) PASS
Color red yellow green black

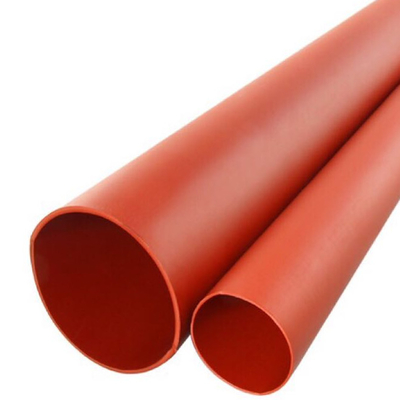

Custom 1KV Waterproof Insulating Busbar Insulation Sleeving 1

Features

• Manufactured from cross-linked polyolefin

•  Used to offer insulation protection for busbar in switchgear and substation

•  Protects against short circuit and electrical leakage cause by small animals

•  Reduces busbar clearance requirements

•  RoHS compliant

•  Shrink temperature: start at 70X5. and fully recovered at 125X5

•  Color: yellow, red, green, blue, black

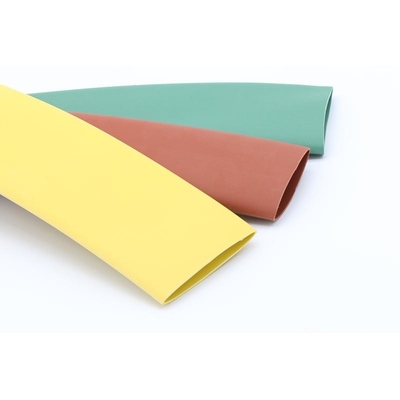

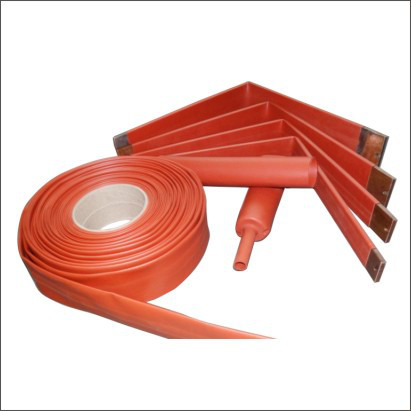

 Custom 1KV Waterproof Insulating Busbar Insulation Sleeving 2Custom 1KV Waterproof Insulating Busbar Insulation Sleeving 3Custom 1KV Waterproof Insulating Busbar Insulation Sleeving 4

Dimensions





Custom 1KV Waterproof Insulating Busbar Insulation Sleeving 5

 Custom 1KV Waterproof Insulating Busbar Insulation Sleeving 6

Custom 1KV Waterproof Insulating Busbar Insulation Sleeving 7

Company Information

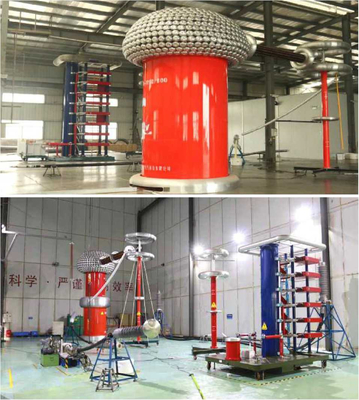

 Custom 1KV Waterproof Insulating Busbar Insulation Sleeving 8

Custom 1KV Waterproof Insulating Busbar Insulation Sleeving 9Custom 1KV Waterproof Insulating Busbar Insulation Sleeving 10Custom 1KV Waterproof Insulating Busbar Insulation Sleeving 11Custom 1KV Waterproof Insulating Busbar Insulation Sleeving 12Custom 1KV Waterproof Insulating Busbar Insulation Sleeving 13Custom 1KV Waterproof Insulating Busbar Insulation Sleeving 14Custom 1KV Waterproof Insulating Busbar Insulation Sleeving 15Custom 1KV Waterproof Insulating Busbar Insulation Sleeving 16





FAQ



 Custom 1KV Waterproof Insulating Busbar Insulation Sleeving 17
