Busbar Tube
Created with Pixso.

Multiple Customized Insulating Heat Shrink Busbar Tube 40mm Flexible Polyolefin

Multiple Customized Insulating Heat Shrink Busbar Tube 40mm Flexible Polyolefin

Multiple Customized Insulating Heat Shrink Busbar Tube 40mm Flexible Polyolefin

Brand Name: LC
Model Number: Long-busbar-1KV
Price: $0.01/meters >=1 meters
Supply Ability: 500000 Meter/Meters per Day
Detail Information
Product Description
Detail Information
Place of Origin:
Jiangsu, China
Type:
Insulation Sleeving
Material:
PE
Application:
High Voltage
Rated Voltage:
1kV
Tensile Strength:
≥8.0MPa
Voltage:
1KV/10KV/20KV/35KV
Color:
Red Yellow Black Green
Reduces:
Busbar Clearance Requirements
Shrink Temperature:
Start At 70X5
Fully Recovered:
At 125X5
MOQ:
1m
Size:
30mm-300mm
Port:
Any Ports Of China
Packaging Details:
According to the tubing's size
Supply Ability:
500000 Meter/Meters per Day
Highlight:

40mm Heat Shrink Busbar Tube

,

Polyolefin Heat Shrink Busbar Tube

,

Polyolefin Insulating Busbar Tube

Product Description
Product Description

 Multiple Customized Insulating Heat Shrink Busbar Tube 40mm Flexible Polyolefin 0

Executive standard DL/T 1059-2007
Heat shrinkage ratio 2:1 (1KV, 3KV busbar)
2.5:1 (10KV busbar)
Features Electricity resistance, low smoke, high strength, softness, flame retardant
Tightening temperature ≥84℃
Final shrinkage temperature ≥120°C
Use temperature -55℃~125℃
Environmental protection characteristics Compliant with EU RoHs directive
Breakdown Strength ≥20KV/MM
ensile strength ≥8.0 MPa
Elongation at break ≥300%
Flame retardant test (O.1.> 30%) PASS
Color red yellow green black



Multiple Customized Insulating Heat Shrink Busbar Tube 40mm Flexible Polyolefin 1

Features

• Manufactured from cross-linked polyolefin

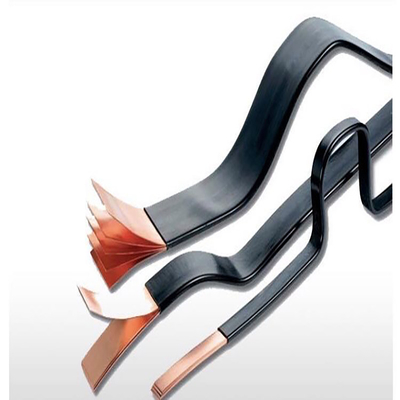

•  Used to offer insulation protection for busbar in switchgear and substation

•  Protects against short circuit and electrical leakage cause by small animals

•  Reduces busbar clearance requirements

•  RoHS compliant

•  Shrink temperature: start at 70X5. and fully recovered at 125X5

•  Color: yellow, red, green, blue, black

 Multiple Customized Insulating Heat Shrink Busbar Tube 40mm Flexible Polyolefin 2Multiple Customized Insulating Heat Shrink Busbar Tube 40mm Flexible Polyolefin 3Multiple Customized Insulating Heat Shrink Busbar Tube 40mm Flexible Polyolefin 4

Dimensions





Multiple Customized Insulating Heat Shrink Busbar Tube 40mm Flexible Polyolefin 5

 Multiple Customized Insulating Heat Shrink Busbar Tube 40mm Flexible Polyolefin 6

Multiple Customized Insulating Heat Shrink Busbar Tube 40mm Flexible Polyolefin 7

Company Information

 Multiple Customized Insulating Heat Shrink Busbar Tube 40mm Flexible Polyolefin 8

Multiple Customized Insulating Heat Shrink Busbar Tube 40mm Flexible Polyolefin 9Multiple Customized Insulating Heat Shrink Busbar Tube 40mm Flexible Polyolefin 10Multiple Customized Insulating Heat Shrink Busbar Tube 40mm Flexible Polyolefin 11Multiple Customized Insulating Heat Shrink Busbar Tube 40mm Flexible Polyolefin 12Multiple Customized Insulating Heat Shrink Busbar Tube 40mm Flexible Polyolefin 13Multiple Customized Insulating Heat Shrink Busbar Tube 40mm Flexible Polyolefin 14Multiple Customized Insulating Heat Shrink Busbar Tube 40mm Flexible Polyolefin 15Multiple Customized Insulating Heat Shrink Busbar Tube 40mm Flexible Polyolefin 16





FAQ



 Multiple Customized Insulating Heat Shrink Busbar Tube 40mm Flexible Polyolefin 17
