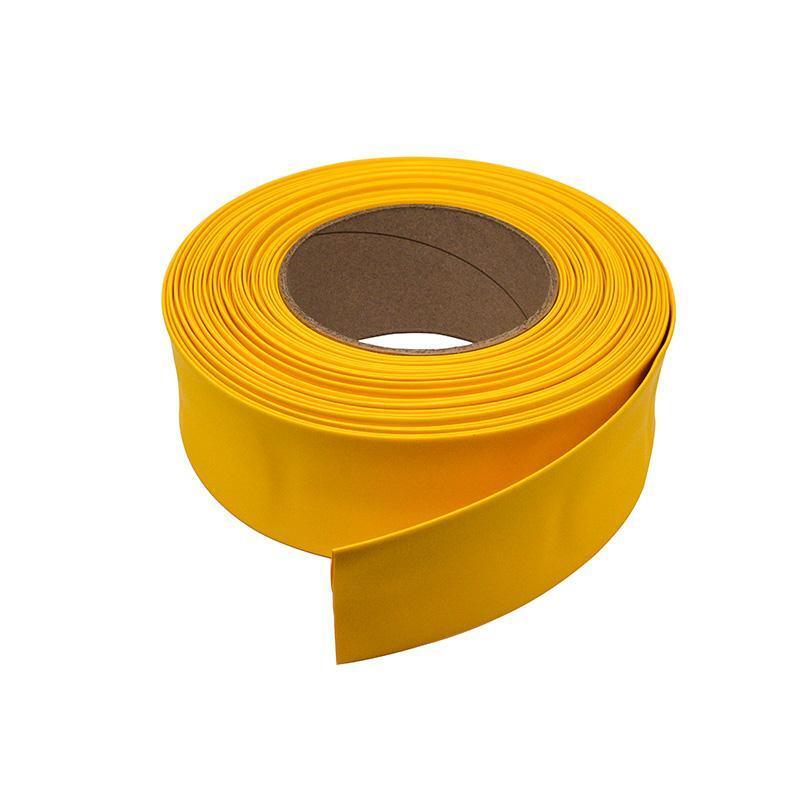

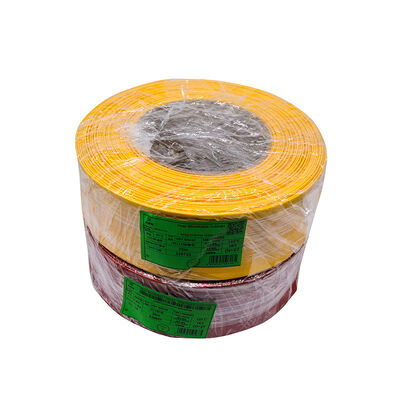

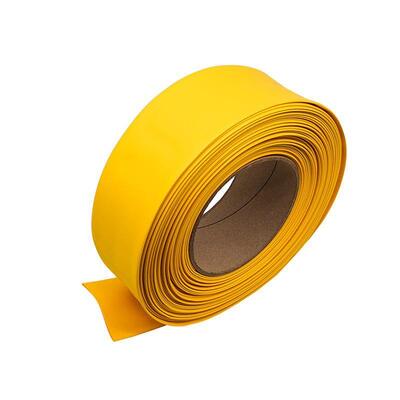

1KV Environmental Protection Flame-Retardant Busbar Tube Comply with RoHS

Brand Name:	WOER
Model Number:	MPG
MOQ:	50
Price:	Negotiable
Payment Terms:	T/T,L/C,D/P,D/A
Supply Ability:	20000m/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Packaging Details:

carton

Supply Ability:

20000m/day

Product Description

Features:

Manufactured from cross linked polyolefin

Used to offer insulation protection for busbar in switchgear and substation

Protects against short circuit and electrical leakage cause by small animals

Reduces busbar clearance requirements

RoHS compliant

Shrink temperature : start at 70C ,and fully recovered at 125C

Color : yellow , red , green , blue , black

Dimensions:

Product NO	Busbar Width ( square ) / mm	As Supplied / mm	After Recovered / mm		Standard Package ( m / roll )
Product NO	Busbar Width ( square ) / mm	ID ( Min )	ID ( Max )	Wall Thickness	Standard Package ( m / roll )
30	30	31.5±1.0	≤15	0.95±0.15	50
35	35	36.5±1.5	≤18	0.95±0.15	50
40	4O	41.5±1.5	≤20	0.95±0.15	50
45	45	41.5±1.5	≤23	1.00±0.15	25
50	50	51.0±2.0	≤25	1.00±0.15	25
60	60	60.0±3.0	≤30	1.00±0.20	25
65*	65	65.0±3.0	≤33	1.10±0.20	25
70	70	70.0±3.0	≤35	1.10±0.20	25
75*	75	75.0±3.0	≤38	1.15±0.20	25
80	80/100	80.0±3.0	≤40	1.20±0.20	25
85*	80/100	85.0±3.0	≤43	1.20±0.20	25
90	100	90.0±4.0	≤45	1.20±0.20	25
100	100/120	100.0±4.0	≤50	1.30±0.20	25
120	150	120.0±4.0	≤60	1.30±0.20	25
150	180	150.0±4.0	≤75	1.30±0.20	25
180	MAX	180.0v4.0	≤90	1.46±0.20	25
210*	MAX	210.0±4.0	≤105	1.46±0.20	25
230*	MAX	230.0±4.0	≤115	1.46±0.20	25
250*	MAX	250.0±5.0	≤125	1.46±0.20	25

Technical Data :

Property	Test Method	Standard Value
Tensile Strength	GB/T 1040	≥8Mpa
Elongation at Break	GB/T 1040	≥300%
Tensile Strength after Aging	GB/T 1040 , GB/T 7141	≥6.4MPa(130C,168hrs)
Elongation at Break after Aging	GB/T 1040 , GB/T 7141	≥100%(130C,168hrs)
Hardness ( Shore A )	ISO 868	≤90
Dielectric Strength	IEC 60243	≥25kV/mm
Volume Resistivity	IEC 60093	≥1×10^14Ω·cm
Longitudinal Shrinkage	ASTM-D-2671	≤10%
Eccentricity	ASTM-D-2671	≤30%(10kv); ≤50%(35kv)
Water Absorption	ISO 62	≤0.5%
Flammability ( Oxygen index )	ISO 4589	≥28

Application

1KV Environmental Protection Flame-Retardant Busbar Tube Comply with RoHS 0
