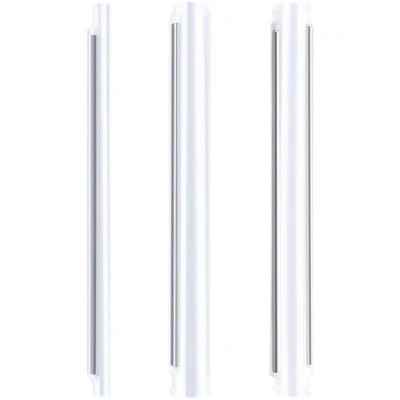

215mm Heat Shrink Wrap Tubing
| Place of Origin | China |
|---|---|
| Brand Name | Long |
| Certification | ISO |
| Model Number | T5-T8-T12 |
| Minimum Order Quantity | 1m |
| Price | Can discussible |
| Packaging Details | Roll/Carton |
| Delivery Time | 1-9days |
| Payment Terms | T/T, D/P, D/A, L/C, Western Union, MoneyGram |
| Supply Ability | 400000meters per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | FEP | Color | Clear |
|---|---|---|---|
| Insulation | Excellent Insulation | Operating Temperature | -160°C |
| No Burn In The Air (Oxygen Index | >95vol%) | Resistance | UV Resistance |
| Large Diameter Up To | 215 Mm | ||
| High Light | heat shrink wrap tubing,UV resistance Heat Shrink Wrap Tubing,65d shrink insulation tubing |
||
Product Description
Excellent Insulation FEP Heat Shrink Tubing 200 °C Temperature
FEP heat shrink tubing
Description
FEP heat shrink tubing has similar dielectric and frictional properties to PTFE heat shrink tubing. Except the Continuous operating temperature,
FEP heat shrinkable tubing is suitable for continuous use at temperatures up to 200°C. But the begin shrink temperature of FEP tubing is just 130
°C, much lower than PTFE’s. This can be a significant advantage when used in conjunction with temperature sensitive components. The other
advantage of FEP heat shrink tubing is that the max diameter of FEP heat shrink tubing we can produce is 215mm ID, much larger than PTFE’s.
Features and Benefits
1. Excellent insulation
2. Operating temperature -180°C ~ 200 °C
3. No burn in the air (Oxygen Index>95vol%)
4. Excellent corrosion resistance
5. Low Friction: Dynamic friction coefficient 0.2-0.3
6. UV resistance
7. Large diameter up to 215 mm
8. Customize ( diameter, wall thickness, and color)
9. Shrink ratio: 1.3:1
10. Lower shrink temperature 130 degree C to start shrink
11. Low pass for 5G using
Production process
We use new and pure raw material to produce our FEP heat shrink tubing, our raw material from Dakai, Dupond, Dongyue and Juhua. We donn;t
use recycle material. So we just make high quality product.
We have infra-ray diameter gauge to measure the diameter to confirm the diameter suit the tolerance.
Bakai has our own clean room, we can producing product in the clean room for medical use.
Application:
Widely used in office machinery, paper machinery, printing machinery, printing presses, insulated jacket, UV lamp.
FEP heat shrink tubing is the best material for Lamp shatter proof. Because FEP material has excellent UV transmission spectrum up to
90%. Normal heat shrink tubing for T5, T8, T12 lamp.
Properties:
| Property | Typical Performance |
| Density | 2.12-2.17 g/cc |
| hardness shore D | 55 D-65D |
| Tensile Strength(Mpa) | 19-22 Mpa |
| Elongation(%) | 300-400% |
| flammability | VW-0 |
| water absorption | ≤ 0.01% |
| thermal conductivity | 0.2 W/m-k |
| dielectric constant | 25-30kv/mm |
| Max work temperature | -60 to 200°C |
Specification:
| OD(MM) mm |
mm
|
mm |
| 1 | 0.8 | 0.15-0.2 | 10 |
| 1.5 | 1.2 | 0.15-0.2 | 10 |
| 2.0 | 1.6 | 0.15-0.2 | 10 |
| 3.0 | 2.2 | 0.15-0.2 | 10 |
| 4.0 | 3.0 | 0.2-0.25 | 10 |
| 4.5 | 3.3 | 0.2-0.25 | 10 |
| 5.5 | 4.3 | 0.2-0.25 | 10 |
| 7.0 | 5.1 | 0.2-0.35 | 10 |
| 8 | 6.0 | 0.2-0.35 | 10 |
| 10 | 7.4 | 0.2-0.45 | 10 |
| 12 | 8.8 | 0.2-0.45 | 10 |
| 14 | 10.7 | 0.2-0.45 | 10 |
| 19 | 16.5 | 0.2-0.45 | 10 |
| 24 | 19.5 | 0.2-0.45 | 10 |
| 30 | 24 | 0.2-0.45 | 10 |
| 33 | 27 | 0.2-0.45 | 10 |
| 35 | 28 | As you need | As you need |
| 40 | 31 | ||
| 45 | 35 | ||
| 50 | 39 | ||
| 55 | 43 | ||
| 60 | 46 | ||
| 70 | 54 | ||
| 75 | 58 | ||
| 80 | 62 | ||
| 90 | 70 | ||
| 100 | 75 | ||
| 150 | 120 | ||
| 215 | 180 |
FAQ
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
