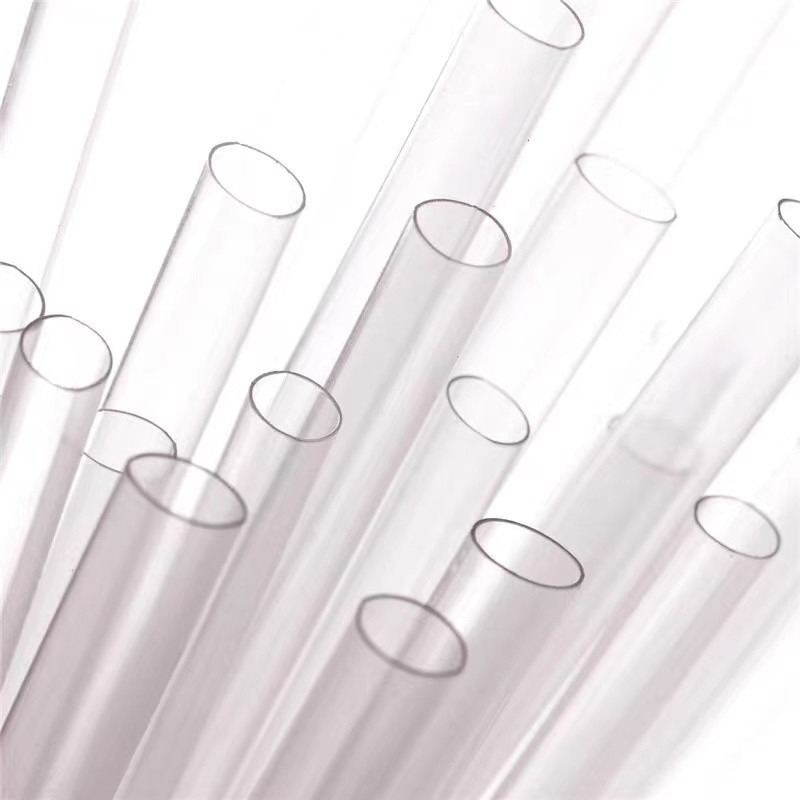

Clear Heat Shrink Insulation Tube

Place of Origin China
Brand Name Long
Certification ISO9001
Model Number FEP-1
Minimum Order Quantity 100m
Price 0.04
Packaging Details Carton/pallet
Delivery Time 1-9days
Payment Terms T/T, D/P, D/A, Western Union, MoneyGram, L/C
Supply Ability 400000meter per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material FEP Colour Clear
Certicite ISO9001 Feature Shrink Ratio: 1.3:1
Density 2.12-2.17 G/cc Tensile Strength(Mpa) 19-22 Mpa
Max Work Temperature -60 To 200°C Operating Temperature -180°C ~ 200 °C
Highlight

Clear Heat Shrink Insulation Tube

,

19mpa Heat Shrink Insulation Tube

,

FEP insulation resilient heat shrink tube

Leave a Message
Product Description

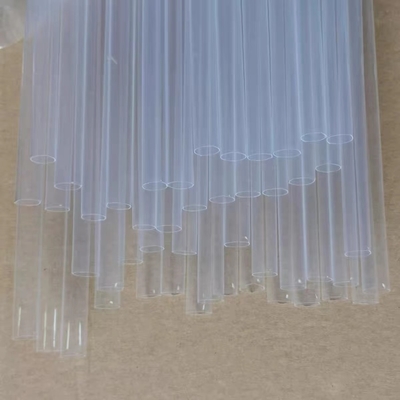

FEP heat shrink tubing



FEP heat shrink tubing has similar dielectric and frictional properties to PTFE heat shrink tubing. Except the Continuous operating temperature, FEP heat shrinkable tubing is suitable for continuous use at temperatures up to 200°C. But the begin shrink temperature of FEP tubing is just 130 °C, much lower than PTFE’s. This can be a significant advantage when used in conjunction with temperature sensitive components. The other advantage of FEP heat shrink tubing is that the max diameter of FEP heat shrink tubing we can produce is 215mm ID, much larger than PTFE’s.



Properties:



Property Typical Performance
Density 2.12-2.17 g/cc
hardness shore D 55 D-65D
Tensile Strength(Mpa) 19-22 Mpa
Elongation(%) 300-400%
flammability VW-0
water absorption ≤ 0.01%
thermal conductivity 0.2 W/m-k
dielectric constant 25-30kv/mm
Max work temperature -60 to 200°C


Features and Benefits:


1. Excellent insulation
2. Operating temperature -180°C ~ 200 °C
3. No burn in the air (Oxygen Index>95vol%)
4. Excellent corrosion resistance
5. Low Friction: Dynamic friction coefficient 0.2-0.3

6. UV resistance

7. Large diameter up to 215mm.

8. Customize ( diameter, wall thickness, and color)

9. Shrink ratio: 1.3:1

10. Lower shrink temperature 130 degree C to start shrink

11. Low pass for 5G using

Production process



We use new and pure raw material to produce our FEP heat shrink tubing, our raw material from Dakai, Dupond, Dongyue and Juhua. We donn;t use recycle material. So we just make high quality product.

We have infra-ray diameter gauge to measure the diameter to confirm the diameter suit the tolerance.

Bakai has our own clean room, we can producing product in the clean room for medical use.

Application:


Widely used in office machinery, paper machinery, printing machinery, printing presses, insulated jacket, UV lamp.




Specification:




ID pre-shrink
OD(MM)
post-shrink


wall thickness post-shrink




length
1 0.8 0.15-0.2 10
1.5 1.2 0.15-0.2 10
2.0 1.6 0.15-0.2 10
3.0 2.2 0.15-0.2 10
4.0 3.0 0.2-0.25 10
4.5 3.3 0.2-0.25 10
5.5 4.3 0.2-0.25 10
7.0 5.1 0.2-0.35 10
8 6.0 0.2-0.35 10
10 7.4 0.2-0.45 10
12 8.8 0.2-0.45 10
14 10.7 0.2-0.45 10
19 16.5 0.2-0.45 10
24 19.5 0.2-0.45 10
30 24 0.2-0.45 10
33 27 0.2-0.45 10
35 28 As you need As you need
40 31
45 35
50 39
55 43
60 46
70 54
75 58
80 62
90 70
100 75
150 120
215 180
