35mm Insulated Heat Shrink Connectors 42mm Red Yellow Blue Waterproof Solder Wire

Brand Name:	Long
Model Number:	SBRS
MOQ:	1piece
Price:	0.029
Payment Terms:	T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability:	400000pieces per day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Material:

PE+Copper+Tin

Colour:

Red, Yellow And Blue

Feature:

Water Proof

Certificate:

ISO9001&ROHS

MOQ:

100Pieces

Lead Time:

1-3days

Expanded Min(mm):

4.8mm

Recovered Max(mm):

1.2mm

Packaging Details:

bag/Carton

Supply Ability:

400000pieces per day

Highlight:

35mm insulated heat shrink connectors

42mm insulated heat shrink connectors

Blue Waterproof Solder Wire

Product Description

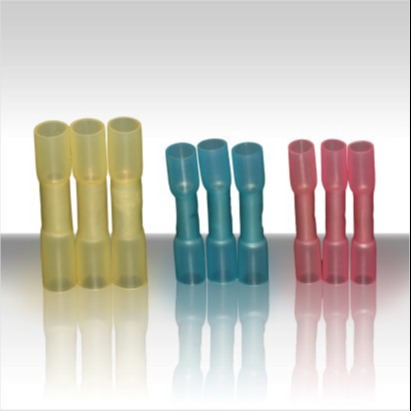

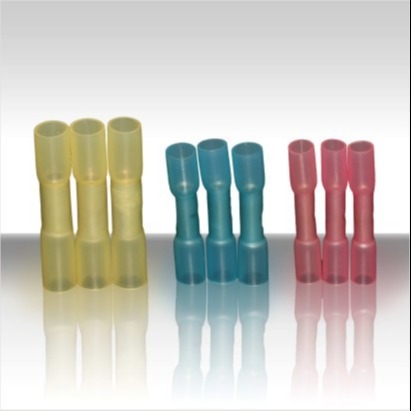

Red Yellow Blue White Heat Shrink Connector Insulated And Waterproof Connector

Heat Shrink Insulation Connectors

Crystal clear, semi-rigid, adhesive lined tubing with integral solderless splice connector

Features

● Exceptional clarity for visual confirmation of seal

● Seal& protects against water, corrosive compounds, moisture& contaminants

● Tough, durable heat shrink tubing resists abrasion, crimp tool damage& splitting

● Shrinks 40% faster than nylon, preventing.

● Inner adhesive bonds to plastics, rubbers & metals

● Meets& conforms to OEM wiring specifications for installation& repairs

● Continuous operating temperature:-45℃- 125℃

● Minimum shrinking temperature: 90℃

Code	Size		Tube Diameter			Color	Standard Package
Code	AWG	mm2	Expanded Min(mm)	Recovered Max(mm)	Length (mm)	Color	Standard Package
SBRS-DZ-1	22-18	0.5-1.0	4.8	1.2	35.0	red	1000pc/bag
SBRS-DZ-2	16-14	1.5-2.5	5.5	1.4	35.0	blue	1000pc/bag
SBRS-DZ-3	12-10	4.0-6.0	6.5	1.5	42.0	yellow	500pc/bag

Technical Data

Property	Test Method	Stantard	Typical Performance
Tensile Strengtn(MPa)	ASTM D2671	≥14	16
Elongation(%)	ASTM D2671	≥300	450
Tensile Strengtn after aging (MPa)	UL224 158℃X168hr	≥7.3	15
Elongation after aging(%)	UL224 158℃X168hr	≥200	350
Dieletric strength(kv/mm)	IEC243	≥15	17.5
Volume resistivity(Ω.cm)	ASTM D876	≥1X1014	2.5X1014

Adhesive

Property	Test Method	Stantard
Water Absorption	ASTM D570	≤0.2%
Sofening Point(℃)	ASTM E28	90±5
Strength of pearing(PE)	ASTM D 1000	120N/25mm
Strength of pearing(AL)	ASTM D 1000	80N/25mm
