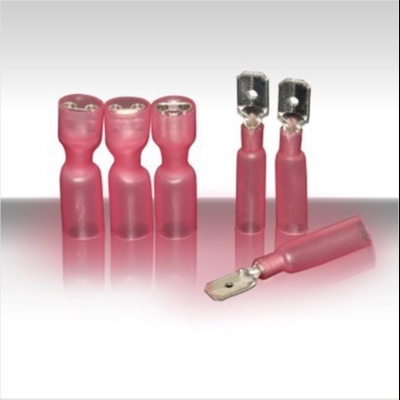

Red Solder And Heat Shrink Connectors AWG22-18 Solder Seal Wire Terminals
| Place of Origin | China |
|---|---|
| Brand Name | Long |
| Certification | ISO |
| Model Number | AWG22-18 |
| Minimum Order Quantity | 1piece |
| Price | 0.029 |
| Packaging Details | bag/Carton |
| Delivery Time | 1-9days |
| Payment Terms | T/T, D/P, D/A, L/C, Western Union, MoneyGram |
| Supply Ability | 400000pieces per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PE+Copper | Color | Red |
|---|---|---|---|
| Feature | Crystal Clear, Semi-rigid, Adhesive Lined Tubing With Integral Solderless Splice Connector | Exceptional Clarity For | Visual Confirmation Of Seal |
| Seal& Protects Against | Water, Corrosive Compounds, Moisture& Contaminants | Tough, Durable Heat Shrink Tubing | Resists Abrasion, Crimp Tool Damage& Splitting |
| Shrink Ratio | Shrinks 40% Faster Than Nylon, Preventing. | •Inner Adhesive Bonds To | Plastics, Rubbers & Metals |
| Highlight | red solder and heat shrink connectors,awg22 solder and heat shrink connectors,awg18 solder seal wire terminals |
||
Product Description
AWG22-18 Red Heat Shrink Insulation Connectors PE Add Copper
Crystal clear, semi-rigid, adhesive lined tubing with integral solderless splice connector
Features
• Exceptional clarity for visual confirmation of seal
• Seal& protects against water, corrosive compounds, moisture& contaminants
• Tough, durable heat shrink tubing resists abrasion, crimp tool damage& splitting
• Shrinks 40% faster than nylon, preventing.
• Inner adhesive bonds to plastics,
rubbers & metals
• Meets& conforms to OEM wiring specifications
for installations repairs
• Continuous operating temperature:-45°C-125°C
• Minimum shrinking temperature: 80°C
Dimensions
| Code | Size | Tube Diameter | Color | Standard Package | |||
| AWG | mm2 |
Expanded Min(mm) |
Recovered Max(mm) |
Length (mm) | |||
| SBRS-DZ-1 | 22-18 | 0.5-1.0 | 4.8 | 1.2 | 35.0 | red | 1000pc/bag |
| SBRS-DZ-2 | 16-14 | 1.5-2.5 | 5.5 | 1.4 | 35.0 | blue | 1000pc/bag |
| SBRS-DZ-3 | 12-10 | 4.0-6.0 | 6.5 | 1.5 | 42.0 | yellow | 500pc/bag |
Technical Data
| I Property | Test Method | Standard | Typical Performance I |
| Tensile Strength(MPa) | ASTM D2671 | >14 | 16 |
| Elongation(%) | ASTM D2671 | >300 | 450 |
| Tensile Strength after aging (MPa) | UL224 158°CX168hr | >7.3 | 15 |
| Elongation after aging(%) | UI224 158°CX168hr | >200 | 350 |
| Dieletric strength(kV/mm) | IEC 60243 | >15 | 17.5 |
| Volume resistivity(Q.cm) | IEC 60093 | >1X1014 | 2.5X1014 |
Adhesive
| Property | Test Method | Standard I |
| Water Absorption | ASTM D570 | <0.5% |
| Sofening Point(°C) | ASTM E28 | 95±5 |
| Strength of pearing(PE) | ASTM D 1000 | 120N/25mm |
| Strength of pearing(AL) | ASTM D 1000 | 80N/25mm |
