65d Clear Heat Shrink Tubing FEP , 200C Waterproof Heat Shrink Tubing
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | FEP | Colour | Clear |
---|---|---|---|
Certicite | ISO9001 | Feature | Shrink Ratio: 1.3:1 |
Density | 2.12-2.17 G/cc | Tensile Strength(Mpa) | 19-22 Mpa |
Max Work Temperature | -60 To 200°C | Operating Temperature | -180°C ~ 200 °C |
Highlight | 65d Clear Heat Shrink Tubing,FEP clear heat shrink tubing,200C waterproof heat shrink tubing |

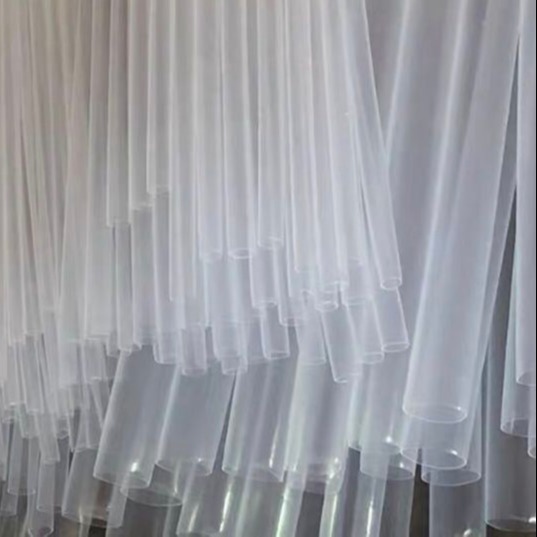

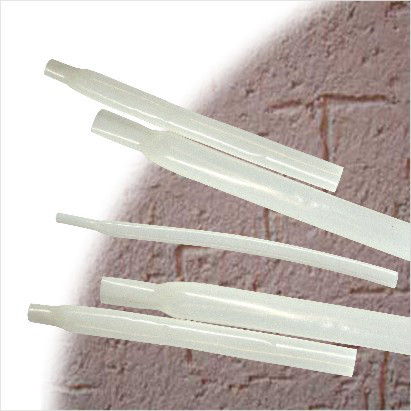

FEP heat shrink tubing
FEP heat shrink tubing has similar dielectric and frictional properties to PTFE heat shrink tubing. Except the Continuous operating temperature, FEP heat shrinkable tubing is suitable for continuous use at temperatures up to 200°C. But the begin shrink temperature of FEP tubing is just 130 °C, much lower than PTFE’s. This can be a significant advantage when used in conjunction with temperature sensitive components. The other advantage of FEP heat shrink tubing is that the max diameter of FEP heat shrink tubing we can produce is 215mm ID, much larger than PTFE’s.
Properties:
Property | Typical Performance |
Density | 2.12-2.17 g/cc |
hardness shore D | 55 D-65D |
Tensile Strength(Mpa) | 19-22 Mpa |
Elongation(%) | 300-400% |
flammability | VW-0 |
water absorption | ≤ 0.01% |
thermal conductivity | 0.2 W/m-k |
dielectric constant | 25-30kv/mm |
Max work temperature | -60 to 200°C |
Features and Benefits:
1. Excellent insulation
2. Operating temperature -180°C ~ 200 °C
3. No burn in the air (Oxygen Index>95vol%)
4. Excellent corrosion resistance
5. Low Friction: Dynamic friction coefficient 0.2-0.3
6. UV resistance
7. Large diameter up to 215mm.
8. Customize ( diameter, wall thickness, and color)
9. Shrink ratio: 1.3:1
10. Lower shrink temperature 130 degree C to start shrink
11. Low pass for 5G using
Production process
We use new and pure raw material to produce our FEP heat shrink tubing, our raw material from Dakai, Dupond, Dongyue and Juhua. We donn;t use recycle material. So we just make high quality product.
We have infra-ray diameter gauge to measure the diameter to confirm the diameter suit the tolerance.
Bakai has our own clean room, we can producing product in the clean room for medical use.
Application:
Widely used in office machinery, paper machinery, printing machinery, printing presses, insulated jacket, UV lamp.
Specification:
ID pre-shrink |
OD(MM) post-shrink |
|
length |
1 | 0.8 | 0.15-0.2 | 10 |
1.5 | 1.2 | 0.15-0.2 | 10 |
2.0 | 1.6 | 0.15-0.2 | 10 |
3.0 | 2.2 | 0.15-0.2 | 10 |
4.0 | 3.0 | 0.2-0.25 | 10 |
4.5 | 3.3 | 0.2-0.25 | 10 |
5.5 | 4.3 | 0.2-0.25 | 10 |
7.0 | 5.1 | 0.2-0.35 | 10 |
8 | 6.0 | 0.2-0.35 | 10 |
10 | 7.4 | 0.2-0.45 | 10 |
12 | 8.8 | 0.2-0.45 | 10 |
14 | 10.7 | 0.2-0.45 | 10 |
19 | 16.5 | 0.2-0.45 | 10 |
24 | 19.5 | 0.2-0.45 | 10 |
30 | 24 | 0.2-0.45 | 10 |
33 | 27 | 0.2-0.45 | 10 |
35 | 28 | As you need | As you need |
40 | 31 |
45 | 35 |
50 | 39 |
55 | 43 |
60 | 46 |
70 | 54 |
75 | 58 |
80 | 62 |
90 | 70 |
100 | 75 |
150 | 120 |
215 | 180 |
