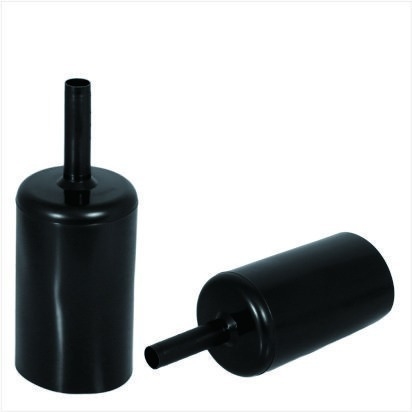

Adhesive Lined Heat Shrink Insulation Tube 22mm 3.2mm End Cap
| Place of Origin | China |
|---|---|
| Brand Name | Long |
| Certification | ISO |
| Model Number | SBRS-CAPS |
| Minimum Order Quantity | 1piece |
| Packaging Details | bag/Carton |
| Delivery Time | 1-9days |
| Payment Terms | D/A, D/P, T/T, L/C, Western Union, MoneyGram |
| Supply Ability | 400000pieces per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PE | Colour | Black |
|---|---|---|---|
| Shrink Ratio | 4:1 | Inner Wall | With Glue |
| Size | 3.2mm | Standard Length | 22mm |
| Continuous Operating Temperature | -45℃- 125℃ | Minimum Shrinking Temperature | 125℃ |
| Highlight | Adhesive Lined Heat Shrink Insulation Tube,22mm Heat Shrink Insulation Tube,3.2mm heat shrink end cap |
||
Product Description

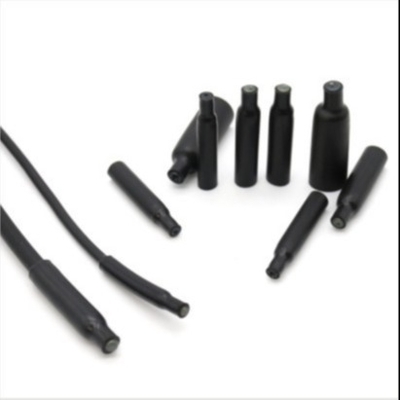

Adhesive-Lined Insulating Caps
Adhesive lined, heat shrink insulating caps specifically designed to insulate, seal and protect end or stub splices in wiring harness and electronic assemblies
Features
● 4:1 shrink ratio allows fewer sizes to cover a wide range of profiles
● Seals and protects against water, moisture and chemical
● Adhesive bonds readily to PVC, XLPE and PP-EPDM cable jackets
● Shrinks rapidly for quick installation
● Continuous operating temperature:-45℃- 125℃
● Minimum shrinking temperature: 125℃
Dimensions
|
Code |
Size (mm) |
Standard Length(mm) | Expanded | Recoverd | ||||
| Internal Diameter Min(mm) | Internal Diameter Max(mm) | Outer Layer Thickness (mm) | Adhesive Thickness (mm) | Total Wall Thickness (mm) | ||||
| A | B | |||||||
| CAPS-1 | 3.2 | 22 | 12.7 | 3.2 | 0.80 | 0.64 | 0.56 | 1.20 |
| CAPS-2 | 4.8 | 25.4 | 15.2 | 4.8 | 1.30 | 0.76 | 0.76 | 1.52 |
| CAPS-3 | 6.4 | 28.4 | 15.2 | 6.4 | 1.52 | 1.00 | 0.91 | 1.91 |
| CAPS-4 | 9.5 | 31.8 | 18.3 | 9.5 | 2.00 | 1.08 | 1.00 | 2.08 |
| CAPS-5 | 12.7 | 38.1 | 21.6 | 12.7 | 2.41 | 1.30 | 1.24 | 2.54 |
Technical Data
| Property | Test Method | Stantard | Typical Performance |
| Tensile Strengtn(MPa) | ASTM D2671 | ≥10.4 | 11.5 |
| Elongation(%) | ASTM D2671 | ≥300 | 450 |
| Tensile Strengtn after aging (MPa) | UL224 158℃X168hr | ≥7.3 | 8.5 |
| Elongation after aging(%) | UL224 158℃X168hr | ≥200 | 350 |
| Dieletric strength(kv/mm) | IEC243 | ≥15 | 17.5 |
| Volume resistivity(Ω.cm) | ASTM D876 | ≥1X1014 | 2.5X1014 |
Adhesive
| Property | Test Method | Stantard |
| Water Absorption | ASTM D570 | ≤0.2% |
| Sofening Point(℃) | ASTM E28 | 90±5 |
| Strength of pearing(PE) | ASTM D 1000 | 120N/25mm |
| Strength of pearing(AL) | ASTM D 1000 | 80N/25mm |
FAQ
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
