Yellow 2.0mm Heat Shrink Insulation Tube Wire Markers 0.5 Mm Heat Shrink Tubing

  • Yellow 2.0mm Heat Shrink Insulation Tube Wire Markers 0.5 Mm Heat Shrink Tubing
  • Yellow 2.0mm Heat Shrink Insulation Tube Wire Markers 0.5 Mm Heat Shrink Tubing
Place of Origin China
Brand Name Long
Certification ISO
Model Number 2.0mm
Minimum Order Quantity 1piece
Price 0.05
Packaging Details Roll/Carton
Delivery Time 1-9days
Payment Terms T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability 400000meters per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material The Sleeving Shall Be Fabricated From Irradiated, Thermally Stabilized And Flame Retarded Modified Polyolefin Compound Application Range Military Industry; Aerospace & Defense; Marine;
Operating Temperature Range -55~+135℃ Minimum Recovery Temperature +135℃
Maximum Storage Temperature +50℃ Shrink Ratio 2:1
Color Yellow MOQ 1m
Highlight

yellow Heat Shrink Insulation Tube

,

0.5mm Heat Shrink Insulation Tube

,

0.5 mm heat shrink tubing
Leave a Message
Product Description

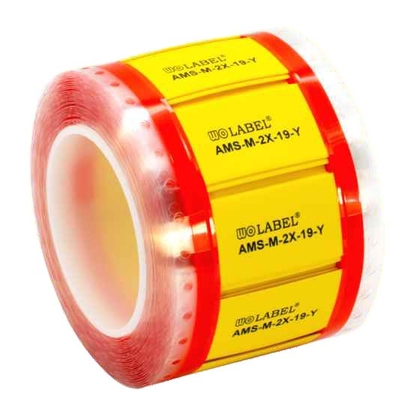

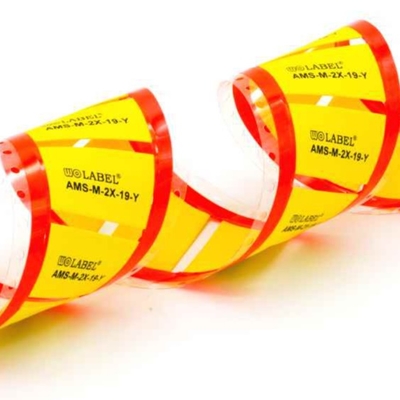

Yellow Identification Products For Wire And Cable Heat Shrink Markers



A comprehensive line of heat shrinkable sleeves,labels,tie-on cable markers to meet a broad
range of needs including UL,CSA and Mil-Spec requirements,for a variety of Applications.
WOER's identification sleeves are Heat shrinkable marking sleeves for wire and cable
identification.Made from permanent,flame retarded,radiation crosslinked heat shrinkable
polyolefin.This identification sleeves are permanent immediately after printing and remain
legible even when exposed to abrasion,aggressive cleaning solvents.



CONTENTS



Military Identification Sleeves

Description: AMS marker sleeves are designed to meet the wire and cable
permanent marking needs. It is made of durable and flame retardant heat
shrinkable polyolefin, and radiation cross-linked by high energy electronic beam.
Standard: AMS meets AMS-DTL-23053/5 Class 1&3, SAE-AS 81531, MIL-
STD-202F/Method 215J, UL224, VW-1, RoHS.



Features



Material The sleeving shall be fabricated from irradiated, thermally stabilized and flame retarded modified polyolefin compound
Application range Military industry; Aerospace & defense; Marine;
Operating temperature range -55~+135℃
Minimum recovery temperature +135℃
Maximum storage temperature +50℃
Shrink ratio 2:1, 3:1
Color White, Yellow, other color is available if ordered
Part Number As Supplied (mm) After Recovery(mm)


ID

(D)

Flatten Width

(W)

 Double Wall Thickness

ID

(d)

 Single Wall Thickness
AMS-M-2X-1.6- 2.0010.20 3.7±0.3 0.48±0.10 <0.79 0.45±0.06
AMS-M-2X-2.4- 2.79±0.20 5.0±0.3 0.48±0.10 M1.18 0.49±0.06
AMS-M-2X-3.2- 3.64±0.23 6.310.4 0.48±0.10 “59 0.51±0.06
AMS-M-2X-4.8- 5.2610.25 8.9±0.4 0.49±0.10 52.36 0.54±0.06
AMS-M-2X-6.4- 6.9210.28 11.5±0.4 0.50±0.10 <3.18 0.56±0.06
AMS-M-2X-9.5- 10.2±0.32 16.7±0.5 0.51±0.11 W4.75 0.59±0.06
AMS-M-2X-12.7- 13.5±0.36 21.8±0.6 0.52±0.11 <6.35 0.60±0.07
AMS-M-2X-19- 20.110.40 32.2±0.6 0.53±0.11 59.53 0.62±0.07
AMS-M-2X-25- 26.710.45 42.5±0.7 0.55±0.12 引2.7 0.63±0.07
AMS-M-2X-38- 39.8±0.51 63.2±0.8 0.57±0.12 M19.1 0.64±0.07
AMS-M-2X-51- 53.0±0.56 83.9±0.9 0.58±0.13 M25.4 0.64±0.08
AMS-M-2X-76- 79.410.56 125.3±1.0 0.59±0.13 <38.1 0.64±0.09
