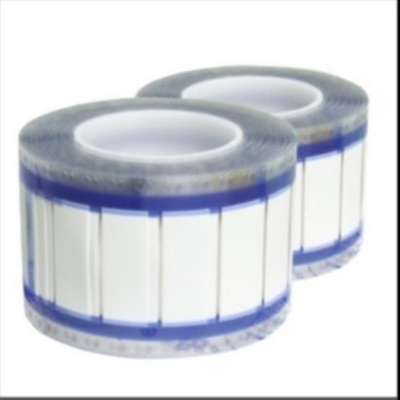

2.0mm 3/1 Heat Shrink Insulation Tube , Blank Heat Shrink Wire Marker

2.0mm 3/1 Heat Shrink Insulation Tube , Blank Heat Shrink Wire Marker

2.0mm 3/1 Heat Shrink Insulation Tube , Blank Heat Shrink Wire Marker

Brand Name: Long
Model Number: 2.0mm
MOQ: 1piece
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 400000meters per day
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO
Colour:
Blank White
Application Range Operating Temperature Range:
-55~+125°C
Minimum Recovery Temperature:
+125°C
Maximum Storage Temperature:
+50°C
Shrink Ratio:
2：1,3:1
Printing Mode:
Single Sided Printing And Double Sided Printing Formats Available
Supplied Mode:
Either Continuous Type Or Ladder Format Type Is Available
Recommended Ribbons:
N85 Resin Ribbon, Black, 100mm(width)*300m(length)
Packaging Details:
Roll/Carton
Supply Ability:
400000meters per day
Highlight:

2.0mm Heat Shrink Insulation Tube

,

3/1 Heat Shrink Insulation Tube

,

Blank Heat Shrink Wire Marker

Product Description

Blank Heat Shrinkale Identification Sleeves Heat Shrink Marker Sleeve

Heat Shrinkable Identification Sleeves

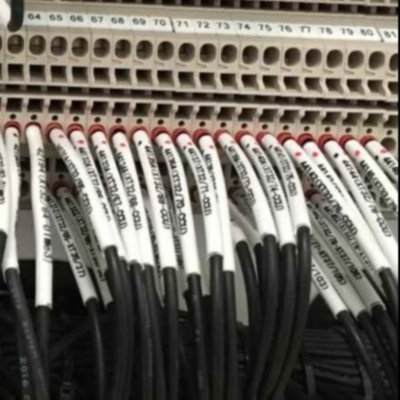

Description: RSFR marker sleeve is a flattened, heat-shrinkable tubing intended for wire and cable harness identification. It can also be used for applications where limited fire hazard characteristics are necessary. When RSFR is printed with Woer recommended printers and ink ribbons, the marks remain legible, durable, even when exposed to abrasion, aggressive cleaning solvents, and industrial fluids.Standard: SAE-AS81531, MIL-STD-202F/Method215J, UL224, RoHS.

Features



Material

Application range

Operating temperature range

The sleeving shall be fabricated from irradiated, thermally stabilized and flame retarded modified polyolefin compound containing no halogens or cadmium in the formulation.

commercial .Industrial environment

-55~+125°C
Minimum recovery temperature +125°C
Maximum storage temperature +50°C
Shrink ratio 2:1,3:1
Color White, Yellow, other color is available if ordered
Printing mode Single sided printing and Double sided printing formats available
Supplied mode Either Continuous type or Ladder format type is available
Recommended Printers Thermal transfer printer
Recommended Ribbons N85 resin ribbon, Black, 100mm(width)*300m(length)



Dimensions

Shrink ratio-2X



Part Number As Supplied (mm) After Recovery(mm)

ID

(D)

Flatten Width

(W)

 Double Wall Thickness

ID

(d)

 Single Wall Thickness
AMS-M-2X-1.6- 2.0010.20 3.7±0.3 0.48±0.10 <0.79 0.45±0.06
AMS-M-2X-2.4- 2.79±0.20 5.0±0.3 0.48±0.10 M1.18 0.49±0.06
AMS-M-2X-3.2- 3.64±0.23 6.310.4 0.48±0.10 “59 0.51±0.06
AMS-M-2X-4.8- 5.2610.25 8.9±0.4 0.49±0.10 52.36 0.54±0.06
AMS-M-2X-6.4- 6.9210.28 11.5±0.4 0.50±0.10 <3.18 0.56±0.06
AMS-M-2X-9.5- 10.2±0.32 16.7±0.5 0.51±0.11 W4.75 0.59±0.06
AMS-M-2X-12.7- 13.5±0.36 21.8±0.6 0.52±0.11 <6.35 0.60±0.07
AMS-M-2X-19- 20.110.40 32.2±0.6 0.53±0.11 59.53 0.62±0.07
AMS-M-2X-25- 26.710.45 42.5±0.7 0.55±0.12 引2.7 0.63±0.07
AMS-M-2X-38- 39.8±0.51 63.2±0.8 0.57±0.12 M19.1 0.64±0.07
AMS-M-2X-51- 53.0±0.56 83.9±0.9 0.58±0.13 M25.4 0.64±0.08
AMS-M-2X-76- 79.410.56 125.3±1.0 0.59±0.13 <38.1 0.64±0.09



Shrink ratio-3X



Part Number As Supplied (mm) After Recovery(mm)

ID

(D)

Flatten Width

(W)

Double Wall

Thickness

ID

(d)

 Single Wall Thickness
AMS-M-3X-1.6- 2.00±0.20 3.7±0.3 0.47±0.10 <0.53 0.52±0.06
AMS-M-3X-2.4- 2.79±0.20 5.0±0.3 0.47±0.10 50.79 0.57±0.06
AMS-M-3X-3.2- 3.6410.23 6.3±0.4 0.48±0.10 引.06 0.61±0.06
AMS-M-3X-4.8- 5.2610.25 8.9±0.4 0.49±0.10 M1.59 0.67±0.06
AMS-M-3X-6.4- 6.9210.28 11.5±0.4 0.50±0.10 M2.13 0.71±0.06
AMS-M-3X-9.5- 10.2±0.32 16.7±0.5 0.52±0.11 M3.18 0.77±0.06
AMS-M-3X-12.7- 13.5±0.36 21.8±0.6 0.53±0.11 ,4.23 0.80±0.07
AMS-M-3X-19- 20.110.40 32.2±0.6 0.55±0.11 56.35 0.84±0.07
AMS-M-3X-25- 26.710.45 42.5+0.7 0.565±0.12 <8.47 0.86±0.07
AMS-M-3X-38- 39.810.51 63.2±0.8 0.57±0.12 M12.9 0.89±0.07
AMS-M-3X-51- 53.010.56 83.9±0.9 0.57±0.12 S17.2 0.90±0.08
AMS-M-3X-76- 79.4±0.56 125.3±1.0 0.57±0.13 £25.8 0.92±0.09



2.0mm 3/1 Heat Shrink Insulation Tube , Blank Heat Shrink Wire Marker 0
