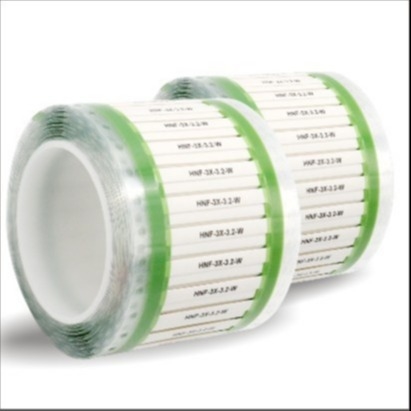

3.2mm 1.6mm Heat Shrink Insulation Tube Cable Marker 300m
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xStandard | AMS-DTL-23053/18, SAE-AS 81531, MIL-STD-202F/Method 215J, UL224, RoHS | Application Range | Aerospace, Defense And Mass Transit Industries. |
---|---|---|---|
Operating Temperature Range | -55~+225°C | Minimum Recovery Temperature | +150°C |
Maximum Storage Temperature | +5(rc | Recommended Ribbons | N95 Resin Ribbon, Black, 100mm(width)*300m(length) |
MOQ | 1piece | Packing | Small Box Packing (PCS/Box) |
Highlight | 3.2mm Heat Shrink Insulation Tube,1.6mm Heat Shrink Insulation Tube,300m heat shrink cable marker |
High Temperature Heat Shrinkable Identification Sleeves White Colour
High-temperature,Heat Shrinkable Identification Sleeves
Description: PSFR marker sleeve is flattened, heat-shrinkable tubing designed for wire and cable identification in high temperature applications orwhere extreme resistance to fuels, lubricants and cleaning solvents is required. When PSFR is printed with Woer recommended printers and ink ribbon, the marks remain legible, durable, even when exposed to abrasion, aggressive cleaning solvents, and industrial fluids.
Ordering Size (PSFR-M-2X) | Ladder Format Type | Continuous Type |
Small Box Packing (PCS/Box) | Paper reel Packing (m/reel) | |
(D2.4 | 2500 | 50 |
(D3.2 | 2000 | 100 |
(D4.8 | 2000 | 100 |
(P6.4 | 2000 | 100 |
CD9.5 | 1000 | 100 |
(D12.7 | 1000 | 100 |
(P19 | 500 | 100 |
(D25 | 500 | 100 |
(P38 | 500 | 50 |
Standard : AMS-DTL-23053/18, SAE-AS 81531, MIL-STD-202F/Method 215J,
UL224, RoHS
Features
Material | The sleeving shall be fabricated from irradiated, thermally stabilized and flame retarded modified PVDF |
Application range | Aerospace, defense and mass transit industries. |
Operating temperature range | -55~+225°C |
Minimum recovery temperature | +150°C |
Maximum storage temperature | +5(rc |
Shrink ratio | 2:1 |
Color | White, Yellow, other color is available if ordered |
Printing mode | Single sided printing and Double sided printing formats available |
Supplied mode | Either Continuous type or Ladder format type is available |
Recommended Printers | Thermal transfer printer |
Recommended Ribbons | N95 resin ribbon, Black, 100mm(width)*300m(length) |
Dimensions
Part Number | As Supplied (mm) | After Recovery(mm) | |
ID (D) | ID (d) | Single Wall Thickness | |
PSFR-2X-2.4-* | 2.4 | 1.2 | 0.2510.05 |
PSFR-2X-3.2-* | 3.2 | 1.6 | 0.2510.05 |
PSFR-2X-4.8-* | 4.8 | 2.4 | 0.2510.05 |
PSFR-2X-6.4-* | 6.4 | 3.2 | 0.3010.08 |
PSFR-2X-9.5-* | 9.5 | 4.8 | 0.30±0.08 |
PSFR-2X-12.7-* | 12.7 | 6.4 | 0.30±0.08 |
PSFR-2X-19.1-* | 19.1 | 9.5 | 0.4310.08 |
PSFR-2X-25.4-* | 25.4 | 12.7 | 0.4810.08 |
PSFR-2X-38.1-* | 38.1 | 19.1 | 0.6010.10 |
Package Information
Ordering Size (PSFR-M-2X) | Ladder Format Type | Continuous Type |
Small Box Packing (PCS/Box) | Paper reel Packing (m/reel) | |
(D2.4 | 2500 | 50 |
(D3.2 | 2000 | 100 |
(D4.8 | 2000 | 100 |
(P6.4 | 2000 | 100 |
CD9.5 | 1000 | 100 |
(D12.7 | 1000 | 100 |
(P19 | 500 | 100 |
(D25 | 500 | 100 |
(P38 | 500 | 50 |
