Heat Shrink 2.79mm Wire Identification Sleeves Markers Diesel Resistant
| Place of Origin | China |
|---|---|
| Brand Name | Long |
| Certification | ISO |
| Model Number | 3X-4.8 |
| Minimum Order Quantity | 1piece |
| Packaging Details | Roll/Carton |
| Delivery Time | 1-9days |
| Payment Terms | T/T, D/P, D/A, L/C, Western Union, MoneyGram |
| Supply Ability | 400000meters per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| 2.79mm Single Wall Thickness | 0.57±0.06 | Material | The Sleeving Shall Be Fabricated From Irradiated, Thermally Stabilized And Flame Retarded Modified Polyolefin Compound |
|---|---|---|---|
| MOQ | 1piece | Color | White |
| Shrink Ratio | 3:1 | Packing | Roll |
| Operating Temperature Range | -55~+135°C | Minimum Recovery Temperature | 130°C |
| Highlight | heat shrink Wire Identification Sleeves,2.79mm Wire Identification Sleeves,Diesel Resistant sleeve wire markers |
||
Product Description

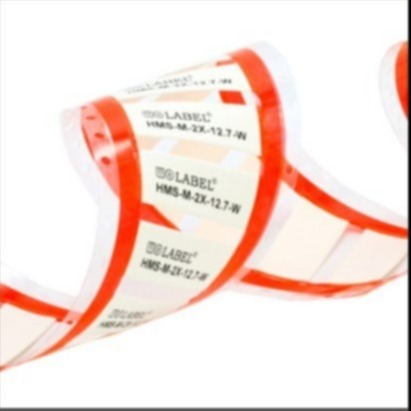

Diesel Resistant Identification Sleeves Heat Shrink Marker Sleeves
Diesel Resistant Identification Sleeves
Description: HMS marker sleeves are used to identify wires and cables where exposure to organic fluids, especially diesel oils, for long period of high of temperatures.
Standard : HMS meets AMS-DTL-23053/6 Class 1, NFF 00608 Categories A&H, SAE-AS 81531, MIL-STD-202F/Method 215J, RoHS
Features
| Material | The sleeving shall be fabricated from irradiated, thermally stabilized and flame retarded modified polyolefin compound |
| Application range | Military industry; Aerospace & defense; Marine; |
| Operating temperature range | -55~+135°C |
| Minimum recovery temperature | +135°C |
| Maximum storage temperature | +50°C |
| Shrink ratio | 3:1 |
| Color | White, Yellow, other color is available if ordered |
| Printing mode | Single sided printing and Double sided printing formats available |
| Supplied mode | Either Continuous type or Ladder format type is available |
| Recommended Printers | Either Thermal transfer printer or Laser printer is OK. |
| Recommended Ribbons | N85 resin ribbon, Black, 100mm(width)*300m(length) |
Dimensions
| Part Number | As Supplied (mm) | After Recovery(mm) | |||
|
ID (D) |
Flatten Width (W) |
Double Wall Thickness |
ID (d) |
Single Wall Thickness | |
| HMS-M-3X-2.4- | 2.79±0.20 | 5.0±0.3 | 0.47±0.10 | <0.79 | 0.57±0.06 |
| HMS-M-3X-3.2- | 3.64±0.23 | 6.3±0.4 | 0.48±0.10 | ^1.06 | 0.61±0.06 |
| HMS-M-3X-4.8- | 5.26±0.25 | 8.9±0.4 | 0.49±0.10 | W1.59 | 0.67±0.06 |
| HMS-M-3X-6.4- | 6.92±0.28 | 11.5±0.4 | 0.50±0.10 | <2.13 | 0.71±0.06 |
| HMS-M-3X-9.5- | 10.2±0.32 | 16.7±0.5 | 0.52±0.11 | <3.18 | 0.77±0.06 |
| HMS-M-3X-12.7- | 13.5±0.36 | 21.8±0.6 | 0.53±0.11 | <4.23 | 0.80±0.07 |
| HMS-M-3X-19- | 20.1±0.40 | 32.2±0.6 | 0.55±0.11 | <6.35 | 0.84±0.07 |
| HMS-M-3X-25- | 26.7±0.45 | 42.5±0.7 | 0.56±0.12 | <8.47 | 0.86±0.07 |
| HMS-M-3X-38- | 39.8±0.51 | 63.2±0.8 | 0.57±0.12 | <12.9 | 0.89±0.07 |
