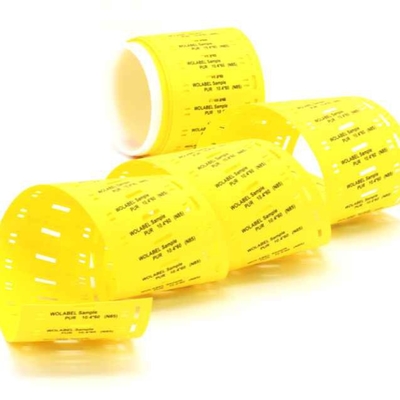

Yellow PUR Heat Shrink Cable Markers Wire Labels 30mpa

  • Yellow PUR Heat Shrink Cable Markers Wire Labels 30mpa
  • Yellow PUR Heat Shrink Cable Markers Wire Labels 30mpa
Place of Origin China
Brand Name Long
Certification ISO
Model Number 10-60-1K-Y
Minimum Order Quantity 1piece
Packaging Details Roll/Carton
Delivery Time 1-9days
Payment Terms T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability 400000meters per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Colour Yellow Use Can Be Easily Removed From The Carrier
Hardness DIN 53505 Density DIN53475
Tensile Strength DIN53504 Pack Size (pcs/coil) 1000
Feature Halogen Free Law Material The Raw Material Fulfills UL94-V0
Highlight

pur heat shrink cable markers Long

,

Long pur heat shrink cable markers

,

10-60-1K-Y pur heat shrink cable markers
Leave a Message
Product Description

Yellow PUR Indentification Tags Heat Shrink Cable Markers Of PE





Description: The PUR cable markers are made of a thermoplastic polyurethane material, which is a halogen free, flame retardant, hydrolysis and micro organism resistant material. The raw material fulfills UL94-V0. For identification of cables and wires, the markers are supplied on rolls for thermal transfer print.

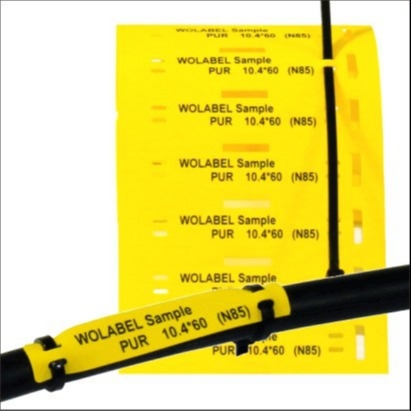

Use : Markers can be easily removed from the carrier, and applied to cables and wire bundles using cable dies. Thermal transfer printer and WO-80500BK ribbon are recommended for meeting printing performance requirements of SAE AS 81531 and MIL-STD-202F.



Physic Performance





Properties Test Method Typical value
Hardness DIN 53505 58 Shore D
Density DIN 53475 1.27g/cm3
Tensile strength DIN 53504 30MPa
Ultimate elongation DIN 53504 400%
Stress at 20% elongation DIN 53504 13MPa
Stress at 100% elongation DIN 53504 19MPa
Stress at 300% elongation DIN 53504 33MPa
Tear Strength DIN 53515 110N/mm
Abrasion Loss DIN 53516 30 mm3
Compression set at room temperature DIN EN ISO 815 30%
Compression set at 70°C DIN EN ISO815 45%
Notched impact strength (Charpy) +23°C DIN EN ISO 179 50 kj/m2



Specification and size





Order Code Color Pack size (pcs/coil) Marker high (mm) Marker length (mm)
PUR-M-4H-10-60-1K-W White 1000 10 60
PUR-M-4H-15-75-1 K-W White 1000 15 75
PUR-M-4H-25-75-0.5K-W White 500 25 75
PUR-M-4H-10-60-1K-BL Black 1000 10 60
PUR-M-4H-15-75-1 K-BL Black 1000 15 75
PUR-M-4H-25-75-0.5K-BL Black 500 25 75
PUR-M-4H-10-60-1K-Y Yellow 1000 10 60
PUR-M-4H-15-75-1K-Y Yellow 1000 15 75
PUR-M-4H-25-75-0.5K-Y Yellow 500 25 75
PUR-M-4H-10-60-1K-R Red 1000 10 60
PUR-M-4H-15-75-1K-R Red 1000 15 75
PUR-M-4H-25-75-0.5K-R Red 500 25 75



Yellow PUR Heat Shrink Cable Markers Wire Labels 30mpa 0







FAQ

Professional Production Quality is Reliable

Q1 . Which certifications or test reports do you have?

A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?

A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.

For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?

A : We have a lot of products in stock. We can send the stock products in 3 work days.

If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?

A : Yes. We can provide samples.

Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?

A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
