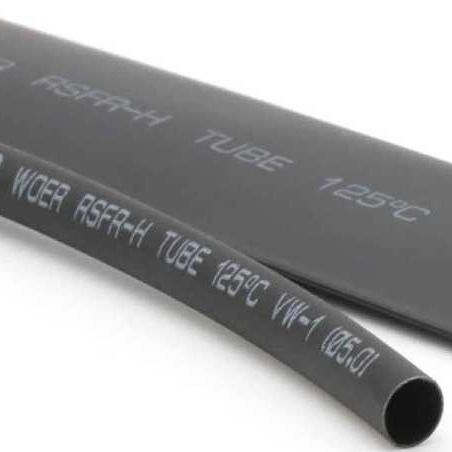

0.8mm Heat Shrink Insulation Tube ASTM D 2671 Flexible Thin Wall Halogen Free
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xWall | Ultra Thin Wall | Flexible | Flexible |
---|---|---|---|
Halogen Free Or Not | Halogen Free | Continuous Operating Temperature | -55°C To 125°C |
Fully Shrink Temperature | 124°C | Longitudinal Change(%) | -5%~+5% |
Tensile Strength(MPa) | 5=10.4 | Ultimate Elongation(%) | 2200 |
Highlight | 0.8mm Heat Shrink Insulation Tube,ASTM D 2671 Heat Shrink Insulation Tube,flexible thin heat shrink tubing |
Thin Wall Halogen Free,Flexible Heat Shrink Tubing With UL Certificate
Thin wall halogen free,flexible
heat shrink tubing.
Features
• Ultra thin wall
• Flexible
• Halogen free
• Flame retardant
• low smoke generation if burning
• Continuous operating
Temperature:-55°C to 125°C
• Fully shrink temperature: 125°C
• RoHS and Sony compliant
Dimensions
Size | As Supplied | After Recovery | Standard Package | ||
Inch | mm | Internal Diameter mm | Internal Diameter Max mm | Wall Thickness Nom mm | Spool Length M/spool |
3/64 | 0.8 | 1.1±0.2 | 0.50 | 0.22 | 200 |
1/16 | 1.0 | 1.5±0.2 | 0.65 | 0.28 | 200 |
1.5 | 2.0±0.2 | 0.85 | 0.32 | 200 | |
3/32 | 2.0 | 2.5±0.2 | 1.00 | 0.35 | 200 |
2.5 | 3.0+0.2 | 1.30 | 0.38 | 200 | |
1/8 | 3.0 | 3.5±0.2 | 1.50 | 0.40 | 200 |
3.5 | 4.0±0.2 | 1.80 | 0.42 | 200 | |
4.0 | 4.5±0.2 | 2.00 | 0.45 | 200 | |
3/16 | 4.5 | 5.0±0.2 | 2.30 | 0.50 | 100 |
5.0 | 5.5±0.2 | 2.5 | 0.55 | 100 | |
1/4 | 6.0 | 6.5±0.2 | 3.0 | 0.55 | 100 |
5/16 | 7.0 | 7.5±0.3 | 3.5 | 0.55 | 100 |
8.0 | 8.5+0.3 | 4.0 | 0.60 | 100 | |
3/8 | 9.0 | 9.5±0.3 | 4.5 | 0.60 | 100 |
10.0 | 10.5±0.3 | 5.0 | 0.60 | 100 | |
11.0 | 11.5±0.3 | 5.5 | 0.60 | 100 | |
1/2 | 12.0 | 12.510.3 | 6.0 | 0.60 | 100 |
13.0 | 13.5±0.3 | 6.5 | 0.65 | 100 | |
14.0 | 14.510.3 | 7.0 | 0.65 | 100 | |
5/8 | 15.0 | 15.5±0.4 | 7.5 | 0.70 | 100 |
16.0 | 16.5±0.4 | 8.0 | 0.70 | 100 | |
17.0 | 17.5+0.4 | 8.5 | 0.70 | 100 | |
3/4 | 18.0 | 19.010.5 | 9.0 | 0.80 | 100 |
20.0 | 21.0±0.5 | 10.0 | 0.80 | 100 | |
22.0 | 23.010.5 | 11.0 | 0.80 | 100 | |
1 | 25.0 | 26.010.5 | 12.5 | 0.90 | 50 |
28.0 | 29.010.5 | 14.0 | 0.90 | 50 | |
1-1/4 | 30.0 | 31.5±1.0 | 15.0 | 0.95 | 50 |
35.0 | 36.5±1.0 | 17.5 | 1.00 | 50 | |
1-1/2 | 40.0 | 41.5+1.0 | 20.0 | 1.00 | 50 |
45.0 | 46.511.0 | 22.5 | 1.00 | 25 | |
2 | 50.0 | >50 | 25.0 | 1.00 | 25 |
60.0 | N60 | 31.0 | 1.30 | 25 | |
70.0 | >70 | 36.0 | 1.30 | 25 | |
3 | 80.0 | )80 | 41.0 | 1.46 | 25 |
90.0 | >90 | 46.0 | 1.46 | 25 | |
4 | 100.0 | ^100 | 51.0 | 1.46 | 25 |
5 | 120.0 | >120 | 61.0 | 1.56 | 25 |
6 | 150.0 | >150 | 76.0 | 1.56 | 25 |
7 | 180.0 | >180 | 91.0 | 1.56 | 25 |
Technical Data
I Property I | Test Method | Typical Performance I |
Tensile strength(MPa) | ASTM D 2671 | 5=10.4 |
Ultimate elongation(%) | ASTM D 2671 | 2200 |
Tensile strength after heat aged (Mpa) | 158°CX168h | N7.3 |
Ultimate elongation after heat aged (%) | 158°CX168h | ^100 |
Longitudinal change(%) | ASTM D 2671 | -5%~+5% |
Flammability | ASTM D 2671 C method | VW-1 |
Dielectric strength (kV/mm) | ASTM D 149 | M15 |
Volume resistivity (Q-cm) | ASTM D 876 | mio" |
