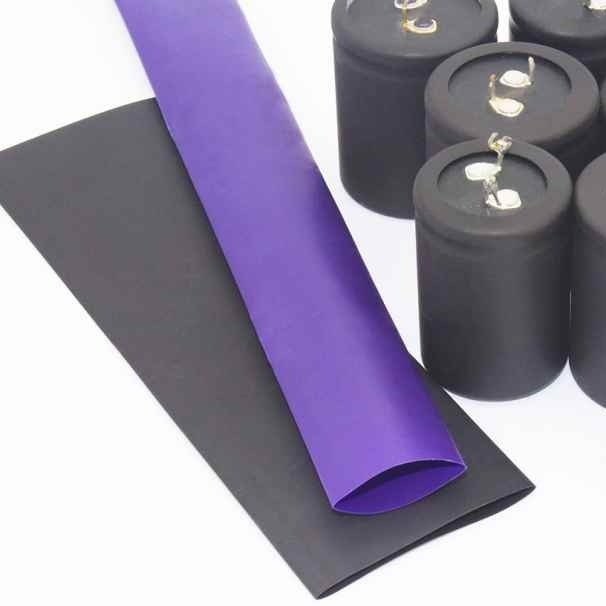

Purple Heat Shrink Insulation Tube 2x PE 6mm Fire Resistant
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | PE | Color | Purple |
---|---|---|---|
MOQ | 10meter | Wall | Ultra Thin Wall |
Glue | Without Glue | Flame | Flame Retardant |
Tensile Strength(MPa) | >10.4 | ||
Highlight | purple Heat Shrink Insulation Tube,2x Heat Shrink Insulation Tube,PE 6mm heat shrink tubing |
Purple PE Flame Retardant Multi Purpose Heat Shrink Tubing With Shrink Raito 2X
Flame retardant,multi-purpose
heat shrink tubing
Features
• Flexible
• Suitable for various applications
• Continuous Operating Temperature:-55°C to 135°C
• Fully shrink temperature: 120°C
• RoHS compliant
• Meet SAE-AMS-DTL
Dimensions
Size | As Supplied | After Recovery | Standard Package | ||
Inch | mm | Internal Diameter mm | Internal Diameter mm | Wall Thickness mm | Spool Lenqth M/spooF |
3/64 | 1.0 | N1.20 | W0.60 | 0.41±0.10 | 200 |
1/16 | 1.5 | 5=1.60 | W0.80 | 0.43±0.10 | 200 |
3/32 | 2.5 | N2.40 | W1.20 | 0.51±0.10 | 200 |
1/8 | 3.0 | N3.20 | ^1.60 | 0.5110.10 | 200 |
3/16 | 4.5 | ^4.80 | <2.40 | 0.51±0.10 | 100 |
1/4 | 6.0 | N6.4. | W3.20 | 0.64±0.10 | 100 |
3/8 | 9.0 | N9.50 | W4.80 | 0.64±0.10 | 100 |
1/2 | 12 | 5=12.7 | <6.40 | 0.64±0.10 | 100 |
3/4 | 18 | N19.1 | W9.50 | 0.76±0.15 | 100 |
1 | 25 | N25.4 | W12.7 | 0.89±0.15 | 50 |
5/4 | 32 | N32 | W15.9 | 0.8910.15 | 50 |
3/2 | 38 | N38 | W19.1 | 1.00±0.15 | 50 |
2 | 50 | N51 | <25.4 | 1.15±0.15 | 25 |
3 | 75 | N76 | W38.1 | 1.27±0.20 | 25 |
4 | 100 | N102 | W50.8 | 1.40±0.20 | 25 |
5 | 120 | 25 | W63.5 | 1.40±0.25 | 25 |
Technical Data
I Property | Test Method | Typical Performance I |
Tensile strength(MPa) | ASTM D 2671 | ^10.4 |
Ultimate elongation(%) | ASTM D 2671 | N200 |
Tensile strength after heat aged (Mpa) | 175°CX168h | >7.3 |
Ultimate elongation after heat aged (%) | 175°CX168h | N100 |
Longitudinal change(%) | ASTM D 2671 | -5%~+5% |
Flammability | ASTM D 2671 C method | VW-1 |
Voltage withstand | UL 224,2500V,60s | No breakdown |
Heat shock | UL224,250°Cx4h | No cracks, fl owing or dripping |
Dielectric strength (kV/mm) | ASTM D 149 | M15 |
Volume resistivity (Q-cm) | ASTM D876 | mio" |
FAQ
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
