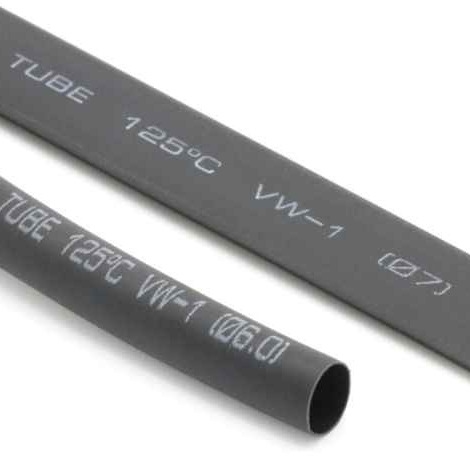

Halogen Free 3mm Ultra Thin Heat Shrink 0.4mm Black Shrink Wrap Tubing

Halogen Free 3mm Ultra Thin Heat Shrink 0.4mm Black Shrink Wrap Tubing

Brand Name: Long
Model Number: 3.0mm
MOQ: 1m
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 400000meters per day
Detail Information
Place of Origin:
China
Certification:
ISO
Material:
PE
Color:
Black
MOQ:
1meter
Tensile Strength(MPa):
>10.4
Ultimate Elongation(%):
>200
Tensile Strength After Heat Aged (Mpa):
N7.3
Ultimate Elongation After Heat Aged (%):
^100
Longitudinal Change(%):
-5%~+5%
Packaging Details:
Roll/Carton
Supply Ability:
400000meters per day
Highlight:

3mm Ultra Thin Heat Shrink

,

Halogen Free Ultra Thin Heat Shrink

,

0.4mm black shrink wrap tubing

Product Description

Black Ultra Thin Wall Halogen Free.Flexible Heat Shrink Tubing





Ultra thin wall halogen free.flexible

heat shrink tubing.





Features

•  Ultra thin wall

•  Flexible

•  Halogen free

•  Flame retardant

•  low smoke generation if burning

•  Continuous operating

Temperature:-55°C to 125°C

•  Fully shrink temperature: 110°C

•  RoHS and Sony compliant



Dimensions





Size As Supplied After Recovery Standard Package
Inch mm Internal Diameter mm Internal Diameter mm Wall Thickness mm Spool Length M/spooF
1/16 1.0 1.4±0.2 0.65 0.20 200
  1.5 1.9+0.2 0.85 0.20 200
3/32 2.0 2.4±0.2 1.00 0.22 200
  2.5 2.9±0.2 1.30 0.25 200
1/8 3.0 3.4±0.2 1.50 0.28 200
  3.5 3.9±0.2 1.80 0.28 200
  4.0 4.410.2 2.00 0.30 200
3/16 4.5 4.9±0.2 2.30 0.30 100
  5.0 5.5±0.2 2.5 0.32 100
1/4 6.0 6.5±0.2 3.0 0.32 100
5/16 7.0 7.5±0.3 3.5 0.32 100
  8.0 8.5±0.3 4.0 0.32 100
3/8 9.0 9.5+0.3 4.5 0.35 100
  10.0 10.5±0.3 5.0 0.35 100
  11.0 11.5±0.3 5.5 0.40 100
1/2 12.0 12.5±0.3 6.0 0.40 100
  13.0 13.5±0.3 6.5 0.40 100
  14.0 14.5±0.3 7.0 0.40 100
5/8 15.0 15.5±0.4 7.5 0.40 100
  16.0 16.5±0.4 8.0 0.40 100
  17.0 17.5±0.4 8.5 0.40 100
3/4 18.0 18.5±0.4 9.0 0.42 100
  20.0 20.5±0.5 10.0 0.45 100
  22.0 22.5±0.5 11.0 0.45 100
1 25.0 25.5±0.5 12.5 0.45 50



I Property I Test Method Typical Performance I
Tensile strength(MPa) ASTM D 2671 >10.4
Ultimate elongation(%) ASTM D 2671 >200
Tensile strength after heat aged (Mpa) 158°CX168h N7.3
Ultimate elongation after heat aged (%) 158°CX168h ^100
Longitudinal change(%) ASTM D 2671 -5%~+5%
Flammability ASTM D 2671 C method VW-1
Dielectric strength (kV/mm) ASTM D 149 >15
Volume resistivity (Q-cm) ASTM D 876 ^101



Halogen Free 3mm Ultra Thin Heat Shrink 0.4mm Black Shrink Wrap Tubing 0
