Heat Shrink Insulation Tube
Created with Pixso.

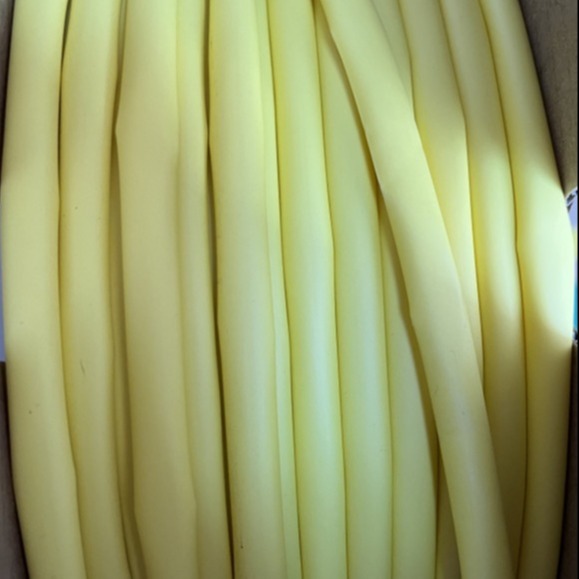

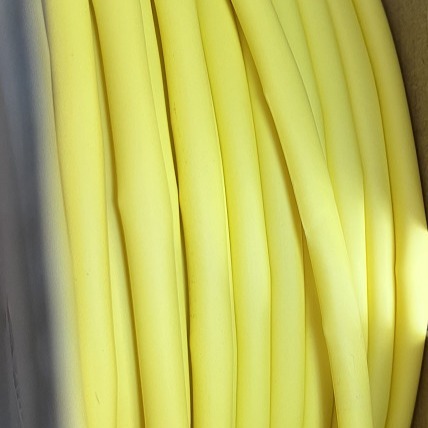

9mm Ultra Thin Heat Shrink Tubing PE 3X Yellow Flame Retardant

9mm Ultra Thin Heat Shrink Tubing PE 3X Yellow Flame Retardant

Brand Name: WOER
Model Number: 9.0mm
MOQ: 1m
Price: 0.03
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 400000meters per day
Detail Information
Place of Origin:
China
Certification:
ISO
Color:
Yellow
Size:
9mm
Shrink Ratio:
3:1
Wall Thickness:
0.75mm
Fully Shrink Temperature:
124°C
Certificate:
ROHS
Continuous Operating Temperature:
60°C
Tensile Strength(MPa):
N10.4
Packaging Details:
Roll/Carton
Supply Ability:
400000meters per day
Highlight:

9mm ultra thin heat shrink tubing

,

PE ultra thin heat shrink tubing

,

3x yellow heat shrink tubing

Product Description

Yellow PE 3X Universal Heat Shrink Tubing With Excellent Properties



Universal heat shrink tubing with excellent physical and mechanical properties





Features





•  Flexible



•  Flame retardant



•  Ultra thin wall



•  Continuous operating temperature:-55°C~125°C



•  Fully shrink temperature:^125°C



•  RoHS compliant



Dimensions





Size As Supplied After Recovery Standard Package
Inch mm Internal Diameter mm Internal Diameter mm Wall Thickness mm Spool Lenqth M/spooF
1/16 1.5 1.610.1 wO.50 0.45±0.10 200
1/8 3.0 3.2±0.1 W1.00 0.55±0.10 200
3/16 4.5 4.7±0.1 W1.50 0.60±0.10 200
1/4 6.0 6.2+0.1 W2.00 0.65±0.10 100
3/8 9.0 9.3±0.2 W3.00 0.75±0.15 100
1/2 12.0 12.310.2 W4.00 0.75±0.15 100
5/8 15.0 15.3±0.2 W5.00 0.80±0.15 100
3/4 18.0 18.310.2 W6.00 0.85±0.15 100
1 24.0 24.4±0.3 W8.00 1.00±0.20 50
1-1/4 30.0 30.410.3 W10.0 1.15±0.20 50
1-1/2 39.0 39.610.5 W13.0 1.50±0.20 50
2 50.0 50.6±0.5 W16.0 2.50±0.20 25
  60.0 61.5±1.0 <20.0 2.60±0.20 25
  70.0 71.5±1.0 <23.0 2.60±0.20 25
3 80.0 81.5±1.0 <26.0 2.60±0.20 25
  90.0 91.511.0 <30.0 2.60±0.20 25
4 100.0 101.5±1.0 W33.0 2.60±0.20 25



Technical Data





I Property I Test Method I Typical Performance I
Tensile strength(MPa) ASTMD2671 N10.4
Ultimate elongation(%) ASTM D2671 ^200
Tensile strength after heat aged(Mpa) 158°CX168h >7.3
Ultimate elongation after heat aged (%) 158°CX168h N100
Longitudinal change(%) ASTM D2671 ・5%~+5%
Flammability ASTM D2671 C method VW-1
Voltage withstand UL 224, 2500V, 60s No breakdown
Dielectric strength (kV/mm) ASTM D 149 "15
Volume resistivity (Q cm) ASTM D 876



9mm Ultra Thin Heat Shrink Tubing PE 3X Yellow Flame Retardant 0

FAQ

Professional Production Quality is Reliable

Q1 . Which certifications or test reports do you have?

A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?

A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.

For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?

A : We have a lot of products in stock. We can send the stock products in 3 work days.

If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?

A : Yes. We can provide samples.

Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?

A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
