Pink Heat Shrink Insulation Tube 4.5mm , Very Flexible Ultra Thin Wall Heat Shrink Tubing

Pink Heat Shrink Insulation Tube 4.5mm , Very Flexible Ultra Thin Wall Heat Shrink Tubing

Brand Name: WOER
Model Number: 4.5mm
MOQ: 1m
Price: 0.03
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 400000meters per day
Detail Information
Place of Origin:
China
Certification:
ISO
Color:
Pink
Material:
PE
Size:
4.5mm
Continuous OperatingTemperature:
61°C
Fully Shrink Temperature:
110°C
Wall:
Ultra Thin Wall
Tensile Strength(MPa):
210.4
Flexible:
Very Flexible
Packaging Details:
Roll/Carton
Supply Ability:
400000meters per day
Highlight:

Pink Heat Shrink Insulation Tube

,

4.5mm Heat Shrink Insulation Tube

,

Very Flexible Ultra Thin Wall Heat Shrink Tubing

Product Description

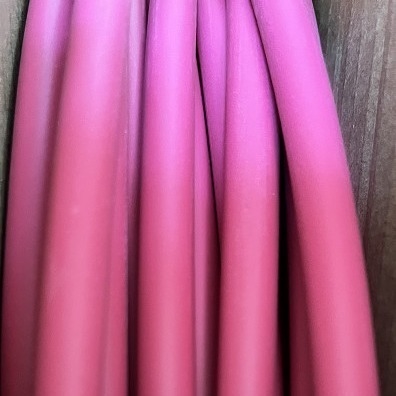

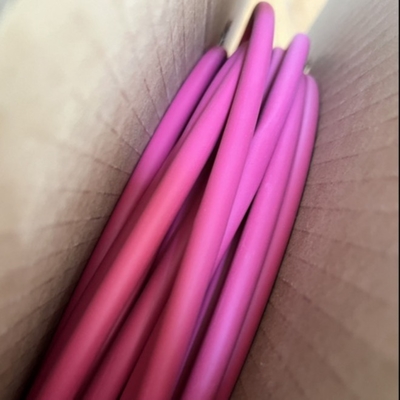

Pink PE 4.5mm Ultra Thin Wall Very Flexible Heat Shrink Tubing



Ultra thin wall, very flexible Heat shrink tubing



Features





Ultra thin wall

Very flexible

Flame retardant

Continuous operatingTemperature:-55°C to 125°C



Fully shrink temperature:^110°C



RoHS compliant



Dimensions





Size As Supplied After Recovery Standard Package
Inch mm Internal Diameter mm Internal Diameter mm Wall Thickness mm Spool Length M/spool
1/16 1.0 1.4±0.2 0.65 0.20 200
  1.5 1.9±0.2 0.85 0.20 200
3/32 2.0 2.4±0.2 1.00 0.22 200
  2.5 2.9±0.2 1.30 0.25 200
1/8 3.0 3.4±0.2 1.50 0.28 200
  3.5 3.9±0.2 1.80 0.28 200
  4.0 4.4+0.2 2.00 0.30 200
3/16 4.5 4.9±0.2 2.30 0.30 200
  5.0 5.5±0.2 2.5 0.32 100
1/4 6.0 6.5±0.2 3.0 0.32 100
5/16 7.0 7.5±0.3 3.5 0.32 100
  8.0 8.510.3 4.0 0.32 100
3/8 9.0 9.5±0.3 4.5 0.35 100
  10.0 10.5+0.3 5.0 0.35 100
  11.0 11.5±0.3 5.5 0.40 100
1/2 12.0 12.5±0.3 6.0 0.40 100
  13.0 13.5±0.3 6.5 0.40 100
  14.0 14.5±0.3 7.0 0.40 100
5/8 15.0 15.5+0.4 7.5 0.40 100
  16.0 16.510.4 8.0 0.40 100
  17.0 17.5±0.4 8.5 0.40 100
3/4 18.0 18.510.4 9.0 0.42 100
  20.0 20.5±0.5 10.0 0.45 100
  22.0 22.5±0.5 11.0 0.45 100
[ 25.0 25.510.5 1Z5 0.45 50



Technical Data





I Property I Test Method I Typical Performance I
Tensile strength(MPa) ASTM D 2671 210.4
Ultimate elongation(%) ASTM D 2671 N200
Tensile strength after heat aged (Mpa) 158°CX168h N7.3
Ultimate elongation after heat aged (%) 158°CX168h ^100
Longitudinal change(%) ASTM D 2671 -5%~+5%
Flammability ASTM D 2671 C method VW-1
Dielectric strength (kV/mm) ASTM D 149 N15
Volume resistivity (Q-cm) ASTM D 876 ^1014



Pink Heat Shrink Insulation Tube 4.5mm , Very Flexible Ultra Thin Wall Heat Shrink Tubing 0
