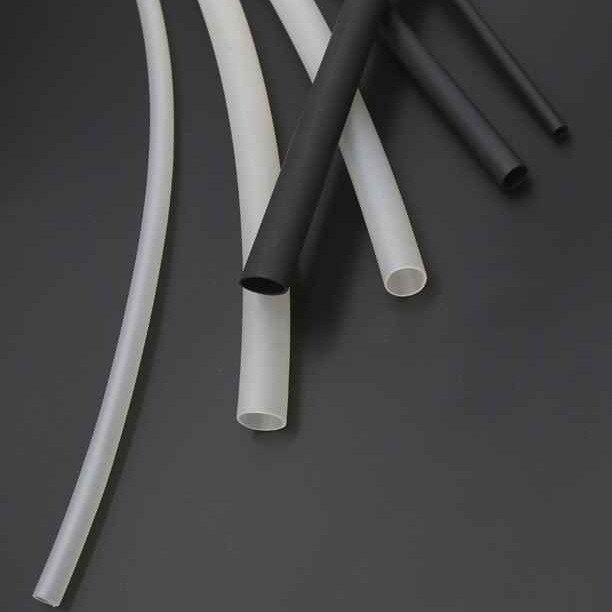

Halogen Free Clear Heat Shrink Tube 2mm PE Heat Shrink Tubing Adhesive Waterproof
| Place of Origin | China |
|---|---|
| Brand Name | Long |
| Certification | ISO |
| Model Number | 2.0mm |
| Minimum Order Quantity | 1m |
| Packaging Details | Roll/Carton |
| Delivery Time | 1-9days |
| Payment Terms | T/T, D/P, D/A, L/C, Western Union, MoneyGram |
| Supply Ability | 400000meters per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PE | Color | Clear |
|---|---|---|---|
| Flexible | Flexible | Halogen Free Or Not | Halogen Free |
| Temperature | 50°C | Tensile Strength (MPa) | N10.4 |
| Ultimate Elongation (%) | N200 | Certificate | RoHS And Sony Compliant |
| Highlight | Halogen Free heat shrink tube 2mm,Clear heat shrink tube 2mm,PE heat shrink tubing adhesive waterproof |
||
Product Description
Clear Economical Non Self Extinguishing Halogen Free Heat Shrink Tubing
Economical, non self-extinguishing
Halogen free, heat shrink tubing
Features
• Flexible
• Halogen free
• Temperature:-55°C to 105°C
• Shrink temperature:^105°C
• RoHS and Sony compliant
Dimension
| Size | As Supplied | After Recovery | Standard Package | ||
| Inch | mm | Internal Diameter Min(mm) | Internal Diameter Max(mm) | Wall Thickness Nom(mm) | M/spool |
| 3/64 | 0.6 | 0.9±0.2 | 0.40 | 0.22 | 200 |
| 0.8 | 1.1±0.2 | 0.50 | 0.22 | 200 | |
| 1/16 | 1.0 | 1.5±0.2 | 0.65 | 0.28 | 200 |
| 1.5 | 2.0±0.2 | 0.85 | 0.32 | 200 | |
| 3/32 | 2.0 | 2.5±0.2 | 1.00 | 0.35 | 200 |
| 2.5 | 3.0±0.2 | 1.30 | 0.38 | 200 | |
| 1/8 | 3.0 | 3.5±0.2 | 1.50 | 0.40 | 200 |
| 3.5 | 4.0±0.2 | 1.80 | 0.42 | 200 | |
| 4.0 | 4.5±0.2 | 2.00 | 0.50 | 200 | |
| 3/16 | 4.5 | 5.0±0.2 | 2.30 | 0.55 | 200 |
| 5.0 | 5.5±0.2 | 2.5 | 0.55 | 100 | |
| 1/4 | 6.0 | 6.5±0.2 | 3.0 | 0.55 | 100 |
| 5/16 | 7.0 | 7.5±0.3 | 3.5 | 0.60 | 100 |
| 8.0 | 8.5±0.3 | 4.0 | 0.60 | 100 | |
| 3/8 | 9.0 | 9.5±0.3 | 4.5 | 0.60 | 100 |
| 10.0 | 10.5±0.3 | 5.0 | 0.60 | 100 | |
| 11 | 11.5±0.3 | 5.5 | 0.60 | 100 | |
| 1/2 | 12 | 12.5±0.3 | 6.0 | 0.65 | 100 |
| 13 | 13.5±0.3 | 6.5 | 0.65 | 100 | |
| 14 | 14.5±0.3 | 7.0 | 0.70 | 100 | |
| 5/8 | 15 | 15.5±0.4 | 7.5 | 0.70 | 100 |
| 16 | 16.510.4 | 8.0 | 0.70 | 100 | |
| 17 | 17.5±0.4 | 8.5 | 0.80 | 100 | |
| 3/4 | 18 | 19.010.5 | 9.0 | 0.80 | 100 |
| 20 | 21.0±0.5 | 10.0 | 0.80 | 100 | |
| 22 | 23.0±0.5 | 11.0 | 0.90 | 100 | |
| 1 | 25 | 26.0±0.5 | 12.5 | 0.90 | 50 |
| 28 | 29.0±0.5 | 14.0 | 0.95 | 50 | |
| 1-1/4 | 30 | 31.5±1.0 | 15.0 | 1.00 | 50 |
| 35 | 36.5±1.0 | 17.5 | 1.00 | 50 | |
| 1-1/2 | 40 | 41.5±1.0 | 20.0 | 1.00 | 50 |
| 45 | 46.0±1.0 | 22.5 | 1.00 | 25 | |
| 50 | >50 | 25.0 | 1.00 | 25 | |
Technical Data
| I Property | Test Method | Typical Performance I |
| Tensile strength (MPa) | ASTM D 2671 | N10.4 |
| Ultimate elongation (%) | ASTM D 2671 | N200 |
| Voltage withstand | 2500V,60s | No breakdown |
| Volume resistivity (Q-cm) | ASTM D 876 | N10" |
FAQ
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
