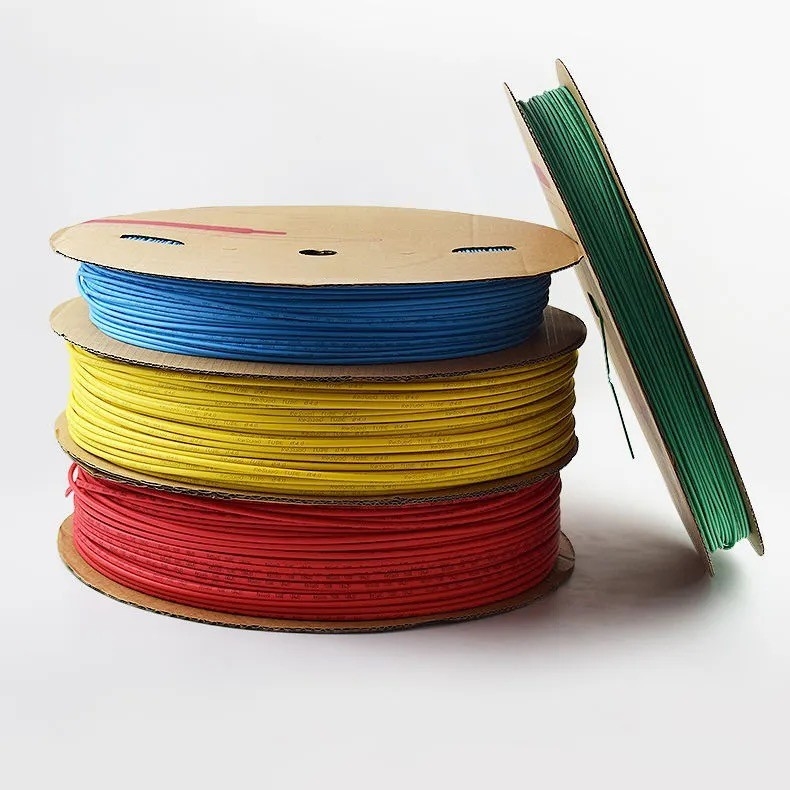

PP Heat Shrink Insulation Tube 4.0mm 45mm Busbar Heat Shrink Sleeve

PP Heat Shrink Insulation Tube 4.0mm 45mm Busbar Heat Shrink Sleeve

Brand Name: Long
Model Number: S-XL
MOQ: 100pieces
Payment Terms: T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability: 100000pieces per day
Detail Information
Place of Origin:
China
Certification:
ISO
Type:
Insulation Tape
Material:
PE,PP
Color:
Black,Red,Blue,White,Yellow
Product Name:
Heat Shrink Tube
Feature:
High Temperature Resistance
Usage:
Wire And Cable Protection
Packaging Details:
Carton
Supply Ability:
100000pieces per day
Highlight:

4.0mm Heat Shrink Insulation Tube

,

PP Heat Shrink Insulation Tube

,

45mm busbar heat shrink sleeve

Product Description

Polyolefin Shrink Tubing Thin Wall Without Glue Heat Shrink Insulation Tube



Characteristics


* Material: Polyolefin
* Shrink ratio: 2:1, 3:1
* Operating range : -55℃--+125℃
* Flammability : VW-1
* Excellent electrical, physical and chemical properties.
* UL, RoHS and REACH compliant.



Dimensions



Size Expanded Recovered

Standard Package

M/Spool



Round/Flat

Inch mm Internal Diameter (mm) Internal Diameter (mm) Wall Thickness (mm)
1/8 3.2 3.2 1.6 0.75±0.20 200 Round
3/16 4.8 4.8 2.4 0.89±0.20 100 Round
1/4 6.4 6.4 3.2 0.89±0.20 100 Round
3/8 9.5 9.5 4.8 0.89±0.20 50 Round
1/ 2 12.7 12.7 6.4 0.89±0.20 25 Round
3/4 19.0 19.0 9.5 1.07±0.30 25 Round
1 25.4 25.4 12.7 1.25±0.30 25 Round
1-1/ 2 38.1 38.1 19.0 1.40±0.30 25 Round
2 50.8 51.0 25.4 1.65±0.30 25 Round



Property Test Method Stantard Typical Performance
Tensile Strengtn(MPa) ASTM D2671 ≥8.5 10.0
Elongation(%) ASTM D2671 ≥250 300
Tensile Strengtn after aging (MPa) UL224 158℃X168hr ≥7.3 8.5
Elongation after aging(%) UL224 158℃X168hr ≥200 250
Dieletric strength(kv/mm) IEC243 ≥15 17.5
Volume resistivity(Ω.cm) ASTM D876 ≥1X109 2.5X109
Flammability VW-1 Pass Pass



PP Heat Shrink Insulation Tube 4.0mm 45mm Busbar Heat Shrink Sleeve 0

Changzhou Longchuang Insulating Material Co., Ltd is a high-tech enterprise with headquarter in Changzhou, China. Founded in 2010,The Long brand has always been a guarantee for the supply of heat shrink tubing products and services. From product design and raw materials purchasing to final inspection and testing, Longchuang has a perfect quality assurance program covering the entire production process. So far, we have been successfully certified by ISO 9001, ISO 14001, ISO/TS 16949, UL, CSA, 3C, etc.

At Longchuang, we know this can be done.



FAQ

Professional Production Quality is Reliable

Q1 . Which certifications or test reports do you have?

A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?

A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.

For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?

A : We have a lot of products in stock. We can send the stock products in 3 work days.

If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?

A : Yes. We can provide samples.

Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?

A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
