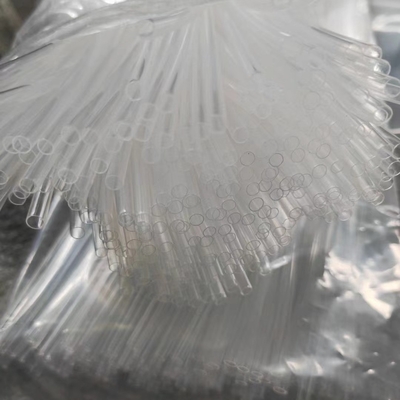

Medical FEP Heat Shrink Insulation Tube Chemical Resistance
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | FEP | Colour | Clear |
---|---|---|---|
Certicite | ISO9001 | Feature | Shrink Ratio: 1.6:1 |
Density | 2.12-2.17 G/cc | Tensile Strength(Mpa) | 19-22 Mpa |
Max Work Temperature | -61 To 209°C | Operating Temperature | -181°C ~ 209 °C |
Highlight | FEP Heat Shrink Insulation Tube,Medical Heat Shrink Insulation Tube,FEP heat shrink wire insulation |

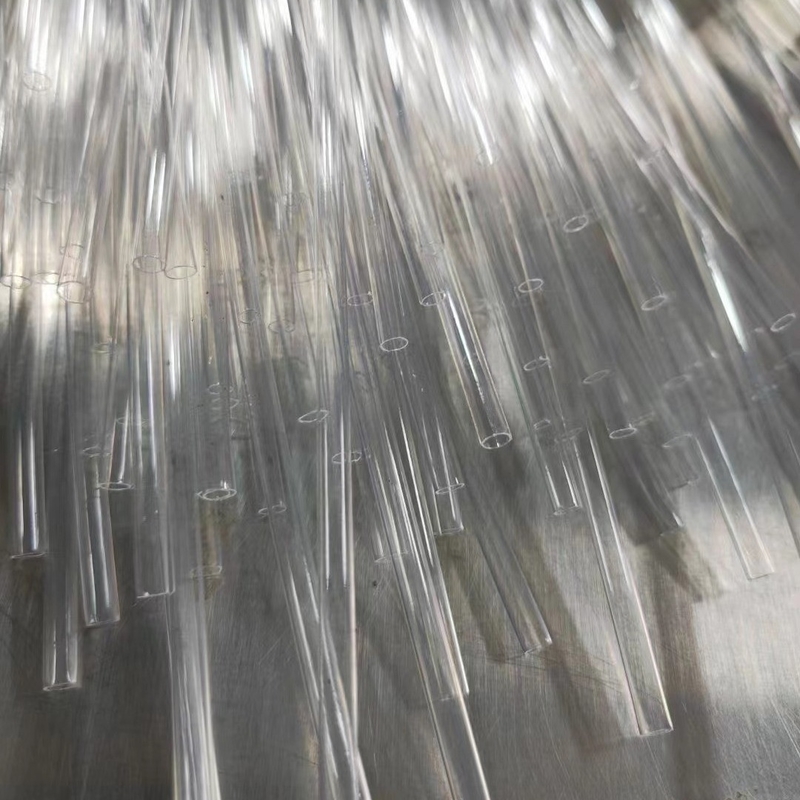

FEP Heat Shrink Tube Medical Heat Shrink Tubing Shrink Ratio 1.6: 1
FEP heat shrink tubing has similar dielectric and frictional properties to PTFE heat shrink tubing. Except the Continuous operating temperature, FEP heat shrinkable tubing is suitable for continuous use at temperatures up to 200°C. But the begin shrink temperature of FEP tubing is just 130 °C, much lower than PTFE’s. This can be a significant advantage when used in conjunction with temperature sensitive components. The other advantage of FEP heat shrink tubing is that the max diameter of FEP heat shrink tubing we can produce is 215mm ID, much larger than PTFE’s.
Shrink Ratio:1.6:1
Characteristics:excellent 200℃ high-temperature performance, chemical resistance, high insulation and excellent mechnical properties. Excellent abration resistance and excellent clarity. RoHS and REACH compliant.
Properties
Property | Typical Performance |
Density | 2.12-2.17 g/cc |
hardness shore D | 55 D-65D |
Tensile Strength(Mpa) | 19-22 Mpa |
Elongation(%) | 300-400% |
flammability | VW-0 |
water absorption | ≤ 0.01% |
thermal conductivity | 0.2 W/m-k |
dielectric constant | 25-30kv/mm |
Max work temperature | -60 to 200°C |
Features and Benefits
1. Excellent insulation
2. Operating temperature -180°C ~ 200 °C
3. No burn in the air (Oxygen Index>95vol%)
4. Excellent corrosion resistance
5. Low Friction: Dynamic friction coefficient 0.2-0.3
6. UV resistance
7. Large diameter up to 215mm.
8. Customize ( diameter, wall thickness, and color)
9. Shrink ratio: 1.6:1
10. Lower shrink temperature 130 degree C to start shrink
11. Low pass for 5G using
Production process
We use new and pure raw material to produce our FEP heat shrink tubing, our raw material from Dakai, Dupond, Dongyue and Juhua. We donn;t use recycle material. So we just make high quality product.
We have infra-ray diameter gauge to measure the diameter to confirm the diameter suit the tolerance.
Bakai has our own clean room, we can producing product in the clean room for medical use.
Application:
Widely used in office machinery, paper machinery, printing machinery, printing presses, insulated jacket, UV lamp.
Specification:
ID pre-shrink |
OD(MM) post-shrink |
|
length |
1 | 0.8 | 0.15-0.2 | 10 |
1.5 | 1.2 | 0.15-0.2 | 10 |
2.0 | 1.6 | 0.15-0.2 | 10 |
3.0 | 2.2 | 0.15-0.2 | 10 |
4.0 | 3.0 | 0.2-0.25 | 10 |
4.5 | 3.3 | 0.2-0.25 | 10 |
5.5 | 4.3 | 0.2-0.25 | 10 |
7.0 | 5.1 | 0.2-0.35 | 10 |
8 | 6.0 | 0.2-0.35 | 10 |
10 | 7.4 | 0.2-0.45 | 10 |
12 | 8.8 | 0.2-0.45 | 10 |
14 | 10.7 | 0.2-0.45 | 10 |
19 | 16.5 | 0.2-0.45 | 10 |
24 | 19.5 | 0.2-0.45 | 10 |
30 | 24 | 0.2-0.45 | 10 |
33 | 27 | 0.2-0.45 | 10 |
35 | 28 | As you need | As you need |
40 | 31 |
45 | 35 |
50 | 39 |
55 | 43 |
60 | 46 |
70 | 54 |
75 | 58 |
80 | 62 |
90 | 70 |
100 | 75 |
150 | 120 |
215 | 180 |
FAQ
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
