Halogen Free Printable Heat Shrink Sleeve Flame Retardant

Brand Name:	Long
Model Number:	0.5-180mm-2X
MOQ:	1m
Price:	Can discussible
Payment Terms:	T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability:	280000meters per day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Wall:

Single Wall Without Glue

Color:

Black, White, Red, Clear And So On

Size:

0.5mm-180mm

After Recovery:

0.45mm Wall Thickness

Feature:

Halogen Free

Retardant:

Flame Retardant

Continuous Operating Temperature:

112°C

Compliant:

RoHS And Sony Compliant

Packaging Details:

bag/Carton

Supply Ability:

280000meters per day

Highlight:

printable heat shrink sleeve

Halogen free heat shrink sleeve

Halogen free heat sink sleeve

Product Description

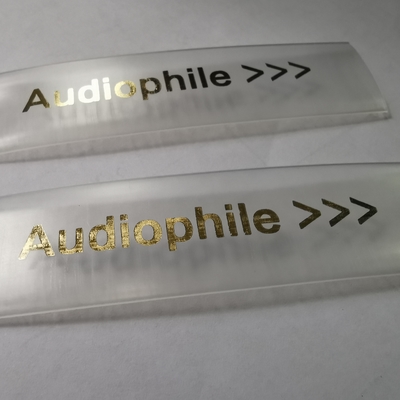

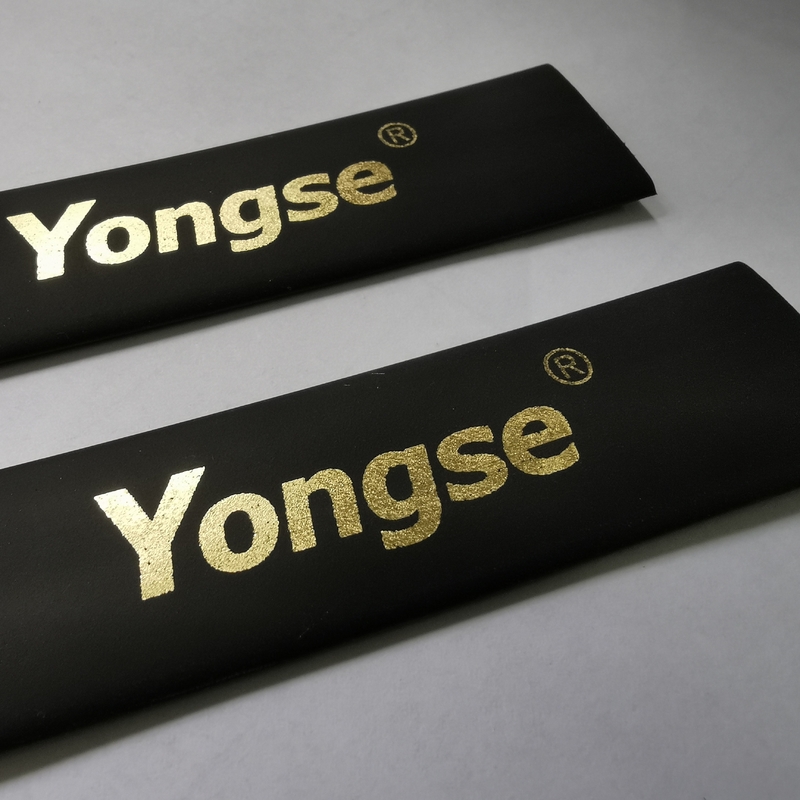

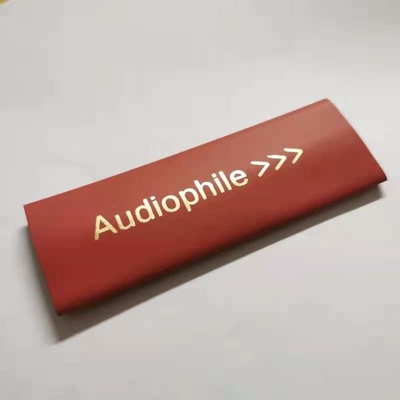

Heat Shrink Tubing With Your Logo Printing Shrink Ratio 2X

Thin wall halogen free,flexible heat shrink tubing.

Features

• Ultra thin wall

• Flexible

• Halogen free

• Flame retardant

• low smoke generation if burning

• Continuous operating temperature:-55°C to 125°C

• Fully shrink temperature: 125°C

• RoHS and Sony compliant

Dimensions

Size		As Supplied	After Recovery		Standard Package
Inch	mm	Internal Diameter mm	Internal Diameter Max mm	Wall Thickness Nom mm	Spool Length M/spool
3/64	0.8	1.1±0.2	0.50	0.22	200
1/16	1.0	1.5±0.2	0.65	0.28	200
	1.5	2.0±0.2	0.85	0.32	200
3/32	2.0	2.5±0.2	1.00	0.35	200
	2.5	3.0+0.2	1.30	0.38	200
1/8	3.0	3.5±0.2	1.50	0.40	200
	3.5	4.0±0.2	1.80	0.42	200
	4.0	4.5±0.2	2.00	0.45	200
3/16	4.5	5.0±0.2	2.30	0.50	100
	5.0	5.5±0.2	2.5	0.55	100
1/4	6.0	6.5±0.2	3.0	0.55	100
5/16	7.0	7.5±0.3	3.5	0.55	100
	8.0	8.5+0.3	4.0	0.60	100
3/8	9.0	9.5±0.3	4.5	0.60	100
	10.0	10.5±0.3	5.0	0.60	100
	11.0	11.5±0.3	5.5	0.60	100
1/2	12.0	12.510.3	6.0	0.60	100
	13.0	13.5±0.3	6.5	0.65	100
	14.0	14.510.3	7.0	0.65	100
5/8	15.0	15.5±0.4	7.5	0.70	100
	16.0	16.5±0.4	8.0	0.70	100
	17.0	17.5+0.4	8.5	0.70	100
3/4	18.0	19.010.5	9.0	0.80	100
	20.0	21.0±0.5	10.0	0.80	100
	22.0	23.010.5	11.0	0.80	100
1	25.0	26.010.5	12.5	0.90	50
	28.0	29.010.5	14.0	0.90	50
1-1/4	30.0	31.5±1.0	15.0	0.95	50
	35.0	36.5±1.0	17.5	1.00	50
1-1/2	40.0	41.5+1.0	20.0	1.00	50
	45.0	46.511.0	22.5	1.00	25
2	50.0	>50	25.0	1.00	25
	60.0	N60	31.0	1.30	25
	70.0	>70	36.0	1.30	25
3	80.0	)80	41.0	1.46	25
	90.0	>90	46.0	1.46	25
4	100.0	^100	51.0	1.46	25
5	120.0	>120	61.0	1.56	25
6	150.0	>150	76.0	1.56	25
7	180.0	>180	91.0	1.56	25

Technical Data

I Property I	Test Method	Typical Performance I
Tensile strength(MPa)	ASTM D 2671	5=10.4
Ultimate elongation(%)	ASTM D 2671	2200
Tensile strength after heat aged (Mpa)	158°CX168h	N7.3
Ultimate elongation after heat aged (%)	158°CX168h	^100
Longitudinal change(%)	ASTM D 2671	-5%~+5%
Flammability	ASTM D 2671 C method	VW-1
Dielectric strength (kV/mm)	ASTM D 149	M15
Volume resistivity (Q-cm)	ASTM D 876	mio"
