Heat Shrink Insulation Tube
Created with Pixso.

Oil Resistance Fluororubber Heat Shrink Tubing

Oil Resistance Fluororubber Heat Shrink Tubing

Brand Name: Long
Model Number: 3/8" 1/2"
MOQ: 1m
Price: 0.3
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 10000meters per day
Detail Information
Place of Origin:
China
Certification:
ISO
Material:
Rubber
Color:
Black
MOQ:
1meter
Feature:
High Temperature Resistance
Glue:
Without Glue
Chemical Performance:
High Chemical Stability
Service Life:
Long Service Life
Advantage:
Corrosion Resistance
Packaging Details:
Roll/Carton
Supply Ability:
10000meters per day
Highlight:

Fluororubber Heat Shrink Tubing

,

Fluororubber Heat Shrink Insulation Tube

,

Oil Resistance Tubing

Product Description

Oil-Resistance Fluororubber Heat Shrink Tubing Tubing



High temperature resistant,oil resistant heat shrink tubing is made of special designed fluororubber which was cross-linked by radiation with

scientific formula.



Features




1. Keep soft and have no crack in the temperature range of -55℃~200℃.
2. Shrink temperature:175℃.
3. Operation temperature:-55℃~200℃.
4. Shrink Ratio:2:1.
5. Range of application



It has excellent performance of high and low temperature resistance, oil resistance and chemical resistance especially fit for the situation which need oil-resistance(such as airplane/engine of automobile,the electrical system and hydraulic system near the oil tank)and chemical solvent resistance,aim to provide insulation protection for the cable bundle and remove the stress,in order to prevent the electric equipment from outside damage.





Specification



Fluororubber Heat Shrink Tubing Specification
Size As Supplied (mm) After Recovery(mm)

Tube

shape

Standard Package
mm Min I.D. Max I.D. Total W.T.
Φ2.4 ≥2.4 ≤1.2 0.70±0.2 Round 200
Φ3.2 ≥3.2 ≤1.6 0.76±0.2 Round 200
Φ4.8 ≥4.8 ≤2.4 0.89±0.2 Round 100
Φ6.4 ≥6.4 ≤3.2 0.89±0.2 Round 100
Φ9.5 ≥9.5 ≤4.8 0.89±0.2 Flat 50
Φ12.7 ≥12.7 ≤6.4 0.89±0.2 Flat 50
Φ19.1 ≥19.1 ≤9.5 1.07±0.3 Flat 25
Φ25.4 ≥25.4 ≤12.7 1.25±0.3 Flat 25
Φ38.1 ≥38.1 ≤19.1 1.40±0.3 Flat 25
Φ50.8 ≥50.8 ≤25.4 1.65±0.3 Flat 15





Product Technical Date

Fluororubber Heat Shrink Tubing
PROPERTY TEST METHOD STANTARD
Tensile Strength(MPa) ASTM D638 ≥8.5
Elongatio(%) ASTM D638 ≥250
Elongation at Break after aging(%) 250℃×168h ≥200



Dielectric strength(kv/mm)

ASTM D2671 ≥7.9
Volume resistance(Ω.cm) IEC 60093 ≥1×109
Flame redundancy UL224 VW-1
Operation temperature -55℃~200℃
Shrink temperature ≥175℃
Environment RoHS Compliant
Standard Color Black
Material:⑴ Fluororubber



Color
Standard color is black, other color can be customized.

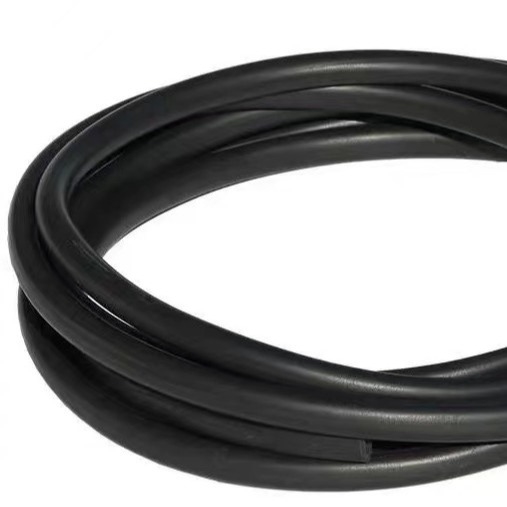

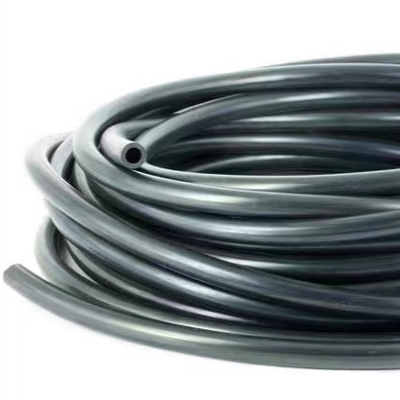

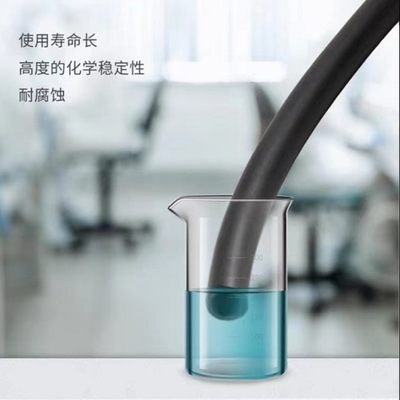

Pictures of goods
Oil-resistance Fluororubber Heat Shrink Tubing





Oil Resistance  Fluororubber Heat Shrink Tubing 0
