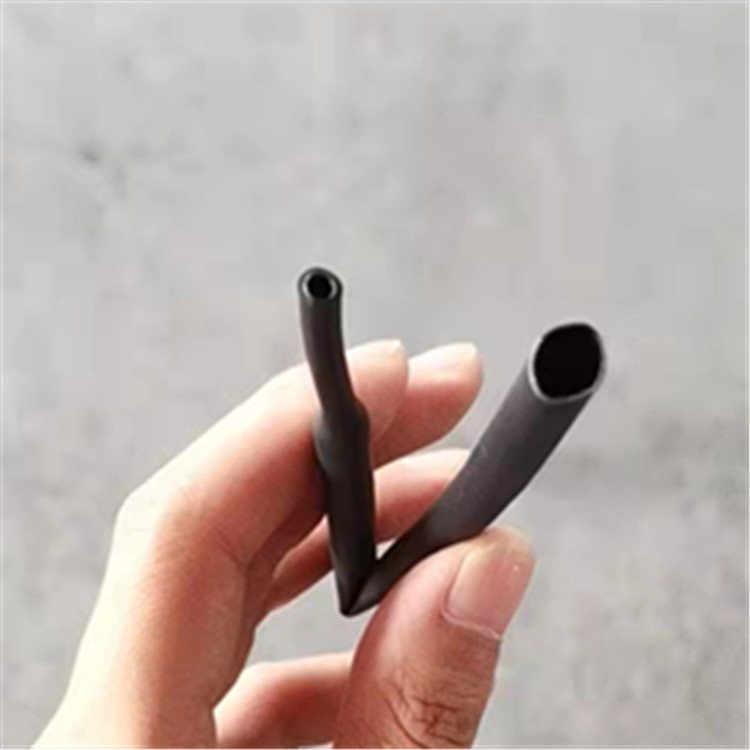

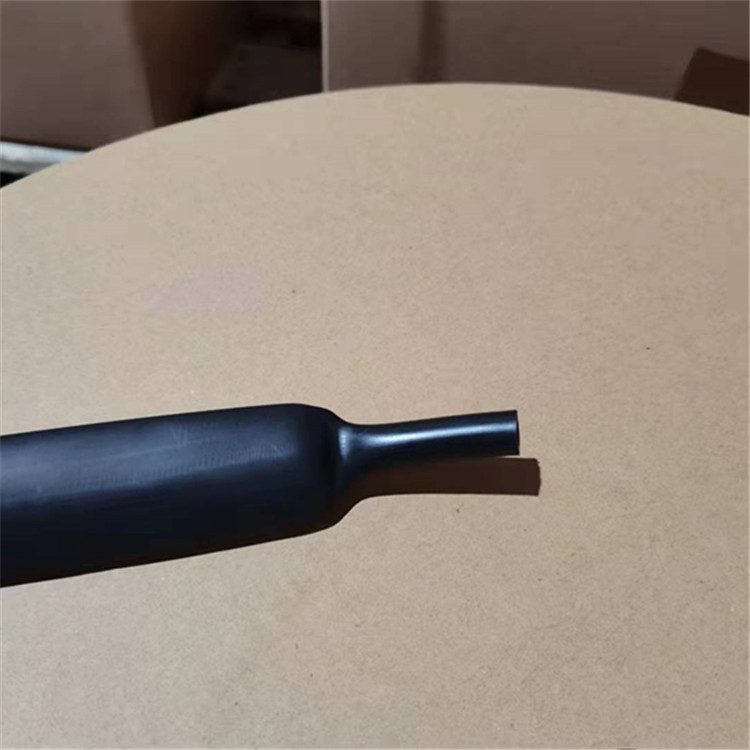

PE Dual Wall Black Heat Shrink Insulation Tube

  • PE Dual Wall Black Heat Shrink Insulation Tube
  • PE Dual Wall Black Heat Shrink Insulation Tube
  • PE Dual Wall Black Heat Shrink Insulation Tube
Place of Origin China
Brand Name Long
Certification ISO9001
Model Number All size
Minimum Order Quantity 2m
Price Can discussible
Packaging Details Roll/Carton
Delivery Time 1-9days
Payment Terms T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability 200000meters per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Shrink Ratio 2:1 3:1 4:1 With Glue And Without Glue Material PE
Colour Black Wall Thickness Singel Wall And Dual Wall
Feature High Withstand To Corrosive Fluids In Extreme Temperatures Flame Or Not Flame Retardant
Soft Very Flexible Continuous Operating Temperature -56℃- 199℃
Highlight

PE Heat Shrink Insulation Tube

,

Heat Shrink Insulation Tube

,

Heat Shrink Insulation warp
Leave a Message
Product Description

Black Shrink Tubing Black Single Wall Dual Wall Heat Shrink Tube

Thin wall fluoroelastomer heat shrink tubing suitable for use in electronic systems and components in automotive, military/ aerospace and industrial applications requiring outstanding heat and fluid resistance.

2:1 without glue Features

●  2:1 shrink ratio
●  High withstand to corrosive fluids in extreme temperatures
●  Flame retardant
●  Very flexible
●  Easy to stamped
●  Continuous operating temperature:-55℃- 200℃
●  Shrink temperature:175℃
●  Meets 23053/ 13

3:1 with glue Features

● 3:1 shrink ratio
● Low longitudinal shrinkage
● Flame retardant (out jacket only)
● Super sealing against water, moisture or other contaminates
● Continuous operating temperature:-45℃- 125℃
● Shrink Temperature:125℃

2:1 without glue Dimensions



Size Expanded Recovered

Standard Package

M/Spool



Round/Flat
Inch mm Internal Diameter (mm) Internal Diameter (mm) Wall Thickness (mm)
1/8 3.2 3.2 1.6 0.75±0.20 200 Round
3/16 4.8 4.8 2.4 0.89±0.20 100 Round
1/4 6.4 6.4 3.2 0.89±0.20 100 Round
3/8 9.5 9.5 4.8 0.89±0.20 50 Round
1/ 2 12.7 12.7 6.4 0.89±0.20 25 Round
3/4 19.0 19.0 9.5 1.07±0.30 25 Round
1 25.4 25.4 12.7 1.25±0.30 25 Round
1-1/ 2 38.1 38.1 19.0 1.40±0.30 25 Round
2 50.8 51.0 25.4 1.65±0.30 25 Round



Property Test Method Stantard Typical Performance
Tensile Strengtn(MPa) ASTM D2671 ≥8.5 10.0
Elongation(%) ASTM D2671 ≥250 300
Tensile Strengtn after aging (MPa) UL224 158℃X168hr ≥7.3 8.5
Elongation after aging(%) UL224 158℃X168hr ≥200 250
Dieletric strength(kv/mm) IEC243 ≥15 17.5
Volume resistivity(Ω.cm) ASTM D876 ≥1X109 2.5X109
Flammability VW-1 Pass Pass


PE Dual Wall Black Heat Shrink Insulation Tube 0

Changzhou Longchuang Insulating Material Co., Ltd is a high-tech enterprise with headquarter in Changzhou, China. Founded in 2010,The Long brand has always been a guarantee for the supply of heat shrink tubing products and services. From product design and raw materials purchasing to final inspection and testing, Longchuang has a perfect quality assurance program covering the entire production process. So far, we have been successfully certified by ISO 9001, ISO 14001, ISO/TS 16949, UL, CSA, 3C, etc.
At Longchuang, we know this can be done.

FAQ

Professional Production Quality is Reliable

Q1 . Which certifications or test reports do you have?

A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?

A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.

For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?

A : We have a lot of products in stock. We can send the stock products in 3 work days.

If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?

A : Yes. We can provide samples.

Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?

A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
