Heat Shrink Insulation Tube
Created with Pixso.

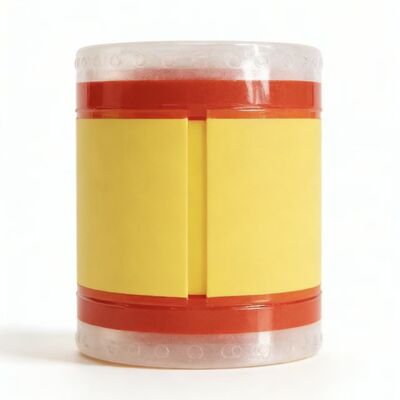

Good Price of the 2:1/3:1 Ratio Mililtary Identification Sleeves Durable and Flame Retardant Heat Shrinkable Polyolefin Wildly Use in All Kinds of Instrument

Good Price of the 2:1/3:1 Ratio Mililtary Identification Sleeves Durable and Flame Retardant Heat Shrinkable Polyolefin Wildly Use in All Kinds of Instrument

Brand Name: NONE
Model Number: 1.5mm-75mm
MOQ: 2m
Price: negotiable
Payment Terms: T/T
Supply Ability: 100000m/day
Detail Information
Place of Origin:
China
Certification:
ISO9001
Packaging Details:
carton
Supply Ability:
100000m/day
Highlight:

military identification heat shrink sleeves

,

flame retardant polyolefin insulation tube

,

2:1 ratio heat shrink tubing

Product Description

Description :


The marker sleeves are designed to meet the wire and cable permanent marking needs .It is made of durable and flame retardant heat shrinkable polyolefin , and radiation crossing linked by high electronic beam .


The product is made of durable heat-shrinkable polyolefin material, which, after special process treatment, exhibits excellent flame-retardant properties. It can effectively withstand high-temperature environments and prevent safety hazards caused by open flames, meeting the stringent standards of military and industrial scenarios. The material itself is wear-resistant and aging-resistant, capable of long-term stable operation in complex environments such as humidity and corrosion, thereby extending the service life of the identification labels.


As an identification solution designed for harsh scenarios, it combines excellent insulation and shrink stability. After heating, it can tightly adhere to the surface of the identification label, forming a seamless protective layer, effectively preventing label blurring and peeling off, and ensuring that the information is clear and identifiable. Its installation is convenient, requiring no complex tools, thus significantly improving the efficiency of identification work.


With high cost-performance ratio and multi-scenario adaptability, this identification sleeve is widely used in military electronic equipment, communication instruments, industrial control devices, and other fields. It provides reliable protection for the identification of various instruments, ensuring the accuracy of information traceability during equipment maintenance while reducing identification maintenance costs, making it a preferred identification配套 product in many industries.


Features :


Material  The sleeving shall be fabricated from irradiated , thermally stabilized and flame retarded modified polyolefin compound
Application range  Military industry ; Aerospace and defense ; Marine
Operating temperature range  -55°C~+135°C
Minimum recovery temperature  +135°C
Maximum storage temperature  +50°C
Shrink ratio  2:1 ; 3:1
Color  White ,Yellow ,other color is available if ordered
Printing mode Single sided printing and Double sided printing fomats available

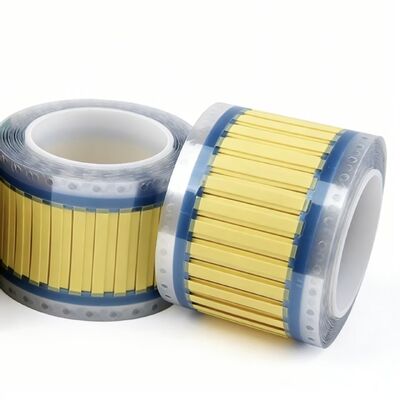

Supplied mode  Either Continuous type or Ladder formats type is available
Recommended Printers  Either Thermal transfer printer or Laser printer is OK
Recommended Ribbons  WO-80500BK resin ribbon , Black


Dimensions :


Shrink ratio 2:1

Part Number  As Supplied ( mm ) After Recovery ( mm )z
ID ( D ) Flatten Width ( W ) Double Wall Thickness ID ( d ) Single Wall Thickness
-1.6- 2.00±0.20 3.7±0.3 0.48±0.10 ≤0.79 0.45±0.06
-2.4- 2.79±0.20 5.0±0.3 0.48±0.10 ≤1.18 0.49±0.06
-3.2- 3.64±0.23 6.3±0.4 0.48±0.10 ≤1.59 0.51±0.06
-4.8- 5.26±0.25 8.9±0.4 0.49±0.10 ≤2.36 0.54±0.06
-6.4- 6.92±0.28 11.5±0.4 0.50±0.10 ≤3.18 0.56±0.06
-9.5- 10.2±0.32 16.7±0.5 0.51±0.11 ≤4.75 0.59±0.06
-12.7- 13.5±0.36 21.8±0.6 0.52±0.11 ≤6.35 0.60±0.07
-19.0- 20.1±0.40 32.2±0.6 0.53±0.11 ≤9.53 0.62±0.07
-25.0- 26.7±0.45 42.5±0.7 0.55±0.12 ≤12.70 0.63±0.07
-38.0- 39.8±0.51 63.2±0.8 0.57±0.12 ≤19.10 0.64±0.07
-51.0- 53.0±0.56 83.9±0.9 0.58±0.13 ≤25.40 0.64±0.08
-76.0- 79.4±0.56 125.3±1.0 0.59±0.13 ≤38.10 0.64±0.09



Shrink ratio 3:1

Part Number  As Supplied ( mm ) After Recovery ( mm )z
ID ( D ) Flatten Width ( W ) Double Wall Thickness ID ( d ) Single Wall Thickness
-1.6- 2.00±0.20 3.7±0.3 0.47±0.10 ≤0.53 0.52±0.06
-2.4- 2.79±0.20 5.0±0.3 0.47±0.10 ≤0.79 0.57±0.06
-3.2- 3.64±0.23 6.3±0.4 0.48±0.10 ≤1.06 0.61±0.06
-4.8- 5.26±0.25 8.9±0.4 0.49±0.10 ≤1.59 0.67±0.06
-6.4- 6.92±0.28 11.5±0.4 0.50±0.10 ≤2.13 0.71±0.06
-9.5- 10.2±0.32 16.7±0.5 0.52±0.11 ≤3.18 0.77±0.06
-12.7- 13.5±0.36 21.8±0.6 0.53±0.11 ≤4.23 0.80±0.07
-19.0- 20.1±0.40 32.2±0.6 0.55±0.11 ≤6.35 0.84±0.07
-25.0- 26.7±0.45 42.5±0.7 0.565±0.12 ≤8.47 0.86±0.07
-38.0- 39.8±0.51 63.2±0.8 0.57±0.12 ≤12.90 0.89±0.07
-51.0- 53.0±0.56 83.9±0.9 0.57±0.12 ≤17.20 0.90±0.08
-76.0- 79.4±0.56 125.3±1.0 0.57±0.13 ≤25.80 0.92±0.09


Package information


Ordering Size  Ladder Format Type  Continuous Type
A and B small box packing  A Paper reel Packing ( m/reel ) B Plastic reel Packing ( m/reel )
1.6 2500 50 25
2.4 2500 50 25
3.2 2000 100 25
4.8 2000 100 25
6.4 2000 100 25
9.5 1000 100 25
12.7 1000 100 25
19.0 500 100 25
25.0 500 100 25
38.0 500 50 25
51.0 250 50 25
76.0 250 50 25
