White Silicone Fiberglass Sleeve 100m , 12mm Braided Fiberglass Tube
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Silicone Rubber And Fiberglass | Colour | White |
---|---|---|---|
Size | As Order | Length | 100m Or Cut For You |
Certificate | ISO9001 | Feature | Two Types: Inner Fiberglass Outside Braided Rubber&inner Silicone Rubber Outside Fiberglass Braided |
Voltage | 1.5KV, 2.5KV, 4KV , 7KV | Operating Temperature | -55℃- 200℃ |
Highlight | White Silicone Fiberglass Sleeve,100m Silicone Fiberglass Sleeve,12mm Braided Fiberglass Tube |

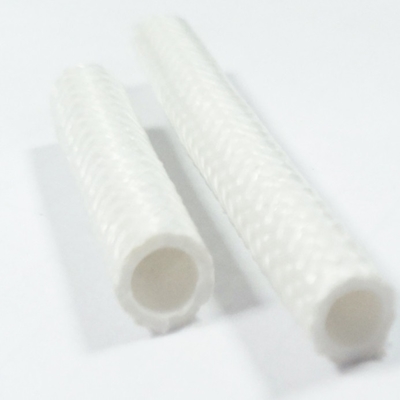

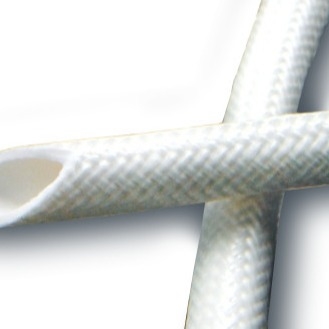

White Silicone Rubber Braided Fiberglass Tube Insulating Protection
Silicone Rubber Braided Tube
General insulating protection for various household appliances, light fitting, machines, electronic instruments, etc
Features
● Two types: Inner fiberglass outside braided silicone rubber(SRG-N) Inner silicone rubber outside fiberglass braided(SRG-W)
● Operating temperature:-55℃- 200℃
● RoHS compliant; UL approved
● Good flexibility, arc resistance, corona resistance
Standard color: white (Other colors upon request)
Dimensions
Size | Internal Diameter (mm) | Average Wall Thickness (mm) | Standard Package M/Spool | ||
1500V, 2500V | 4000V | 7000V | |||
0.5 | 0.5 ± 0.30 | 0.20 ± 0.10 | 0.40 ± 0.10 | 0.45 ± 0.10 | 100 |
1.0 | 1.0 ± 0.30 | 0.20 ± 0.10 | 0.40 ± 0.10 | 0.45 ± 0.10 | 100 |
1.5 | 1.5 ± 0.30 | 0.20 ± 0.10 | 0.40 ± 0.10 | 0.45 ± 0.10 | 100 |
2.0 | 2.0 ± 0.30 | 0.20 ± 0.10 | 0.40 ± 0.10 | 0.45 ± 0.10 | 100 |
2.5 | 2.5 ± 0.30 | 0.20 ± 0.10 | 0.40 ± 0.10 | 0.50 ± 0.10 | 100 |
3.0 | 3.0 ± 0.35 | 0.23 ± 0.10 | 0.40 ± 0.10 | 0.50 ± 0.10 | 100 |
3.5 | 3.5 ± 0.35 | 0.23 ± 0.10 | 0.45 ± 0.10 | 0.55 ± 0.10 | 100 |
4.0 | 4.0 ± 0.35 | 0.23 ± 0.10 | 0.45 ± 0.10 | 0.55 ± 0.10 | 100 |
4.5 | 4.5 ± 0.35 | 0.23 ± 0.10 | 0.45 ± 0.10 | 0.55 ± 0.10 | 100 |
5.0 | 5.0 ± 0.45 | 0.30 ± 0.10 | 0.45 ± 0.10 | 0.55 ± 0.10 | 100 |
6.0 | 6.0 ± 0.45 | 0.30 ± 0.10 | 0.50 ± 0.10 | 0.60 ± 0.10 | 100 |
7.0 | 7.0 ± 0.60 | 0.35 ± 0.10 | 0.50 ± 0.10 | 0.60 ± 0.10 | 50 |
8.0 | 8.0 ± 0.60 | 0.35 ± 0.10 | 0.50 ± 0.10 | 0.60 ± 0.10 | 50 |
9.0 | 9.0 ± 0.60 | 0.35 ± 0.10 | 0.50 ± 0.10 | 0.60 ± 0.10 | 50 |
10.0 | 10.0 ± 0.80 | 0.43 ± 0.10 | 0.60 ± 0.10 | 0.65 ± 0.10 | 50 |
12.0 | 12.0 ± 0.80 | 0.43 ± 0.10 | 0.60 ± 0.10 | 0.65 ± 0.10 | 50 |
