8mm Silicone Fiberglass Sleeve Brown Red Braided Coated
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xColour | Brown Red | Material | Inner Fiberglass Outside Braided Silicone Rubber |
---|---|---|---|
Size | 8mm | Lead Time | 2days |
Operating Temperature | 180℃ | Feature | RoHS Compliant |
Good Flexibility | Arc Resistance, Corona Resistance | Used For | Light Fitting, Machines, Electronic Instruments, Etc |
Highlight | 8mm Silicone Fiberglass Sleeve,brown Silicone Fiberglass Sleeve,braided silicone coated sleeve |
We are a professional manufacturer of insulating materials. Our factory is located near Shanghai City. Our products have good quality, excellent
price and short delivery time. Hope to be your partner and cooperate for a long time !

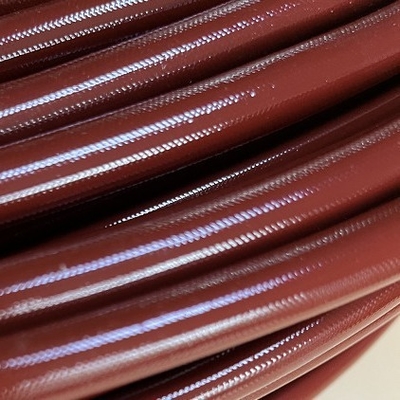

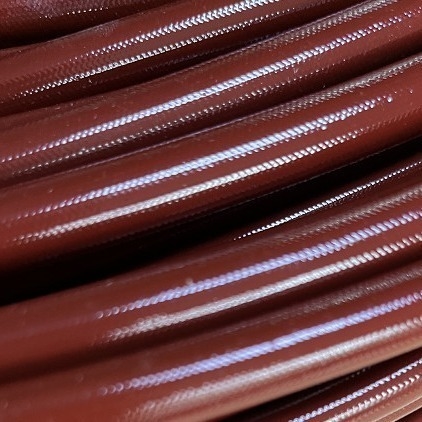

8mm Brown Red Fiberglass Tubing Inner Fiberglass Outside Silicone Rubber
General insulating protection for various household appliances, light fitting, machines, electronic instruments, etc
Features
● Two types: Inner fiberglass outside braided silicone rubber(SRG-N) Inner silicone rubber outside fiberglass braided(SRG-W)
● Operating temperature:-55℃- 200℃
● RoHS compliant; UL approved
● Good flexibility, arc resistance, corona resistance
● Standard color: white (Other colors upon request)
Dimensions
Size | Internal Diameter (mm) | Average Wall Thickness (mm) | Standard Package M/Spool | ||
1500V, 2500V | 4000V | 7000V | |||
0.5 | 0.5 ± 0.30 | 0.20 ± 0.10 | 0.40 ± 0.10 | 0.45 ± 0.10 | 100 |
1.0 | 1.0 ± 0.30 | 0.20 ± 0.10 | 0.40 ± 0.10 | 0.45 ± 0.10 | 100 |
1.5 | 1.5 ± 0.30 | 0.20 ± 0.10 | 0.40 ± 0.10 | 0.45 ± 0.10 | 100 |
2.0 | 2.0 ± 0.30 | 0.20 ± 0.10 | 0.40 ± 0.10 | 0.45 ± 0.10 | 100 |
2.5 | 2.5 ± 0.30 | 0.20 ± 0.10 | 0.40 ± 0.10 | 0.50 ± 0.10 | 100 |
3.0 | 3.0 ± 0.35 | 0.23 ± 0.10 | 0.40 ± 0.10 | 0.50 ± 0.10 | 100 |
3.5 | 3.5 ± 0.35 | 0.23 ± 0.10 | 0.45 ± 0.10 | 0.55 ± 0.10 | 100 |
4.0 | 4.0 ± 0.35 | 0.23 ± 0.10 | 0.45 ± 0.10 | 0.55 ± 0.10 | 100 |
4.5 | 4.5 ± 0.35 | 0.23 ± 0.10 | 0.45 ± 0.10 | 0.55 ± 0.10 | 100 |
5.0 | 5.0 ± 0.45 | 0.30 ± 0.10 | 0.45 ± 0.10 | 0.55 ± 0.10 | 100 |
6.0 | 6.0 ± 0.45 | 0.30 ± 0.10 | 0.50 ± 0.10 | 0.60 ± 0.10 | 100 |
7.0 | 7.0 ± 0.60 | 0.35 ± 0.10 | 0.50 ± 0.10 | 0.60 ± 0.10 | 50 |
8.0 | 8.0 ± 0.60 | 0.35 ± 0.10 | 0.50 ± 0.10 | 0.60 ± 0.10 | 50 |
9.0 | 9.0 ± 0.60 | 0.35 ± 0.10 | 0.50 ± 0.10 | 0.60 ± 0.10 | 50 |
10.0 | 10.0 ± 0.80 | 0.43 ± 0.10 | 0.60 ± 0.10 | 0.65 ± 0.10 | 50 |
12.0 | 12.0 ± 0.80 | 0.43 ± 0.10 | 0.60 ± 0.10 | 0.65 ± 0.10 | 50 |
FAQ
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
