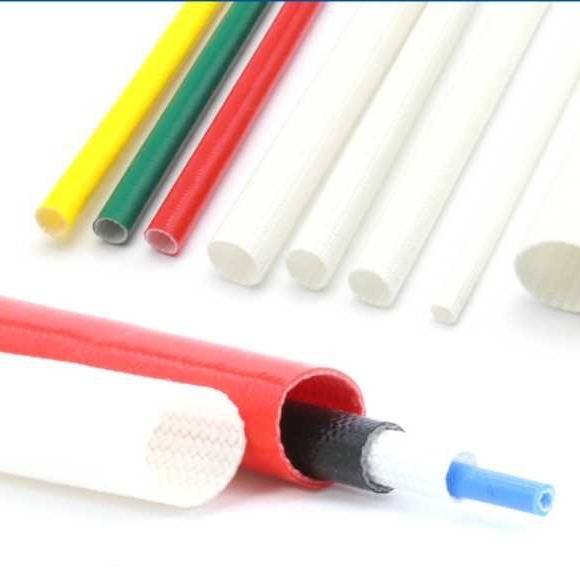

3mm Silicone Fiberglass Sleeve Braided , White Silicone Coated Fiberglass Sleeve
| Place of Origin | China |
|---|---|
| Brand Name | Long |
| Certification | ISO |
| Model Number | 3mm |
| Minimum Order Quantity | 1m |
| Packaging Details | Roll/Carton |
| Delivery Time | 1-9days |
| Payment Terms | T/T, D/P, D/A, L/C, Western Union, MoneyGram |
| Supply Ability | 400000meters per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Colour | White | Material | Inner Fiberglass Outside Braided Silicone Rubber |
|---|---|---|---|
| Size | 3mm | Lead Time | 3days |
| Operating Temperature | -55℃- 200℃ | Feature | RoHS Compliant; UL Approved |
| Good Flexibility | Arc Resistance, Corona Resistance | Used For | Light Fitting, Machines, Electronic Instruments, Etc |
| Highlight | 3mm Silicone Fiberglass Sleeve,Braided Silicone Fiberglass Sleeve,White Silicone Coated Fiberglass Sleeve |
||
Product Description
3mm White Silicone Rubber Braided Tube Inner Fiberglass Outside Braided Silicone Rubber
General insulating protection for various household appliances, light fitting, machines, electronic instruments, etc
Features
● Two types: Inner fiberglass outside braided silicone rubber(SRG-N) Inner silicone rubber outside fiberglass braided(SRG-W)
● Operating temperature:-55℃- 200℃
● RoHS compliant; UL approved
● Good flexibility, arc resistance, corona resistance
● Standard color: white (Other colors upon request)
Dimensions
| Size | Internal Diameter (mm) | Average Wall Thickness (mm) | Standard Package M/Spool | ||
| 1500V, 2500V | 4000V | 7000V | |||
| 0.5 | 0.5 ± 0.30 | 0.20 ± 0.10 | 0.40 ± 0.10 | 0.45 ± 0.10 | 100 |
| 1.0 | 1.0 ± 0.30 | 0.20 ± 0.10 | 0.40 ± 0.10 | 0.45 ± 0.10 | 100 |
| 1.5 | 1.5 ± 0.30 | 0.20 ± 0.10 | 0.40 ± 0.10 | 0.45 ± 0.10 | 100 |
| 2.0 | 2.0 ± 0.30 | 0.20 ± 0.10 | 0.40 ± 0.10 | 0.45 ± 0.10 | 100 |
| 2.5 | 2.5 ± 0.30 | 0.20 ± 0.10 | 0.40 ± 0.10 | 0.50 ± 0.10 | 100 |
| 3.0 | 3.0 ± 0.35 | 0.23 ± 0.10 | 0.40 ± 0.10 | 0.50 ± 0.10 | 100 |
| 3.5 | 3.5 ± 0.35 | 0.23 ± 0.10 | 0.45 ± 0.10 | 0.55 ± 0.10 | 100 |
| 4.0 | 4.0 ± 0.35 | 0.23 ± 0.10 | 0.45 ± 0.10 | 0.55 ± 0.10 | 100 |
| 4.5 | 4.5 ± 0.35 | 0.23 ± 0.10 | 0.45 ± 0.10 | 0.55 ± 0.10 | 100 |
| 5.0 | 5.0 ± 0.45 | 0.30 ± 0.10 | 0.45 ± 0.10 | 0.55 ± 0.10 | 100 |
| 6.0 | 6.0 ± 0.45 | 0.30 ± 0.10 | 0.50 ± 0.10 | 0.60 ± 0.10 | 100 |
| 7.0 | 7.0 ± 0.60 | 0.35 ± 0.10 | 0.50 ± 0.10 | 0.60 ± 0.10 | 50 |
| 8.0 | 8.0 ± 0.60 | 0.35 ± 0.10 | 0.50 ± 0.10 | 0.60 ± 0.10 | 50 |
| 9.0 | 9.0 ± 0.60 | 0.35 ± 0.10 | 0.50 ± 0.10 | 0.60 ± 0.10 | 50 |
| 10.0 | 10.0 ± 0.80 | 0.43 ± 0.10 | 0.60 ± 0.10 | 0.65 ± 0.10 | 50 |
| 12.0 | 12.0 ± 0.80 | 0.43 ± 0.10 | 0.60 ± 0.10 | 0.65 ± 0.10 | 50 |
FAQ
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
