0.4mm Polyolefin Heat Shrink Tubing Irradiated PO Flexible Flame Retardant

0.4mm Polyolefin Heat Shrink Tubing Irradiated PO Flexible Flame Retardant

0.4mm Polyolefin Heat Shrink Tubing Irradiated PO Flexible Flame Retardant

Brand Name:	Long
Model Number:	AWG18-1mm
MOQ:	1m
Price:	0.03
Payment Terms:	T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability:	400000meters per day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Material:

PE-PO

Color:

Black

Shrink Ratio:

Non-shrinkable

Certificate:

RoHS Compliant

Operating Temperature:

90°C

Wall Thickness:

0.4mm

Packing:

200m/roll

MOQ:

1meter

Packaging Details:

Roll/Carton

Supply Ability:

400000meters per day

Highlight:

0.4mm polyolefin heat shrink tubing

,

Irradiated polyolefin heat shrink tubing

,

PO flexible heat shrink tubing

Product Description

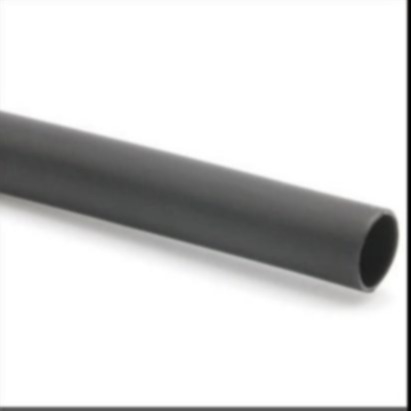

PO Non Shrinkable Irradiated Flexible Flame Retardant Polyolefin Tubing

Non-shrinkable, Irradiated .Flexible

Flame-retardant,Polyolefin Tubing.

Features

Flexible

Flame retardant

Operating temperature:-55°C~+125°C

RoHS compliant.

Dimensions

Size(AWG)	Internal Diameter(mm)	Wall Thickness(mm)	Standard Package (M/Spool)
AWG18	1.00±0.10	0.40±0.06	200
AWG16	1.30±0.10	0.40±0.06	200
AWG14	1.65+0.10	0.40±0.06	200
AWG12	2.10±0.15	0.40±0.06	200
AWG10	2.6010.15	0.50+0.08	200
AWG8	3.30±0.15	0.50±0.08	200
AWG6	4.10±0.20	0.50±0.08	100
AWG4	5.20±0.20	0.50±0.08	100
AWG2	6.50±0.20	0.50±0.08	100
AWGO	8.30±0.30	0.50±0.08	100
3/8〃	9.50±0.40	0.50±0.08	100
7/16〃	11.10±0.40	0.50+0.08	100
1/2〃	12.70±0.40	0.50±0.08	100

Technical Data

I Property	Test Method	Typical Performance I
Tensile strength(MPa)	ASTMD2671	210.4
Ultimate elongation(%)	ASTM D2671	5=200
Water absorption (%)	ASTM D 570	W0.5
Dielectric strength (kv/mm)	ASTM D 149
Volume resistivity (Q-cm)	ASTM D 876	>10¹⁴

0.4mm Polyolefin Heat Shrink Tubing Irradiated PO Flexible Flame Retardant 0
