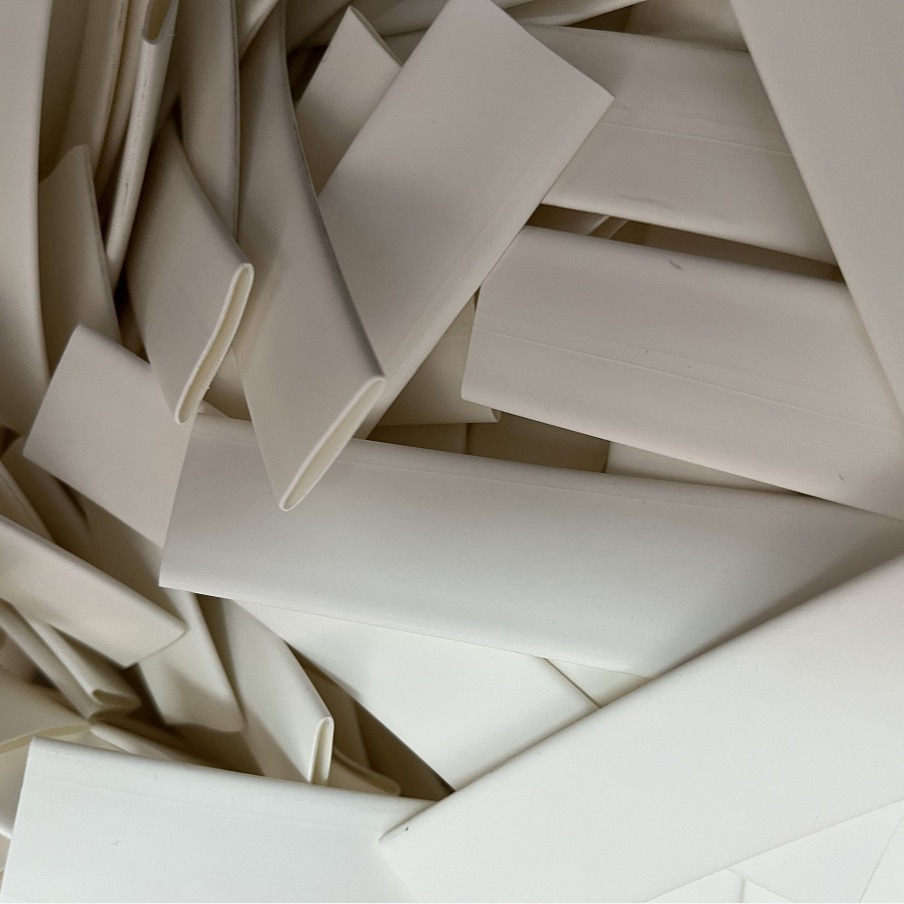

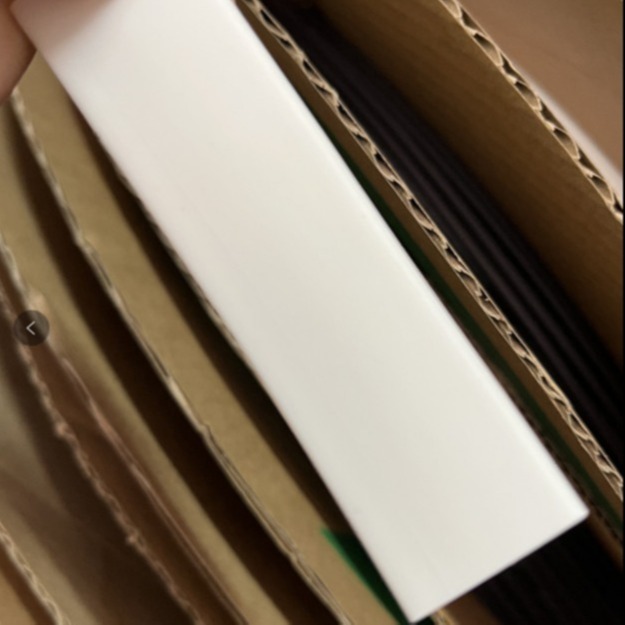

12.7mm White Dual Wall Heat Shrink Tubing , White Adhesive Lined Polyolefin Tubing

Name: 12.7mm White Dual Wall Heat Shrink Tubing , White Adhesive Lined Polyolefin Tubing
Brand: Changzhou Longchuang Insulating Material Co., Ltd.
SKU: 12.7mm
Price: 0.05 USD
Availability: InStock

Brand Name:	Long
Model Number:	12.7mm
MOQ:	1m
Price:	0.05
Payment Terms:	T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability:	400000meters per day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Color:

White

Size:

12.7mm

Wall:

Dual Wall With Adhesive

Shrinkage:

Low Longitudinal Shrinkage

Flame Retardant:

Flame Retardant (out Jacket Only)

Super Sealing Against:

Water, Moisture Or Other Contaminates

Continuous Operating Temperature:

-45°C-125°C

Fully Shrink Temperature Over:

125°C

Packaging Details:

Roll/Carton

Supply Ability:

400000meters per day

Highlight:

12.7mm Dual Wall Heat Shrink Tube

Flame retardant Dual Wall Heat Shrink Tube

white Adhesive Lined Polyolefin Tubing

Product Description

12.7mm White Dual Wall Heat Shrink Tubing With Adhesive Shrink Ratio 3X

Dual Wall Adhesive-Lined Heat-Shrink Polyolefin Tubing .Adhesive lined heat shrink tubing with environmental sealing capability for a wide variety of electrical applications, including automotive and marine wire harness, wire splices, breakouts, and connector-to-cable transitions. The outer polyolefin insulating flame-retardant material and the inner hot-melt adhesive can buffer mechanical strain and have strong sealing performance.Can be used easily.

Features

• 3:1 shrink ratio

• Low longitudinal shrinkage

• Flame retardant (out jacket only)

• Super sealing against water, moisture or other contaminates

• Continuous operating temperature: -45°C-125°C

• Fully shrink temperature over 125°C

Dimensions

Inch	mm	Internal Diameter mm	Internal Diameter mm	Total Wall Thickness mm	Adhesive Thickness mm	Spool Length M/spool
3/32	2.4	2.4	0.8	0.80±0.30	0.40±0.20	200
1/8	3.2	3.2	1.0	0.90±0.30	0.40±0.20	200
3/16	4.8	4.8	1.6	1.05±0.30	0.40±0.20	100
1/4	6.4	6.4	2.2	1.25±0.30	0.45±0.20	100
5/16	7.9	7.9	2.7	1.35±0.30	0.50±0.20	100
3/8	9.5	9.5	3.2	1.45±0.30	0.50±0.20	50
1/2	12.7	12.7	4.2	1.65±0.30	0.50±0.20	1.22OR25M/Roll
5/8	15	15	5.2	1.80±0.30	0.55±0.30	1.22OR25M/Roll
3/4	19.1	19.1	6.3	1.95±0.30	0.60±0.30	1.22OR25M/Roll
1	25.4	25.4	8.5	2.00±0.40	0.60±0.30	1.22OR25M/Roll
1-1/4	30	30	10.2	2.15±0.40	0.65±0.30	1.22OR25M/R0II
1-1/2	39	39	13.5	2.45±0.40	0.60±0.30	1.22OR25M/Roll
2	50	50	17	2.75±0.40	0.75±0.30	1.22OR25M/Roll
5/2	64	64	21	3.05±0.40	0.80±0.30	1.22OR25M/Roll
3	75	75	25	3.05+0.40	1.0510.40	1.22OR25M/Roll
7/2	90	90	30	3.10±0.50	1.05±0.40	1.22OR25M/Roll
4	100	100	34	3.10±0.50	1.05±0.40	1.22OR25M/R0II
5	125	125	42	3.10±0.50	1.10±0.40	1.22OR25M/Roll

Technical Data

I Property	Test Method	Standard	Typical Performance I
Tensile Strength(MPa)	ASTM D2671	W0.4	11.5
Elongation(%)	ASTM D2671	M300	450
Tensile Strength after aging (MPa)	UI224 158°CX168hr	N7.3	8.5
Elongation after aging(%)	UI224 158°CX168hr	N200	350
Flammability	ASTM D2671B	Self-extinguish within 30s	Self-extinguish within 30s
Dieletric strength(kV/mm)	IEC 60243	N15	17.5
Volume resistivity(Q.cm)	IEC 60093	^1X10¹⁴	2.5X10¹⁴

Hot Melt Adhesive Property

Property	Test Method	Stantard I
Water Absorption	ASTM D570	<0.2%
Sofening Point(°C)	ASTM E28	90±5
Strength of pearing(PE)	ASTM D 1000	120N/25mm
Strength of pearing(AL)	ASTM D 1000	80N/25mm
