9.5mm 3.2mm Black Shrink Wrap Tubing ASTM D2671 Dual Wall
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | PE | Internal Diameter Mm After Recovery | 3.2mm |
---|---|---|---|
Shrink Ratio | 3:1 | Wall Thickness | 1.45mm |
Super Sealing Against | Water, Moisture Or Other Contaminates | Continuous Operating Temperature | 20°C |
Fully Shrink Temperature | ^125°C | Compliant | Sony Compliant |
Highlight | 9.5mm black shrink wrap tubing,3.2mm black shrink wrap tubing,ASTM D2671 dual wall shrink tubing |

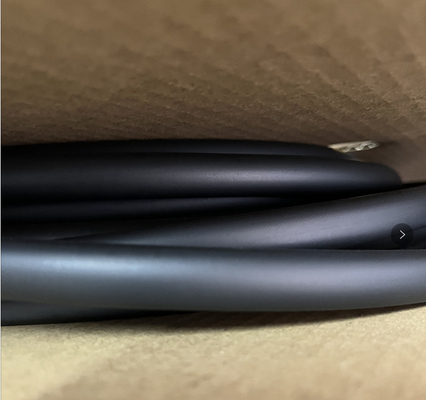

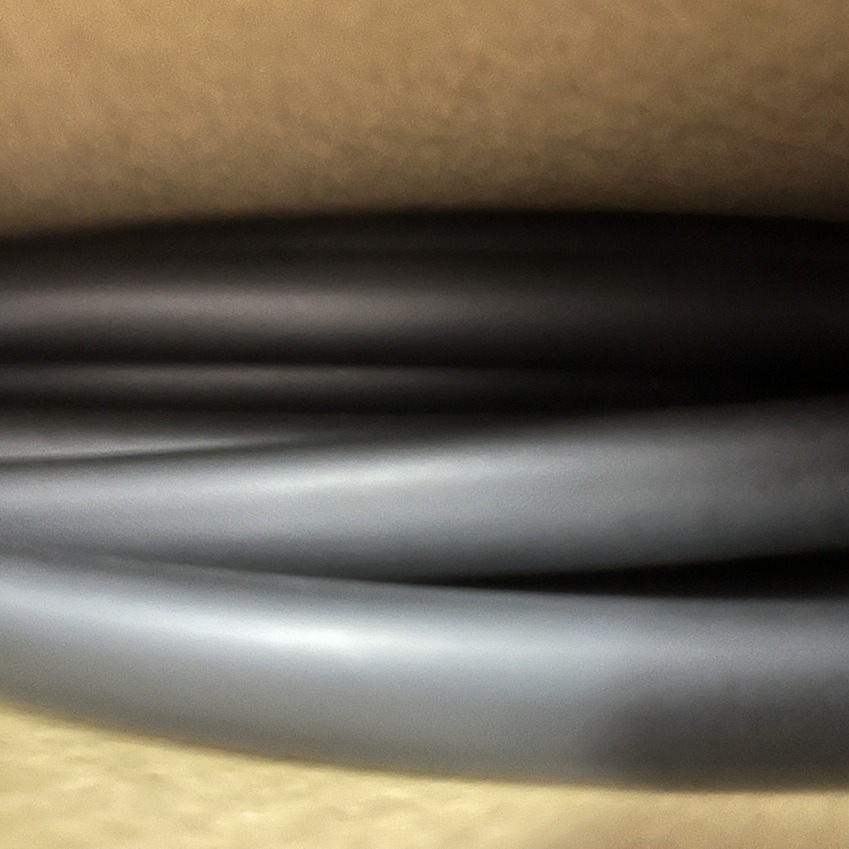

9.5mm Black Dual Wall Heat Shrink Tubing With Environmental Sealing
Adhesive lined heat shrink tubing with environmental sealing capability for a wide variety of electrical applications, including automotive and marine .wire harness, wire splices, breakouts, and connector-to-cable transitions. The environmental protection double wall pipe is composed of soft flame-retardant polyolefin and hot-melt adhesive. Can be used easily.
Features
• 3:1 shrink ratio
• Halogen free
• Super sealing against water, moisture or other contaminates
• Continuous operating temperature:-45°C-125°C
• Fully shrink Temperature:^125°C
Dimensions
Size | Expanded | After Recovery | Standard Package | |||
Inch | mm | Internal Diameter mm | Internal Diameter mm | Total Wall Thickness mm | Adhesive Thickness mm | Spool Length M/spool |
3/32 | 2.4 | 2,4 | 0.8 | 0.85±0.15 | 0.40±0.10 | 200 |
1/8 | 3.2 | 3,2 | 1.0 | 0.95±0.15 | 0.40±0.10 | 200 |
3/16 | 4.8 | 4,8 | 1.6 | 1.10±0.15 | 0.40±0.10 | 100 |
1/4 | 6.4 | 6,4 | 2.2 | 1.20±0.15 | 0.45±0.12 | 100 |
5/16 | 7.9 | 7,9 | 2.7 | 1.35±0.15 | 0.50±0.12 | 100 |
3/8 | 9.5 | 9,5 | 3.2 | 1.45±0.20 | 0.50±0.12 | 50 |
1/2 | 12.7 | 12,7 | 4.2 | 1.70±0.20 | 0.50±0.12 | 1.22OR25M/R0II |
5/8 | 15 | 15 | 5.2 | 1.80±0.20 | 0.55±0.15 | 1.22OR25M/Roll |
3/4 | 19.1 | 19,1 | 6.3 | 2.00±0.20 | 0.55±0.15 | 1.22OR25M/Roll |
1 | 25.4 | 25,4 | 8.5 | 2.10±0.25 | 0.55±0.15 | 1.22OR25M/R0II |
1-1/4 | 30 | 30 | 10.2 | 2.20±0.25 | 0.60±0.15 | 1.22 OR25M/Roll |
1-1/2 | 39 | 39 | 13.5 | 2.40±0.25 | 0.60±0.15 | 1.22OR25M/Roll |
2 | 50 | 50 | 17 | 2.70±0.25 | 0.70±0.15 | 1.22OR25M/R0II |
5/2 | 64 | 64 | 21 | 3.00±0.30 | 0.70±0.15 | 1.22OR25M/Roll |
3 | 75 | 75 | 25 | 3.00±0.30 | 1.00±0.20 | 1.22OR25M/Roll |
7/2 | 90 | 90 | 30 | 3.00±0.30 | 1.00±0.20 | 1.22OR25M/R0II |
4 | 100 | 100 | 34 | 3.00±0.30 | 1.00±0.20 | 1.22OR25M/Roll |
5 | 125 | 125 | 42 | 3.00±0.30 | 1.00±0.20 | 1.22OR25M/Roll |
Technical Data
I Property | Test Method | Standard I |
Tensile Strength(MPa) | ASTM D2671 | >10.4 |
Elongation(%) | ASTM D2671 | >300 |
Tensile Strength after aging (MPa) | UI224 158°CX168hr | N7.3 |
Elongation after aging(%) | UI224 158°CX168hr | 3200 |
Flammability | ASTM D2671B | Self-extinguish within 30s |
Dieletric strength(kV/mm) | IEC 60243 | >15 |
Volume resistivity(Q.cm) | IEC 60093 | ^1X1014 |
Adhesive
Property | Test Method | Standard I |
Water Absorption | ASTM D570 | <0.5 |
Sofening Point(°C) | ASTM E28 | 90±5 |
Strength of pearing(PE) | ASTM D 1000 | 120N/25mm |
Strength of pearing(AL) | ASTM D 1000 | 80N/25mm |
