25.4mm Dual Wall Heat Shrink Tube Adhesive , Black Flexible Polyolefin Heat Shrink Tubing
| Place of Origin | China |
|---|---|
| Brand Name | Long |
| Certification | ISO |
| Model Number | 25.4mm |
| Minimum Order Quantity | 1m |
| Price | Can discussible |
| Packaging Details | Roll/Carton |
| Delivery Time | 1-9days |
| Payment Terms | T/T, D/P, D/A, L/C, Western Union, MoneyGram |
| Supply Ability | 400000meters per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PE+Adhesive | Internal Diameter Mm After Recovery | 8.5 |
|---|---|---|---|
| Shrink Ratio | 3:1 | Wall Thickness | 2.1mm |
| Super Sealing Against | Water, Moisture Or Other Contaminates | Continuous Operating Temperature | 28°C |
| Fully Shrink Temperature | ^125°C | Compliant | Sony Compliant |
| Highlight | 25.4mm Dual Wall Heat Shrink Tube,Adhesive Dual Wall Heat Shrink Tube,black flexible polyolefin heat shrink tubing |
||
Product Description

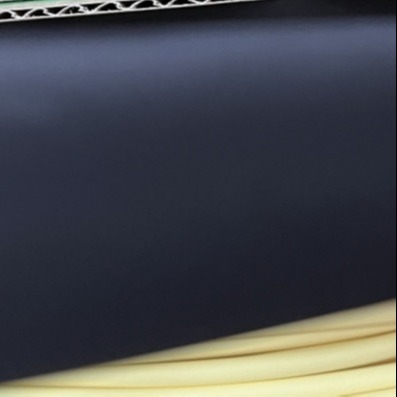

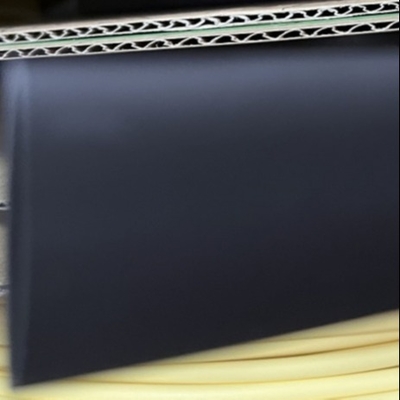

25.4mm Black Dual Wall Heat Shrink Tubing With Adhesive Waterproof
Highly flame retardant , semi-rigid, cross-linked dual wall heat shrink tubing designed for splice sealing and fuse link protection.
Adhesive lined heat shrink tubing with environmental sealing capability.
wire harness, wire splices, breakouts, and connector-to-cable transitions.
Features
• 3:1 shrink ratio
• Halogen free
• Super sealing against water, moisture or other contaminates
• Continuous operating temperature:-45°C-125°C
• Fully shrink Temperature:^125°C
• Shrink ratio: 3:1
• Sony compliant
Dimensions
| Size | Expanded | After Recovery | Standard Package | |||
| Inch | mm | Internal Diameter mm | Internal Diameter mm | Total Wall Thickness mm | Adhesive Thickness mm | Spool Length M/spool |
| 3/32 | 2.4 | 2,4 | 0.8 | 0.85±0.15 | 0.40±0.10 | 200 |
| 1/8 | 3.2 | 3,2 | 1.0 | 0.95±0.15 | 0.40±0.10 | 200 |
| 3/16 | 4.8 | 4,8 | 1.6 | 1.10±0.15 | 0.40±0.10 | 100 |
| 1/4 | 6.4 | 6,4 | 2.2 | 1.20±0.15 | 0.45±0.12 | 100 |
| 5/16 | 7.9 | 7,9 | 2.7 | 1.35±0.15 | 0.50±0.12 | 100 |
| 3/8 | 9.5 | 9,5 | 3.2 | 1.45±0.20 | 0.50±0.12 | 50 |
| 1/2 | 12.7 | 12,7 | 4.2 | 1.70±0.20 | 0.50±0.12 | 1.22OR25M/R0II |
| 5/8 | 15 | 15 | 5.2 | 1.80±0.20 | 0.55±0.15 | 1.22OR25M/Roll |
| 3/4 | 19.1 | 19,1 | 6.3 | 2.00±0.20 | 0.55±0.15 | 1.22OR25M/Roll |
| 1 | 25.4 | 25,4 | 8.5 | 2.10±0.25 | 0.55±0.15 | 1.22OR25M/R0II |
| 1-1/4 | 30 | 30 | 10.2 | 2.20±0.25 | 0.60±0.15 | 1.22 OR25M/Roll |
| 1-1/2 | 39 | 39 | 13.5 | 2.40±0.25 | 0.60±0.15 | 1.22OR25M/Roll |
| 2 | 50 | 50 | 17 | 2.70±0.25 | 0.70±0.15 | 1.22OR25M/R0II |
| 5/2 | 64 | 64 | 21 | 3.00±0.30 | 0.70±0.15 | 1.22OR25M/Roll |
| 3 | 75 | 75 | 25 | 3.00±0.30 | 1.00±0.20 | 1.22OR25M/Roll |
| 7/2 | 90 | 90 | 30 | 3.00±0.30 | 1.00±0.20 | 1.22OR25M/R0II |
| 4 | 100 | 100 | 34 | 3.00±0.30 | 1.00±0.20 | 1.22OR25M/Roll |
| 5 | 125 | 125 | 42 | 3.00±0.30 | 1.00±0.20 | 1.22OR25M/Roll |
Technical Data
| I Property | Test Method | Standard I |
| Tensile Strength(MPa) | ASTM D2671 | >10.4 |
| Elongation(%) | ASTM D2671 | >300 |
| Tensile Strength after aging (MPa) | UI224 158°CX168hr | N7.3 |
| Elongation after aging(%) | UI224 158°CX168hr | 3200 |
| Flammability | ASTM D2671B | Self-extinguish within 30s |
| Dieletric strength(kV/mm) | IEC 60243 | >15 |
| Volume resistivity(Q.cm) | IEC 60093 | ^1X1014 |
Adhesive
| Property | Test Method | Standard I |
| Water Absorption | ASTM D570 | <0.5 |
| Sofening Point(°C) | ASTM E28 | 90±5 |
| Strength of pearing(PE) | ASTM D 1000 | 120N/25mm |
| Strength of pearing(AL) | ASTM D 1000 | 80N/25mm |
FAQ
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
