2.5mm White Heat Shrink Sleeving

Name: 2.5mm White Heat Shrink Sleeving
Brand: Changzhou Longchuang Insulating Material Co., Ltd.
SKU: 2.5mm
Price: 0.03 USD
Availability: InStock

Brand Name:	Long
Model Number:	2.5mm
MOQ:	1m
Price:	0.03
Payment Terms:	T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability:	400000meters per day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Size:

2.5

Color:

White

Halogen:

Halogen Free

Flame:

Flame Retardant

If Burning:

Low Smoke Generation If Burning

Operating:

Continuous Operating

Temperature:

100°C

Fully Shrink Temperature:

110°C

Packaging Details:

Roll/Carton

Supply Ability:

400000meters per day

Highlight:

2.5mm White Heat Shrink Sleeving

2:1 White Heat Shrink Sleeving

flexible fire retardant tubing

Product Description

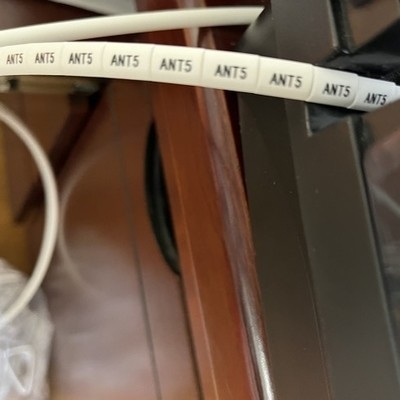

2.5mm White Singel Wall Halogen Free Flexible Heat Shrink Tubing

Ultra thin wall halogen free.flexible without adhesive . High quality heat shrink tubing with shrink ratio 2:1 from China manufacture.

We can do it with low moq and short lead time.

Our factory is located in China Jiangsu Changzhou city.

Features

• Ultra thin wall without glue

• Flexible

• Halogen free

• Flame retardant

• low smoke generation if burning

• Continuous operating

• Temperature:-55°C to 125°C

• Fully shrink temperature: 110°C

• RoHS and Sony compliant

Dimensions

Size		As Supplied	After Recovery		Standard Package
Inch	mm	Internal Diameter mm	Internal Diameter mm	Wall Thickness mm	Spool Length M/spooF
1/16	1.0	1.4±0.2	0.65	0.20	200
	1.5	1.9+0.2	0.85	0.20	200
3/32	2.0	2.4±0.2	1.00	0.22	200
	2.5	2.9±0.2	1.30	0.25	200
1/8	3.0	3.4±0.2	1.50	0.28	200
	3.5	3.9±0.2	1.80	0.28	200
	4.0	4.410.2	2.00	0.30	200
3/16	4.5	4.9±0.2	2.30	0.30	100
	5.0	5.5±0.2	2.5	0.32	100
1/4	6.0	6.5±0.2	3.0	0.32	100
5/16	7.0	7.5±0.3	3.5	0.32	100
	8.0	8.5±0.3	4.0	0.32	100
3/8	9.0	9.5+0.3	4.5	0.35	100
	10.0	10.5±0.3	5.0	0.35	100
	11.0	11.5±0.3	5.5	0.40	100
1/2	12.0	12.5±0.3	6.0	0.40	100
	13.0	13.5±0.3	6.5	0.40	100
	14.0	14.5±0.3	7.0	0.40	100
5/8	15.0	15.5±0.4	7.5	0.40	100
	16.0	16.5±0.4	8.0	0.40	100
	17.0	17.5±0.4	8.5	0.40	100
3/4	18.0	18.5±0.4	9.0	0.42	100
	20.0	20.5±0.5	10.0	0.45	100
	22.0	22.5±0.5	11.0	0.45	100
1	25.0	25.5±0.5	12.5	0.45	50

Technical Data

I Property I	Test Method	Typical Performance I
Tensile strength(MPa)	ASTM D 2671	>10.4
Ultimate elongation(%)	ASTM D 2671	>200
Tensile strength after heat aged (Mpa)	158°CX168h	N7.3
Ultimate elongation after heat aged (%)	158°CX168h	^100
Longitudinal change(%)	ASTM D 2671	-5%~+5%
Flammability	ASTM D 2671 C method	VW-1
Dielectric strength (kV/mm)	ASTM D 149	>15
Volume resistivity (Q-cm)	ASTM D 876	^10¹⁴
