12mm White Single Wall Heat Shrink Tubing Wrap 2X Ratio

  • 12mm White Single Wall Heat Shrink Tubing Wrap 2X Ratio
  • 12mm White Single Wall Heat Shrink Tubing Wrap 2X Ratio
Place of Origin China
Brand Name Long
Certification ISO
Model Number 12mm
Minimum Order Quantity 1m
Price Can discussible
Packaging Details bag/Carton
Delivery Time 1-9days
Payment Terms T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability 400000meters per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Wall Ultra Thin Wall Color White
Size 12mm After Recovery 6.0mm
Feature Halogen Free Retardant Flame Retardant
Continuous Operating Temperature 111°C Compliant RoHS And Sony Compliant
High Light

12mm Single Wall Heat Shrink Tubing

,

6.0mm Single Wall Heat Shrink Tubing

,

2x white heat shrink wrap
Leave a Message
Product Description

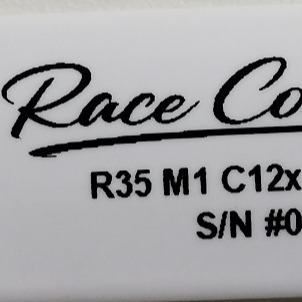

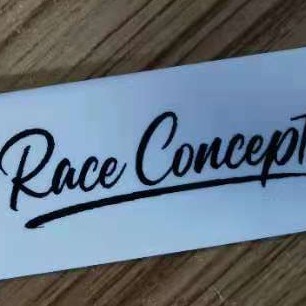

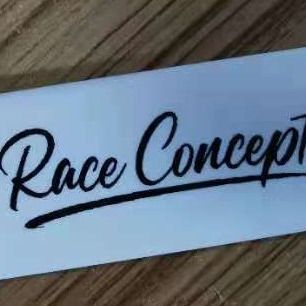

12mm White Heat Shrink Tubing With Your Logo Printing Shrink Ratio 2X





Thin wall halogen free,flexible

heat shrink tubing.

Features

•  Ultra thin wall

•  Flexible



•  Halogen free



•  Flame retardant



•  low smoke generation if burning



•  Continuous operating



Temperature:-55°C to 125°C



•  Fully shrink temperature: 125°C



•  RoHS and Sony compliant





Dimensions





Size As Supplied After Recovery Standard Package
Inch mm Internal Diameter mm Internal Diameter Max mm Wall Thickness Nom mm Spool Length M/spool
3/64 0.8 1.1±0.2 0.50 0.22 200
1/16 1.0 1.5±0.2 0.65 0.28 200
  1.5 2.0±0.2 0.85 0.32 200
3/32 2.0 2.5±0.2 1.00 0.35 200
  2.5 3.0+0.2 1.30 0.38 200
1/8 3.0 3.5±0.2 1.50 0.40 200
  3.5 4.0±0.2 1.80 0.42 200
  4.0 4.5±0.2 2.00 0.45 200
3/16 4.5 5.0±0.2 2.30 0.50 100
  5.0 5.5±0.2 2.5 0.55 100
1/4 6.0 6.5±0.2 3.0 0.55 100
5/16 7.0 7.5±0.3 3.5 0.55 100
  8.0 8.5+0.3 4.0 0.60 100
3/8 9.0 9.5±0.3 4.5 0.60 100
  10.0 10.5±0.3 5.0 0.60 100
  11.0 11.5±0.3 5.5 0.60 100
1/2 12.0 12.510.3 6.0 0.60 100
  13.0 13.5±0.3 6.5 0.65 100
  14.0 14.510.3 7.0 0.65 100
5/8 15.0 15.5±0.4 7.5 0.70 100
  16.0 16.5±0.4 8.0 0.70 100
  17.0 17.5+0.4 8.5 0.70 100
3/4 18.0 19.010.5 9.0 0.80 100
  20.0 21.0±0.5 10.0 0.80 100
  22.0 23.010.5 11.0 0.80 100
1 25.0 26.010.5 12.5 0.90 50
  28.0 29.010.5 14.0 0.90 50
1-1/4 30.0 31.5±1.0 15.0 0.95 50
  35.0 36.5±1.0 17.5 1.00 50
1-1/2 40.0 41.5+1.0 20.0 1.00 50
  45.0 46.511.0 22.5 1.00 25
2 50.0 >50 25.0 1.00 25
  60.0 N60 31.0 1.30 25
  70.0 >70 36.0 1.30 25
3 80.0 )80 41.0 1.46 25
  90.0 >90 46.0 1.46 25
4 100.0 ^100 51.0 1.46 25
5 120.0 >120 61.0 1.56 25
6 150.0 >150 76.0 1.56 25
7 180.0 >180 91.0 1.56 25





Technical Data



I Property I Test Method Typical Performance I
Tensile strength(MPa) ASTM D 2671 5=10.4
Ultimate elongation(%) ASTM D 2671 2200
Tensile strength after heat aged (Mpa) 158°CX168h N7.3
Ultimate elongation after heat aged (%) 158°CX168h ^100
Longitudinal change(%) ASTM D 2671 -5%~+5%
Flammability ASTM D 2671 C method VW-1
Dielectric strength (kV/mm) ASTM D 149 M15
Volume resistivity (Q-cm) ASTM D 876 mio"
