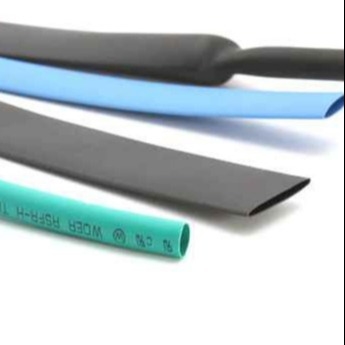

3.0mm Single Wall Heat Shrink Tubing Halogen Free , Light Blue Thin Wall Heat Shrink Tube

Name: 3.0mm Single Wall Heat Shrink Tubing Halogen Free , Light Blue Thin Wall Heat Shrink Tube
Brand: Changzhou Longchuang Insulating Material Co., Ltd.
SKU: 3.0mm
Price: 0.03 USD
Availability: InStock

Brand Name:	Long
Model Number:	3.0mm
MOQ:	1m
Price:	0.03
Payment Terms:	T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability:	400000meters per day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Size:

3.0mm

Color:

Light Blue

Halogen:

Halogen Free

Flame:

Flame Retardant

If Burning:

Low Smoke Generation If Burning

Operating:

Continuous Operating

Temperature:

104°C

Fully Shrink Temperature:

110°C

Packaging Details:

Roll/Carton

Supply Ability:

400000meters per day

Highlight:

3.0mm Single Wall Heat Shrink Tubing

Halogen Free Single Wall Heat Shrink Tubing

Light Blue Thin Wall Heat Shrink Tube

Product Description

3.0mm Light Blue Thin Wall Halogen Free Flexible Heat Shrink Tubing

Ultra thin wall halogen free.flexible well.

Heat shrink tubing with low moq and short time from China manufacture.

Features

• Thin wall without adhesive can be used easily.

• Flexible

• Halogen free

• Flame retardant

• Continuous operating

• Temperature:-55°C to 125°C

• Fully shrink temperature: 110°C

• RoHS and Sony compliant

Dimensions

Size		As Supplied	After Recovery		Standard Package
Inch	mm	Internal Diameter mm	Internal Diameter mm	Wall Thickness mm	Spool Length M/spooF
1/16	1.0	1.4±0.2	0.65	0.20	200
	1.5	1.9+0.2	0.85	0.20	200
3/32	2.0	2.4±0.2	1.00	0.22	200
	2.5	2.9±0.2	1.30	0.25	200
1/8	3.0	3.4±0.2	1.50	0.28	200
	3.5	3.9±0.2	1.80	0.28	200
	4.0	4.410.2	2.00	0.30	200
3/16	4.5	4.9±0.2	2.30	0.30	100
	5.0	5.5±0.2	2.5	0.32	100
1/4	6.0	6.5±0.2	3.0	0.32	100
5/16	7.0	7.5±0.3	3.5	0.32	100
	8.0	8.5±0.3	4.0	0.32	100
3/8	9.0	9.5+0.3	4.5	0.35	100
	10.0	10.5±0.3	5.0	0.35	100
	11.0	11.5±0.3	5.5	0.40	100
1/2	12.0	12.5±0.3	6.0	0.40	100
	13.0	13.5±0.3	6.5	0.40	100
	14.0	14.5±0.3	7.0	0.40	100
5/8	15.0	15.5±0.4	7.5	0.40	100
	16.0	16.5±0.4	8.0	0.40	100
	17.0	17.5±0.4	8.5	0.40	100
3/4	18.0	18.5±0.4	9.0	0.42	100
	20.0	20.5±0.5	10.0	0.45	100
	22.0	22.5±0.5	11.0	0.45	100
1	25.0	25.5±0.5	12.5	0.45	50

Technical Data

I Property I	Test Method	Typical Performance I
Tensile strength(MPa)	ASTM D 2671	>10.4
Ultimate elongation(%)	ASTM D 2671	>200
Tensile strength after heat aged (Mpa)	158°CX168h	N7.3
Ultimate elongation after heat aged (%)	158°CX168h	^100
Longitudinal change(%)	ASTM D 2671	-5%~+5%
Flammability	ASTM D 2671 C method	VW-1
Dielectric strength (kV/mm)	ASTM D 149	>15
Volume resistivity (Q-cm)	ASTM D 876	^10¹⁴
