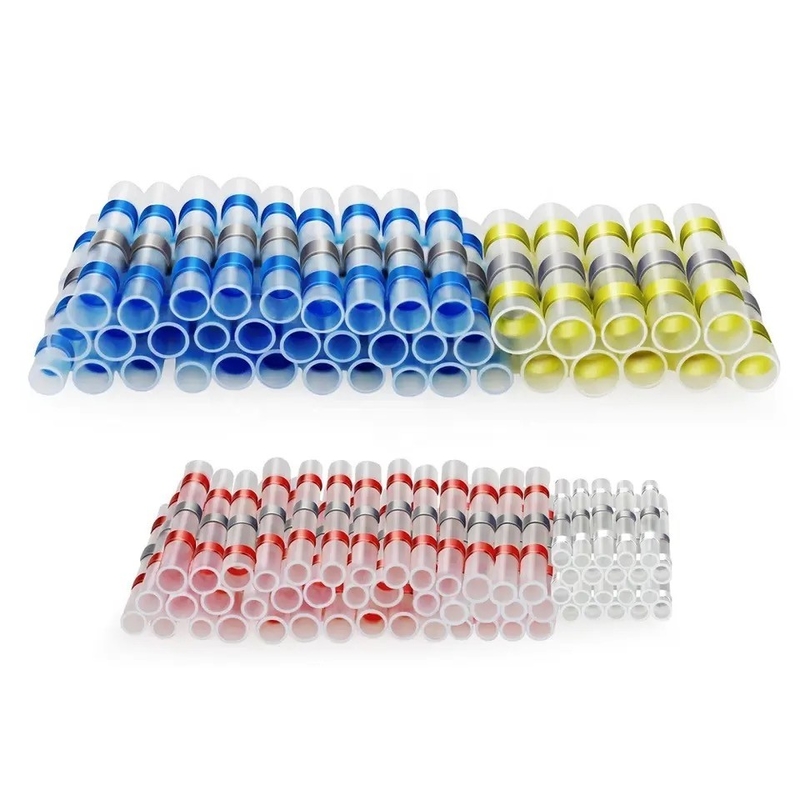

Butt Heat Shrink Wire Connectors Kit Red Yellow And Blue
| Place of Origin | China |
|---|---|
| Brand Name | Long |
| Certification | ISO9001 |
| Model Number | SBRS |
| Minimum Order Quantity | 1piece |
| Price | 0.029 |
| Packaging Details | bag/Carton |
| Delivery Time | 1-9days |
| Payment Terms | T/T, D/P, D/A, L/C, Western Union, MoneyGram |
| Supply Ability | 400000pieces per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PE+Copper+Tin | Colour | Red, Yellow And Blue |
|---|---|---|---|
| Feature | Water Proof | Certificate | ISO9001&ROHS |
| MOQ | 100Pieces | Lead Time | 1-3days |
| Expanded Min(mm) | 4.8mm | Recovered Max(mm) | 1.2mm |
| Highlight | Butt Heat Shrink Wire Connectors,PE Blue Heat Shrink Connectors,Butt Heat Shrink Connector |
||
Product Description
Butt Heat Shrink Wire Connectors Kit Red Yellow And Blue
Color AWG Wire Range Copper Thickness
Red 22 - 18 0.5-1.0 mm2 0.8mm
Blue 16 – 14 1.5-2.5 mm2 0.8mm
Yellow 12 - 10 4.0-6.0 mm2 1.0mm
Features
● Exceptional clarity for visual confirmation of seal
● Seal& protects against water, corrosive compounds, moisture& contaminants
● Tough, durable heat shrink tubing resists abrasion, crimp tool damage& splitting
● Shrinks 40% faster than nylon, preventing.
● Inner adhesive bonds to plastics, rubbers & metals
● Meets& conforms to OEM wiring specifications for installation& repairs
● Continuous operating temperature:-45℃- 125℃
● Minimum shrinking temperature: 90℃
|
|
Size | Tube Diameter |
Color |
Standard Package |
|||
| AWG | mm2 | Expanded Min(mm) | Recovered Max(mm) | Length (mm) | |||
| SBRS-DZ-1 | 22-18 | 0.5-1.0 | 4.8 | 1.2 | 35.0 | red | 1000pc/bag |
| SBRS-DZ-2 | 16-14 | 1.5-2.5 | 5.5 | 1.4 | 35.0 | blue | 1000pc/bag |
| SBRS-DZ-3 | 12-10 | 4.0-6.0 | 6.5 | 1.5 | 42.0 | yellow | 500pc/bag |
Technical Data
| Property | Test Method | Stantard | Typical Performance |
| Tensile Strengtn(MPa) | ASTM D2671 | ≥14 | 16 |
| Elongation(%) | ASTM D2671 | ≥300 | 450 |
| Tensile Strengtn after aging (MPa) | UL224 158℃X168hr | ≥7.3 | 15 |
| Elongation after aging(%) | UL224 158℃X168hr | ≥200 | 350 |
| Dieletric strength(kv/mm) | IEC243 | ≥15 | 17.5 |
| Volume resistivity(Ω.cm) | ASTM D876 | ≥1X1014 | 2.5X1014 |
Adhesive
| Property | Test Method | Stantard |
| Water Absorption | ASTM D570 | ≤0.2% |
| Sofening Point(℃) | ASTM E28 | 90±5 |
| Strength of pearing(PE) | ASTM D 1000 | 120N/25mm |
| Strength of pearing(AL) | ASTM D 1000 | 80N/25mm |
