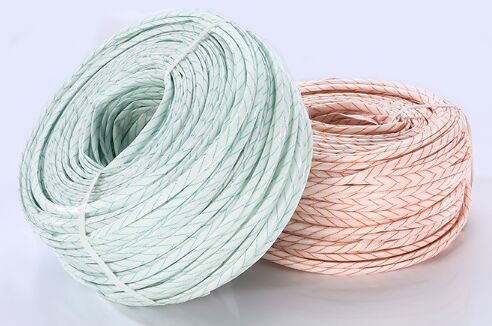

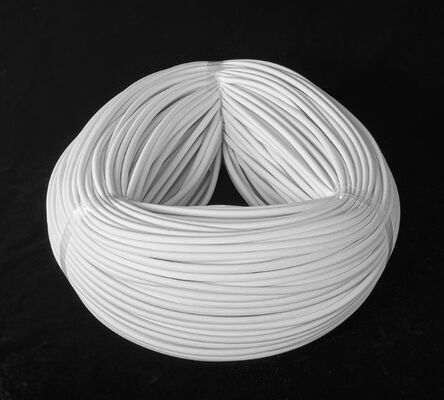

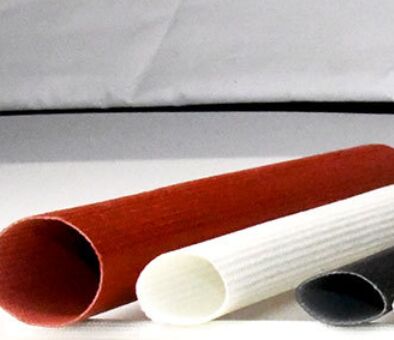

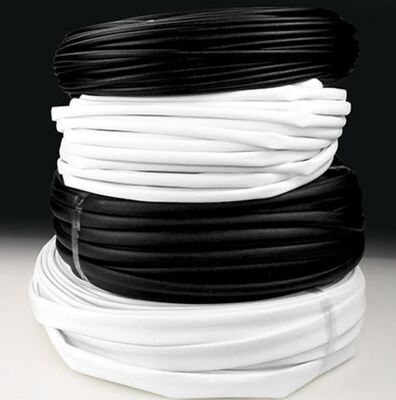

UL Certified 1.5kV–10kV Electrical Insulation Flame Retardant UL VW-1 Silicone Fiberglass Braided Sleeve for Motor & Transformer

Brand Name:	None
Model Number:	10mm
MOQ:	10
Price:	negotiable
Payment Terms:	T/T
Supply Ability:	400000m/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Temperature Resistance:

-60°C To +200°C

Electrical Insulation:

1.5kV–10kV

Flexibility:

Superior Flexibility ,softness And Durability.

Mechanical Strength:

≤3×ID

Flame Retardant:

UL VW-1 ,self-extinguishing

Chemical Resistance:

Resists Oils, Fuels, Acids, Ozone, And UV

Aging:

Long-term Anti-aging

Lightweight:

Lighter Than Rubber/metal Hoses

Packaging Details:

carton

Supply Ability:

400000m/day

Highlight:

UL certified silicone fiberglass sleeve

flame retardant electrical insulation sleeve

motor transformer silicone braided sleeve

Product Description

The inner-fiberglass outer-braided fiberglass tube (also known as BWFRP: Braided Wound Fiberglass Reinforced Plastic Tube) is a high-performance composite pipe made of alkali-free fiberglass and high-performance epoxy resin.

Manufactured via a continuous braiding-impregnation-pultrusion process, the tube has a 120° braiding angle for balanced tensile strength and flexibility. Key properties:

High ring stiffness & tensile strength
Excellent corrosion resistance & electrical insulation
Flame retardant (Oxygen index >28)
Lightweight & easy installation

Applications

Power & Communication Engineering
- Cable protection for urban power grids, subway & rail transit systems
- Communication ducting for underground networks (anti-settlement)
Electrical & Electronics
- Insulation sleeves for motors, transformers, inverters & inductors
- Wire harness protection in automotive & industrial equipment
Industrial & Chemical
- Corrosive media pipelines in chemical, pharmaceutical & wastewater treatment plants
- High-temperature insulation & thermal protection for industrial piping
Infrastructure & Construction
- Cable conduits for new energy charging piles & urban renewal projects
- Protection pipes for optical fiber & power cables in municipal engineering
